Description

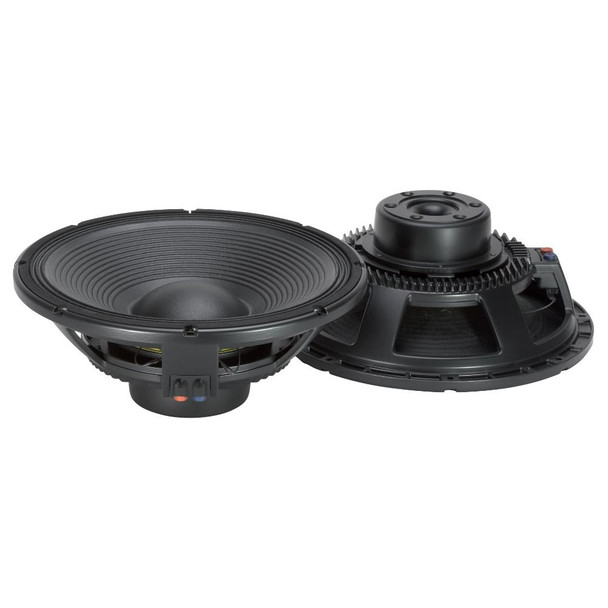

Incredibly linear frequency response characteristics, the highest power handling of any comparable 15-inch neodymium transducer,the lower power compression. The LF15N401 uses a fibre loaded cone assembly along with a high excursion triple roll,constant geometry surround. This combination provides remarkable strength and a peak to peak maximum excursion of 52mm. The unique Dual-forced air venting system guarantee a very efficient voice coil ventilation for minimum power compression and higher power handling.
Features
- 4-inch, fiberglass inside/outside copper voice coil
- 1800W continuous program power handling
- 97 dB Sensitivity
- 35 Hz – 1.5 kHz Frequency range
- Dual-forced air ventilation and 15mm top plate for minimum power compression
- Dual spider design with silicon based dampening control
- Triple-roll surround and corrugated straight cone geometry
Why We Like This
It combines efficient neodymium design with strong power handling and controlled excursion for reliable low-frequency performance.
FAQs
Q: What type of applications is this woofer suitable for?
It is designed for professional systems requiring accurate and efficient low-frequency output.
Q: How does it reduce power compression?
The dual forced-air ventilation system improves airflow and cooling.
Q: What is the frequency range?
35 Hz to 1.5 kHz.
Based in Chicago, IL, Gear Club Direct supports audio professionals with reliable components for high-performance sound systems.
Tech Specs
Nominal Diameter: |
15 inch / 381 mm |
Rated Impedance: |
8 ohm |
Program Power (watt): |
1800 W |
Power handling capacity: |
900 W |
Sensitivity: |
97.0 dB |
Frequency range: |
35 - 1500 Hz |
Effective piston diameter: |
340 mm / 13.39 inch |
Max. Excursion Before Damage: |
52 mm / 2.05 inch |
Minimum Impedance (ohm): |
6.3 ohm |
Voice Coil Diameter: |
4.0 inch / 102 mm |
Voice Coil Winding Material: |
Copper |
Voice Coil Length: |
25 mm / 0.98 inch |
Number of layers: |
2 |
Kind of layers: |
inside/outside |
Top Plate Thickness: |
15 mm / 0.59 inch |
Cone Design: |
Straight |
Surround Material: |
Polycotton |
Surround Design: |
Triple roll |
Magnets: |
Neodymium |
Dual-force air ventilation: |
Yes |
Spider: |
03 |
