Description

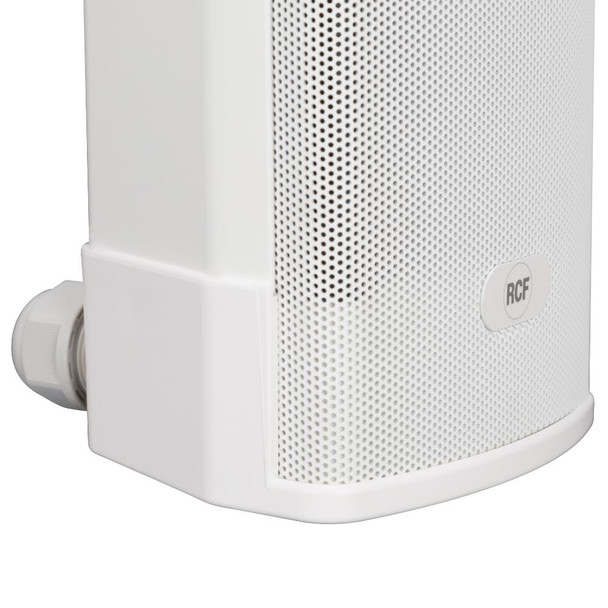

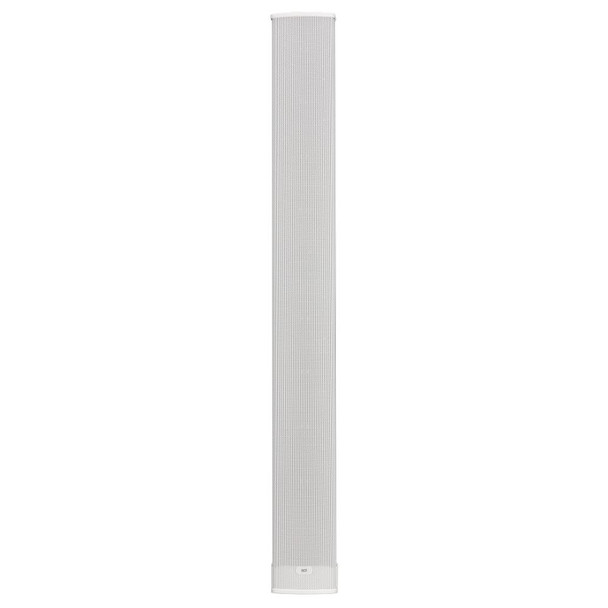

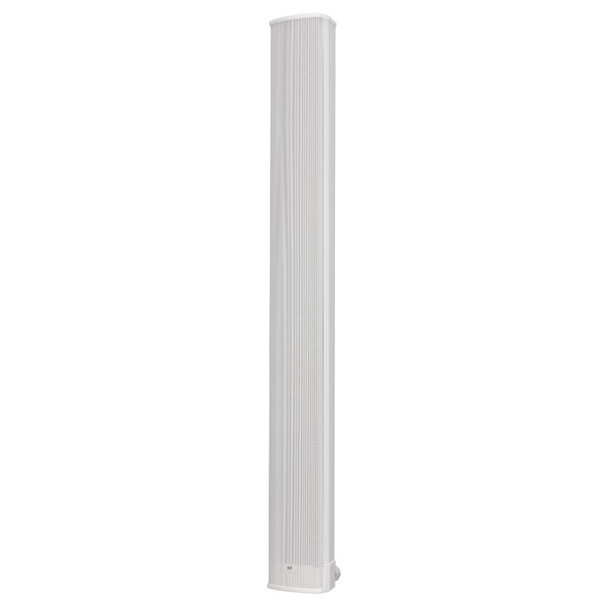

CS 6940EN is a compact and elegant two-way column speaker providing highly intelligible voice reproduction, and suitable for installation into places of worship, stations, subways and many other environments. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Thanks to its IP66 protection grade, it can be installed both indoor and outdoor.
Features
- 8 x 3" fullrange transducers with 0.75" dome tweeter.
- Power selectable (100 V): 40 W – 20 W – 10 W – 5 W – 2.5 W.
- 95 dB sensitivity.
- Colour white RAL 9003.
- Aluminium body, grille and bracket.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP66.
Why We Like This
With more drivers and higher output than smaller column models, it’s ideal for larger spaces where clarity and coverage are critical.
FAQs
Q: What type of system is this speaker designed for?
It is designed for 100V line distributed audio systems.
Q: Can it be used outdoors?
Yes. It features an IP66 rating for dust and water resistance.
Q: Is it suitable for speech-heavy environments?
Yes. It is optimized for high intelligibility and voice clarity.
Based in Chicago, IL, Gear Club Direct supports installers and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Acoustical specifications: |
Frequency Response (-10dB) 140 Hz - 20000 Hz Max SPL @ 1m 109 dB Max SPL @ 4m 97 dB Horizontal coverage angle 194° Vertical coverage angle 30° System Sensitivity 95 dB System Sensitivity 1W @ 4m 83 dB |
Power section: |
Amplification Full Range Power Handling 40 W Peak Power Handling 160 W PEAK Protections Thermal fuse Recommended Amplifiers DXT 3000, DXT 4000, DXT 7000 |
Transducers: |
Dome Tweeter 1 x 0.75'' Fullrange 8 x 3.0'' |
Input/Output section: |
Input connectors Ceramic screw terminals Output connectors Ceramic screw terminals Constant Voltage Transformer 70/100 V Power selection 1 40 W - 250 ohm Power selection 2 20 W - 500 ohm Power selection 3 10 W - 1000 ohm |
Standard compliance: |
IP protection grade IP 66 Safety agency CE compliant EN54-24 certified: Yes CPR number 1488-CPR-0490/W |
Dimensions: |
39.17" x 4.49" x 3.78" |
Weight: |
15.43 lbs |
