Description

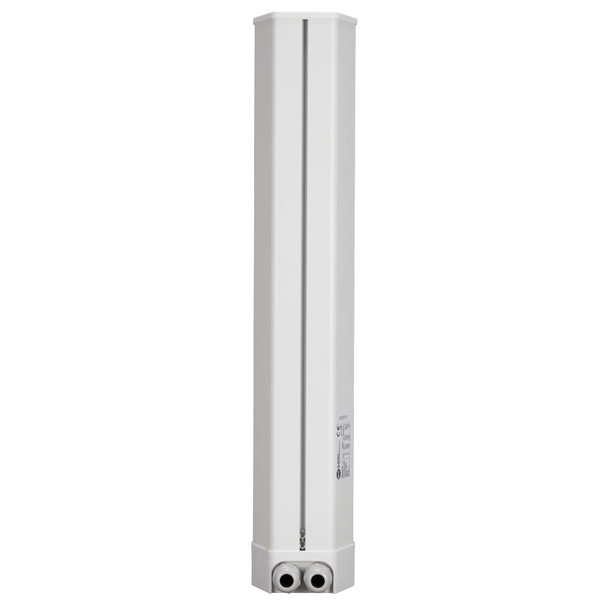

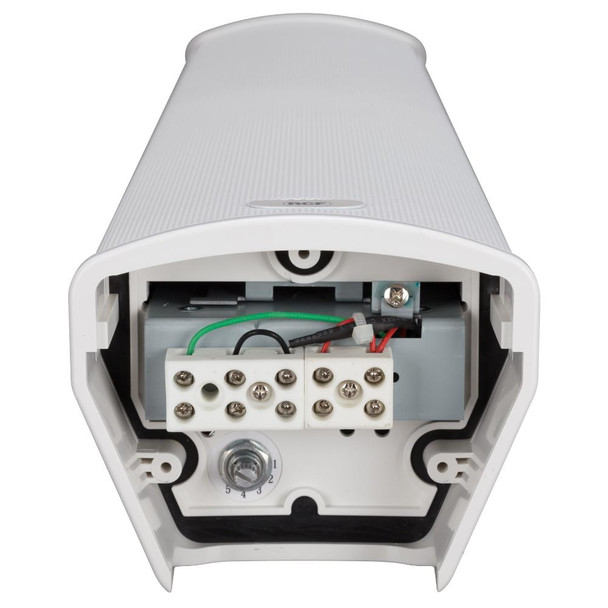

CS 6520EN is a compact and elegant two-way column speaker providing highly intelligible voice reproduction, and suitable for installation into places of worship, stations, subways and many other environments. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Thanks to its IP66 protection grade, it can be installed both indoor and outdoor.
Features
- 4 x 3" fullrange transducers with 0.75" dome tweeter.
- Power selectable (100 V): 20 W – 10 W – 5 W – 2.5 W – 1.25 W.
- 93 dB sensitivity.
- Colour white RAL 9003.
- Aluminium body, grille and bracket.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP66.
Why We Like This
Its column design and high intelligibility make it a go-to solution for speech-focused environments, especially where outdoor durability is required.
FAQs
Q: What type of system is this speaker designed for?
It is designed for 100V line distributed audio systems.
Q: Can it be used outdoors?
Yes. It features an IP66 rating for dust and water resistance.
Q: Is it suitable for speech applications?
Yes. It is optimized for high intelligibility in voice reproduction.
Based in Chicago, IL, Gear Club Direct supports installers and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Acoustical specifications: |
Frequency Response (-10dB) 140 Hz - 20000 Hz Max SPL @ 1m 105 dB Max SPL @ 4m 93 dB Horizontal coverage angle 185° Vertical coverage angle 47° System Sensitivity 93 dB System Sensitivity 1W @ 4m 81 dB |
Power section: |
Amplification Full Range Power Handling 20 W Peak Power Handling 80 W PEAK Protections Thermal fuse Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000 |
Transducers: |
Dome Tweeter 1 x 0.75'' Fullrange 4 x 3.0'' |
Input/Output section: |
Input connectors Ceramic screw terminals Output connectors Ceramic screw terminals Constant Voltage Transformer 70/100 V Power selection 1 20 W - 500 ohm Power selection 2 10 W - 1000 ohm Power selection 3 5 W - 2000 |
Dimensions: |
24.41" x 4.49" x 3.78" |
Weight: |
9.26 lbs |
