Description

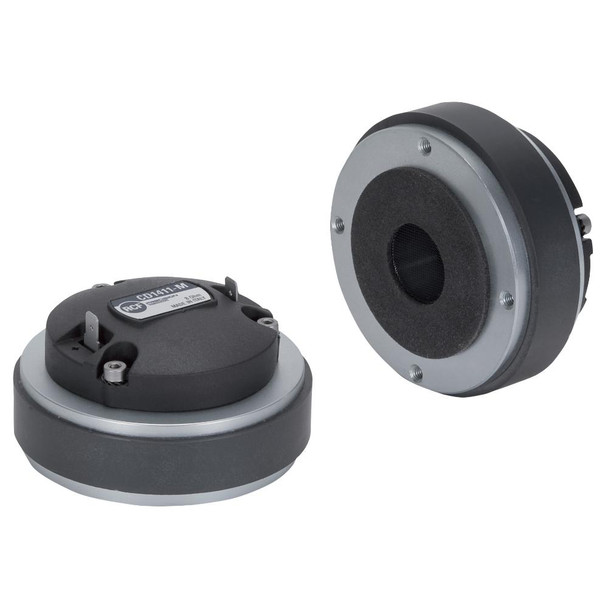

The CD1411-M is a high performance 1.5-inch diaphragm compression driver with a 1.0 inch exit throat featuring a single piece, low compression, radial phase plug. The diaphragm and suspension are precision formed from Mylar. The CD1411-M is a very compact size, versatile driver for professional applications.
Features
- 1.5-inch Diaphragm, 1-inch Exit Throat
- 50W continuous program power handling
- Frequency range: 1500Hz - 20kHz
- Optimized geometry radial phase plug
- Very compact size for array applications
- Ceramic magnet assembly
- Mylar diaphragm assembly
Why We Like This
It offers compact size with reliable high-frequency performance for array and small-format systems.
FAQs
Q: What type of systems is this driver designed for?
It is suitable for compact speaker systems and array applications.
Q: What material is used for the diaphragm?
Mylar diaphragm and suspension.
Q: What is the frequency range?
1500 Hz to 20 kHz.
Based in Chicago, IL, Gear Club Direct supports audio professionals with reliable components for high-performance sound systems.
Tech Specs
Exit Throat Diameter: |
1.0 inch / 25 mm |
Program Power (watt): |
50 W |
Power handling capacity: |
25 W |
Sensitivity: |
108 dB |
Frequency range: |
1500 - 20000 Hz |
Minimum Impedance (ohm): |
7.00 ohm |
Voice Coil Diameter: |
1.5 inch / 38 mm |
Voice Coil Winding Material: |
Edgewound Aluminum |
Voice Coil Former Design: |
Straight - Kapton |
Number of layers: |
1 |
Kind of layers: |
outside |
Flux Density: |
1.6 T |
Phase Plug Design: |
10 radial slots |
Phase Plug Material: |
PP Composite |
Magnetics: |
Ceramic |
Diaphragm Material: |
Mylar |
Suspension Material: |
Mylar |
