Description

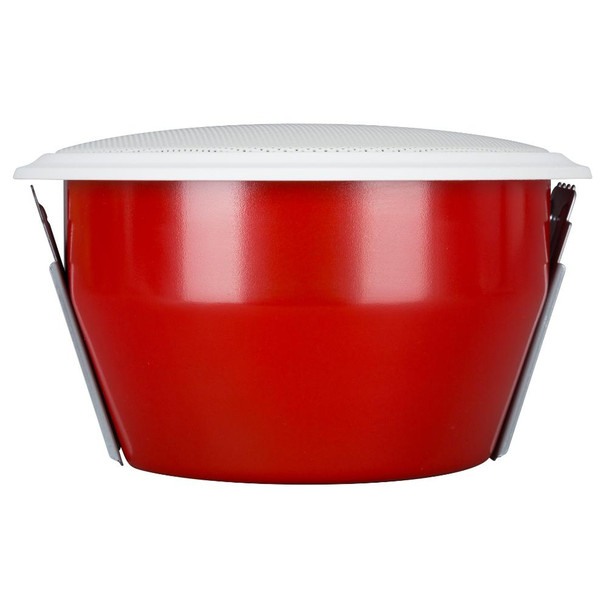

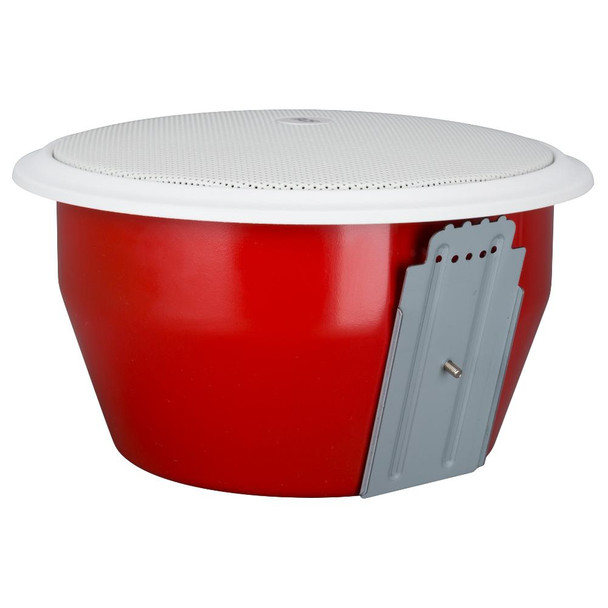

PL 70EN is a ceiling speaker featuring a flameproof steel back can, designed for recess installation into ceilings or panels. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Cables inside speaker made using flameproof leads.
Features
- 6" fullrange transducer.
- Power selectable (100 V): 6 W – 3 W – 1.5 W – 0.75 W.
- 93 dB sensitivity.
- Colour white RAL 9003.
- Steel frame, grille and back can.
- In/out ceramic terminal block.
- Thermal fuse protection.
Why We Like This
The larger 6" driver combined with fire-rated construction makes it ideal for installations that need both stronger output and strict safety compliance.
FAQs
Q: What is the benefit of the 6" driver compared to smaller models?
It provides slightly higher output and improved low-frequency response.
Q: Is this speaker suitable for emergency systems?
Yes. It is designed for voice alarm applications and high-temperature environments.
Q: What type of system does it require?
It is designed for 100V line distributed audio systems.
Based in Chicago, IL, Gear Club Direct supports installers and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Frequency Response (-10dB): |
230 Hz - 20000 Hz |
Max SPL @ 1m: |
99 dB |
Max SPL @ 4m: |
87 dB |
Coverage angle: |
131° |
System Sensitivity: |
93 dB |
System Sensitivity 1W @ 4m: |
81 dB |
Amplification: |
Full Range |
Nominal Impedance: |
8 ohm |
Power Handling: |
6 W |
Peak Power Handling: |
24 W PEAK |
Protections: |
Thermal fuse |
Recommended Amplifiers: |
DXT 3000, DXT 4000, DXT 7000 |
Fullrange: |
1 x 6.0'' |
Input connectors: |
Ceramic screw terminals |
Output connectors: |
Ceramic screw terminals |
Constant Voltage Transformer: |
100 V |
Power selection 1: |
6 W - 1667 ohm |
Power selection 2: |
3 W - 3333 ohm |
Power selection 3: |
1.5 W - 6667 ohm |
Power selection 4: |
0.75 W - 13333 ohm |
Dimensions: |
5.39" x 4.88" x 9.06" |
Weight: |
4.48 lbs |
