Description

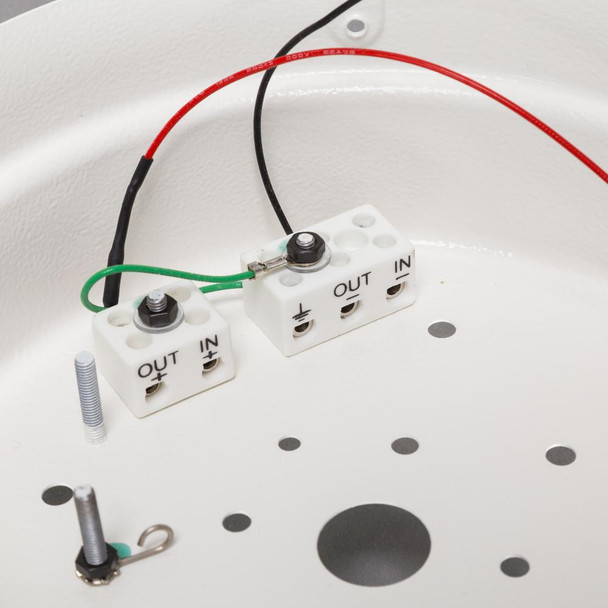

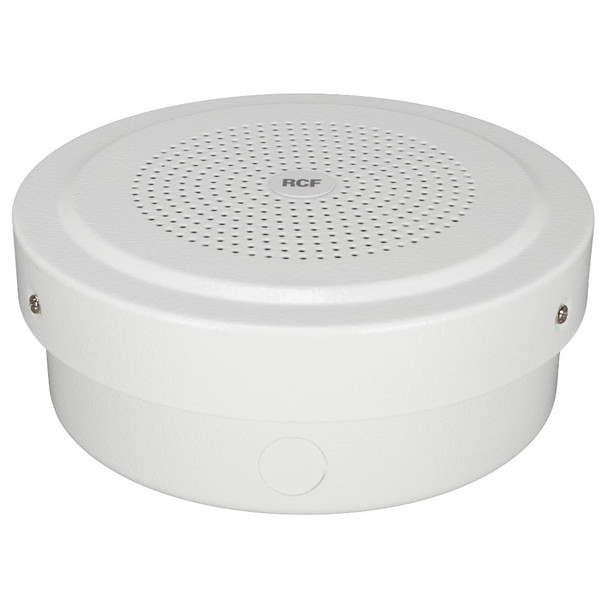

DU 60EN is a universal speaker designed for wall and ceiling installation. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Cables inside speaker made using flameproof leads.
Features
- 5" fullrange transducer.
- Power selectable (100 V): 6 W – 3 W – 1.5 W – 0.75 W.
- 94 dB sensitivity.
- Colour white RAL 9016.
- Steel body and grille.
- In/out ceramic terminal block.
- Thermal fuse protection.
Why We Like This
It combines discreet ceiling installation with high intelligibility and safety-focused design—ideal for emergency and public address systems.
FAQs
Q: What type of system is this speaker designed for?
It is designed for 100V line distributed audio and voice alarm systems.
Q: Is it suitable for emergency applications?
Yes. It is built for high-temperature environments and alarm messaging.
Q: How is it installed?
It supports flush or semi-flush ceiling mounting for a clean installation.
Based in Chicago, IL, Gear Club Direct supports installers and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Frequency Response (-10dB): |
100 Hz - 20000 Hz |
Max SPL @ 1m: |
100 dB |
Max SPL @ 4m: |
88 dB |
Coverage angle: |
180° |
System Sensitivity: |
94 dB |
System Sensitivity 1W @ 4m: |
82 dB |
Power Handling: |
6 W |
Peak Power Handling: |
24 W PEAK |
Protections: |
Thermal fuse |
Recommended Amplifiers: |
DXT 3000, DXT 4000, DXT 7000 |
Fullrange: |
1 x 5.0'' |
Input connectors: |
Ceramic screw terminals |
Output connectors: |
Ceramic screw terminals |
Constant Voltage Transformer: |
100 V |
Power selection 1: |
6 W - 1667 ohm |
Power selection 2: |
3 W - 3333 ohm |
Power selection 3: |
1.5 W - 6667 ohm |
Dimensions (Depth x Diameter): |
2.95" x 7.68" |
Weight: |
3.55 lbs |
