Description

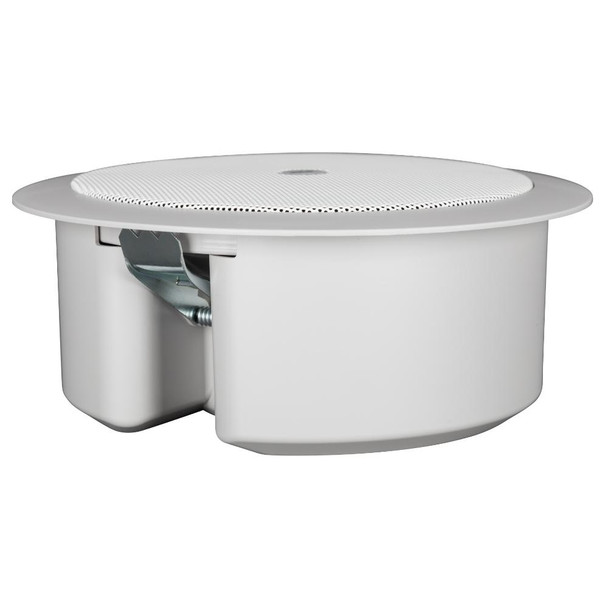

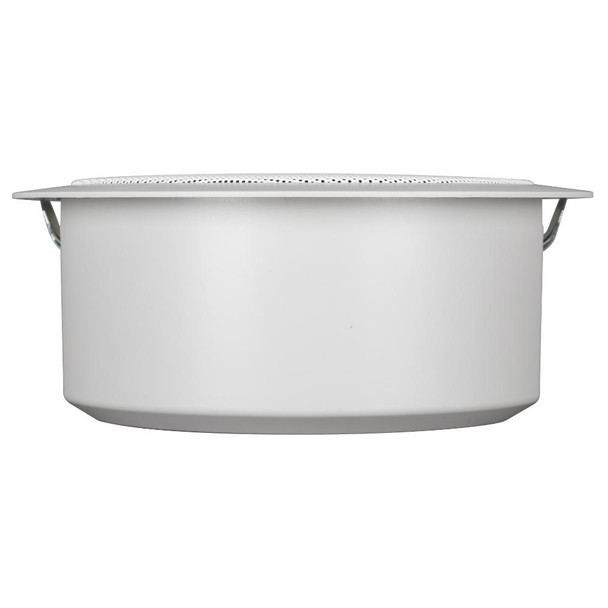

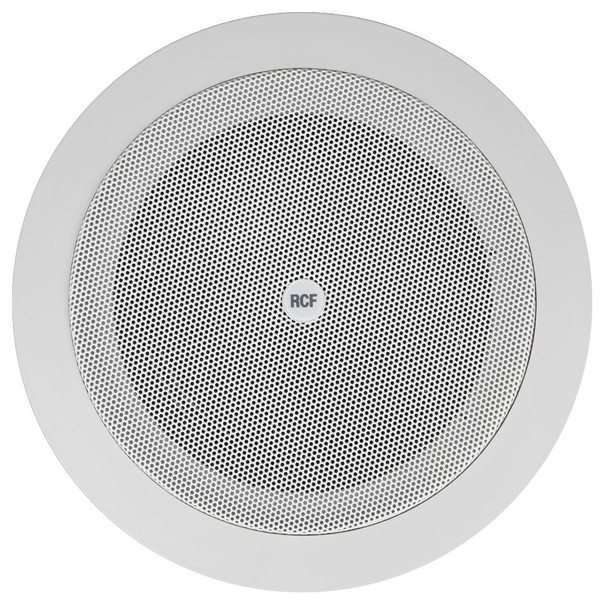

PLP 50EN is a ceiling speaker featuring a flameproof plastic back can, designed for recess installation into ceilings or panels. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Cables inside speaker made using flameproof leads.
Features
- 5" fullrange transducer.
- Power selectable (100 V): 6 W – 3 W – 1.5 W.
- 93 dB sensitivity.
- Colour white RAL 9016.
- Plastic frame and back can, steel grille.
- In/out ceramic terminal block.
- Thermal fuse protection.
Why We Like This
It offers a lighter alternative to metal back-can speakers while maintaining safety compliance for voice alarm systems.
FAQs
Q: What is the difference between plastic and metal back cans?
Plastic back cans reduce weight while still offering fire-resistant protection, while metal versions provide maximum durability.
Q: Is this speaker suitable for emergency systems?
Yes. It is designed for voice alarm applications and high-temperature environments.
Q: What type of system does it require?
It is designed for 100V line distributed audio systems.
Based in Chicago, IL, Gear Club Direct supports installers and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Frequency Response (-10dB): |
130 Hz - 15000 Hz |
Max SPL @ 1m: |
101 dB |
Max SPL @ 4m: |
89 dB |
Coverage angle: |
165° |
System Sensitivity: |
93 dB |
System Sensitivity 1W @ 4m: |
81 dB |
Amplification: |
Full Range |
Power Handling: |
6 W |
Peak Power Handling: |
24 W PEAK |
Protections: |
Thermal fuse |
Recommended Amplifiers: |
DXT 3000, DXT 4000, DXT 7000 |
Fullrange: |
1 x 5.0'' |
Input connectors: |
Ceramic screw terminals |
Output connectors: |
Ceramic screw terminals |
Constant Voltage Transformer: |
100 V |
Power selection 1: |
6 W - 1667 ohm |
Power selection 2: |
3 W - 3333 ohm |
Power selection 3: |
1.5 W - 6667 ohm |
Cabinet/Case Material: |
Plastic |
Grille: |
Steel |
Dimensions: |
2.8" x 2.6" x 6.89" |
Weight: |
1.46 lbs |
