Description

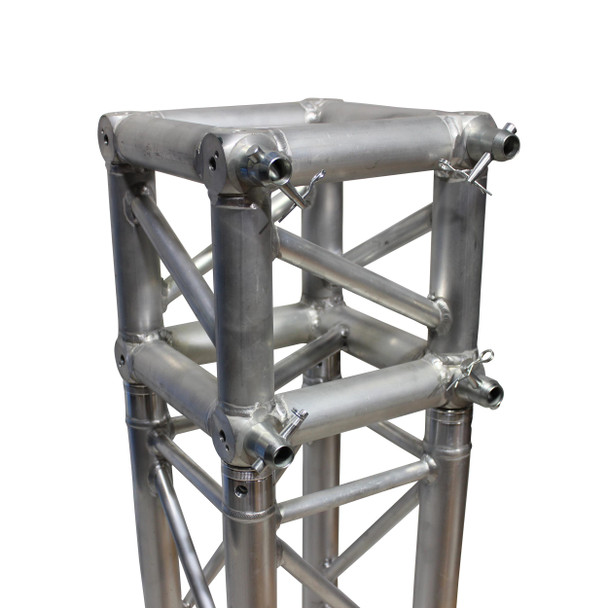

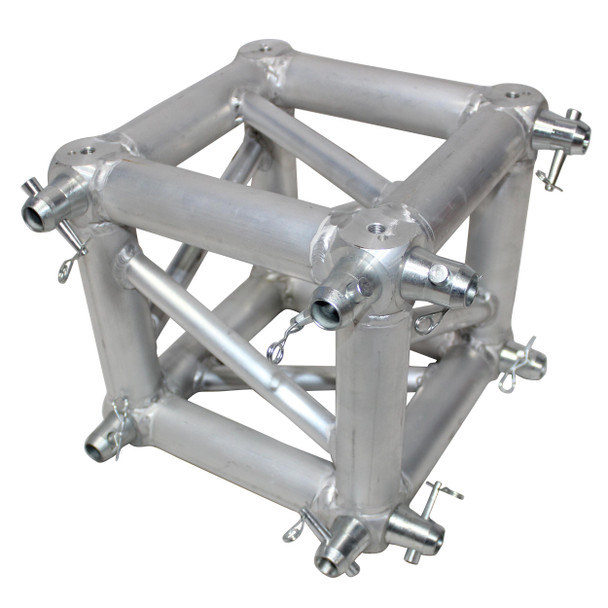

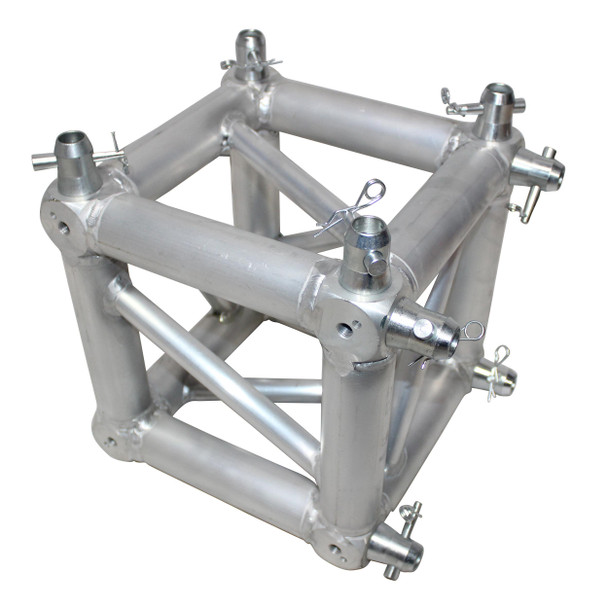

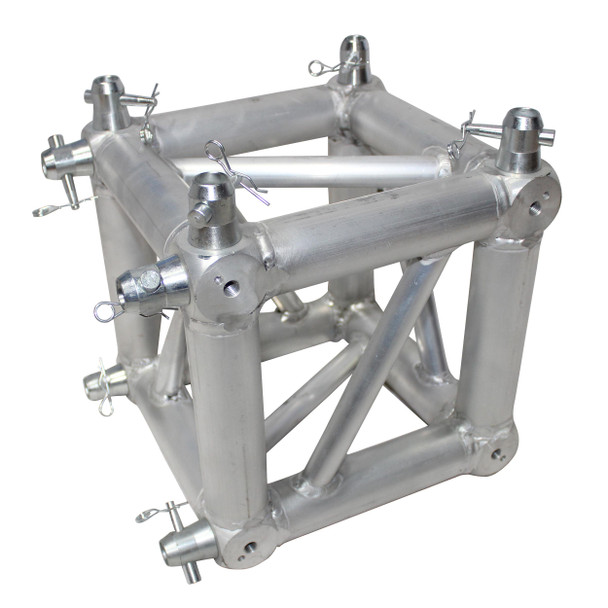

The ProX XT-JB6W-2W Square Truss Junction Block is a universal connecting point for F34 trusses, and it's equipped with connecting hardware for use with ProX XT F34 square truss components. It features 2" outer diameter tubing and 3/4" diagonal bracing. It has XT Series 3mm thick tube walls, this truss junction block is strong and can be used for many applications. It is built to the highest standards of safety and performance.

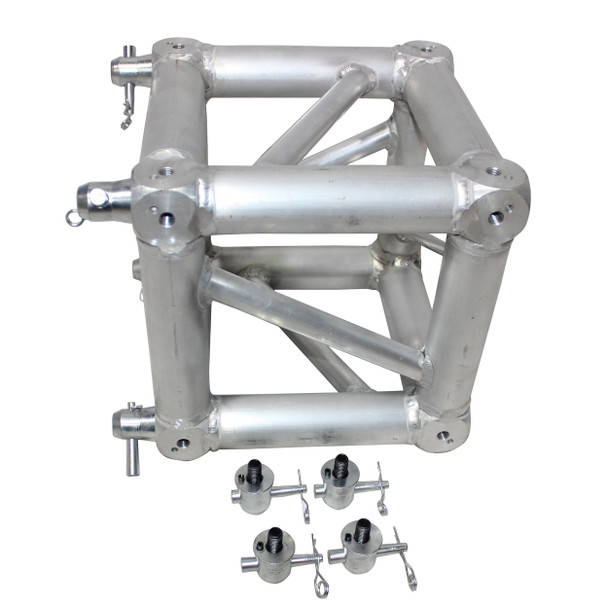

8 Half Conical couplers included, additional conical couplers can be added for more utility. (Sold Separately XT-CA-103)
At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.
- Tolerance Free Standard Conical connector
- Main tube wall thickness of .11in
XT-SQ SERIES DIMENSIONS:
- Height: 11.42in / 290mm
- Width: 11.42in / 290mm
- Weight: 21lb per 3.28 ft / 9,5kg per meter
- Main Tube: 2in / 50mm
- Wall Thickness: .11in / 3mm
- Braces: .75in / 20mm
Features
- Manufactured in our Own Factory!
- Material: EN-AWT6 6082 Aluminum
- TUV Certified Aluminium Welding
Why We Like This
This junction block adds flexibility when designing truss systems by allowing multiple connection directions from a single point. It’s a practical component for building custom layouts with compatible F34 trussing.
FAQs
Q: What is this junction block used for?
A: It serves as a central connection point to join multiple F34 truss segments in different directions.
Q: Is it compatible with other truss brands?
A: Yes, it uses a standard conical connector system compatible with other brands of the same size and style.
Q: Does it include connection hardware?
A: Yes, it includes eight half conical couplers. Additional couplers can be purchased separately if needed.
Based in Chicago, Gear Club Direct supports event professionals, production teams, and installers with reliable truss and staging solutions every day.
Tech Specs
Exterior Dimensions: |
11.45"H x 11.45"W x 11.45"L |
Weight: |
17.00 lbs |
