Description

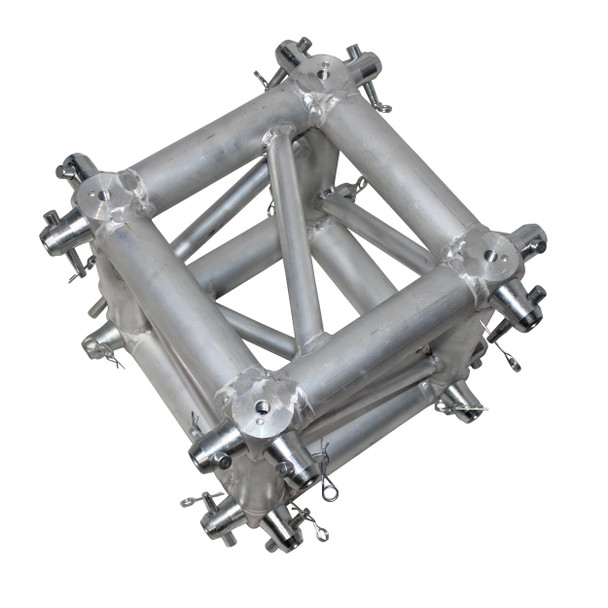

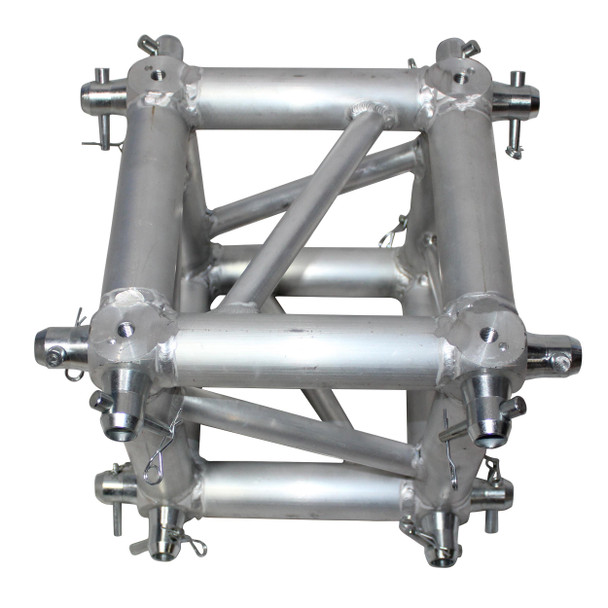

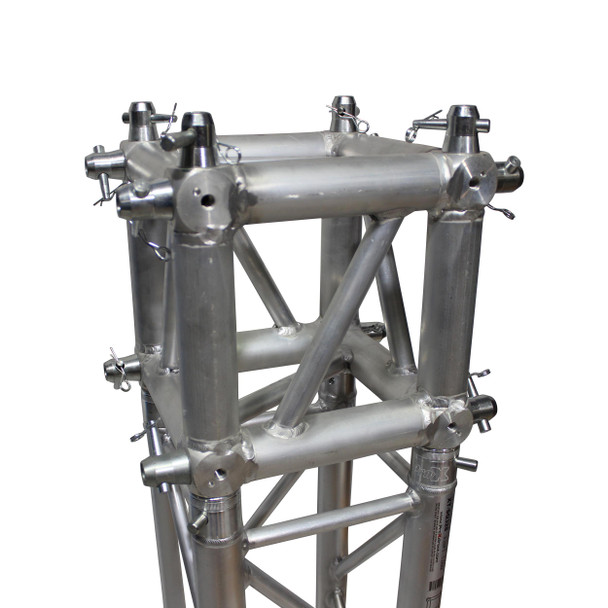

The ProX XT-JB6W-4W Square Truss Junction Block is a universal connecting point for F34 trusses, and it's equipped with connecting hardware for use with ProX XT F34 square truss components. It features 2" outer diameter tubing and 3/4" diagonal bracing. It has XT Series 3mm thick tube walls, this truss junction block is strong and can be used for many applications. It is built to the highest standards of safety and performance.
16 Half Conical couplers included, additional conical couplers can be added for more utility. (Sold Separately XT-CA-103P)
Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.
- Tolerance Free Standard Conical connector
- Main tube wall thickness of .11in
XT-SQ SERIES DIMENSIONS:
- Height: 11.42in / 290mm
- Width: 11.42in / 290mm
- Weight: 21lb per 3.28 ft / 9,5kg per meter
- Main Tube: 2in / 50mm
- Wall Thickness: .11in / 3mm
- Braces: .75in / 20mm
Features
- Manufactured in our Own Factory!
- Material: EN-AWT6 6082 Aluminum
- TUV Certified Aluminium Welding
Why We Like This
Including 16 couplers provides added flexibility during setup, making it easier to build complex truss layouts without needing extra hardware right away.
FAQs
Q: What makes this different from other junction blocks?
A: This version includes 16 half conical couplers, offering more connection hardware for expanded setup options.
Q: Is it compatible with other truss brands?
A: Yes, it uses a standard conical connector system compatible with other truss systems of the same size and style.
Q: What is this used for?

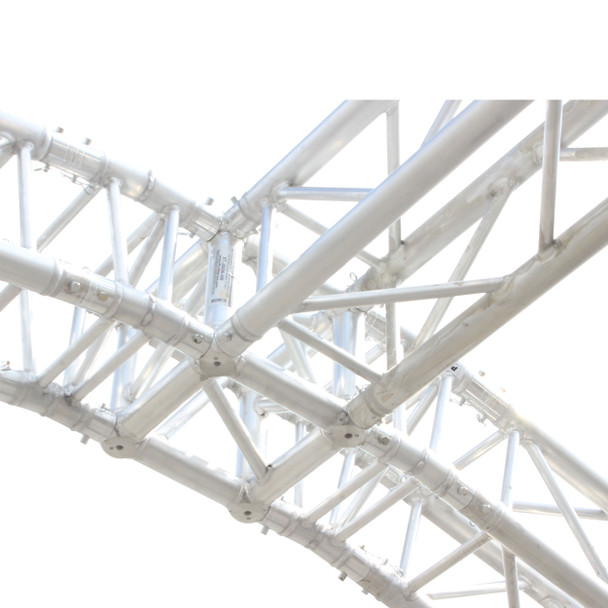

A: It acts as a central connection point for joining multiple truss segments in different directions within F34 systems.
Based in Chicago, Gear Club Direct supports event professionals, production teams, and installers with reliable truss and staging solutions every day.
Tech Specs
Exterior Dimensions: |
11.45"H x 11.45"W x 11.45"L |
Weight: |
17.00 lbs |
