Description

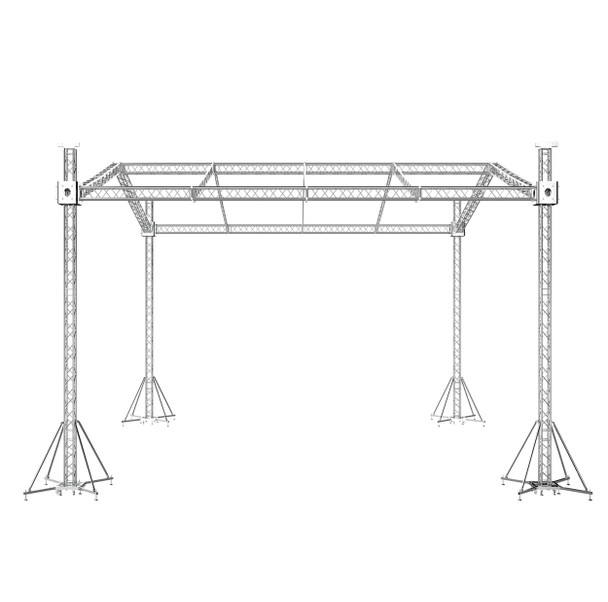

The ProX XTP-GS322823-PRB3-12D Stage Roofing System with Speaker Wings is 30'W x 20'L x 23'H and Includes 6 Chain Hoists. The 30-foot by 20-foot trussing area is large enough to cover a multi-person live band or a very large DJ production set up and the 7 foot wings are more than enough to hang speakers and lighting fixtures. You can hang lighting, curtains, video screens and speakers from the truss system and adjust the height up to 23 feet high. Scalable to smaller staging needs. The entire structure is lifted and held in place with Six (6) chain hoist lifting stations that are the stands that support the entire system. The stage roof trussing is designed to hold lighting and audio gear evenly distributed around the stage roofing system. Guy wires required for most installations!
Features
- Manufactured to Exacting Specifications in our Own Factory!
- Tolerance Free Standard Conical Connectors
- Truss Main Tube Wall Thickness of .08in / 2mm
- Load Capacity is 1 Ton (2000 lbs) per corner lift unit (4 tons total weight including truss)
- Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
- TUV Certified Aluminium/Steel Welding
Package Contents
- XT-BLOCK-MK2 (6) Ground Support Sleeve Block 4 way corner for F34 Truss Segment Systems for roof system Structure Hoists Applications
- XT-TOPCM (6) Top Truss Section for Electric Motor or Manual Chain Hoist
- XT-GSBMK3 (6) Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks for F34, F44 and 12" Bolt truss
- XT-GSOUTS3X2 (12) Ground Support Outrigger Stabilizer Set for XT-GSB Tower Base – Set of 2
- XT-HINGEX4 (6) Pack of 4 Conical Tube Ground Support Post towers Male to Male Hinge Joint Fits F31 F32 F34
- XT-SQ328 (6) 3.28 Ft - 1.00 M F34 Square Truss Segment | 2 mm Wall
- XT-SQ984 (12) 9.84 Ft - 3.00 M F34 Square Truss Segment | 2 mm Wall
- XT-MCH1TX2-30FT (3) Pair of 1 Ton Manual Chain Hoist with 30 Ft (9 M) Chain for Stage Truss roof system and line array speakers
- XT-SQ820 (4) 8.20 Ft. 2.50 M F34 Square Truss Segment | 2 mm Wall
- XT-SQ656 (6) 6.56 Ft - 2.00 M F34 Square Truss Segment | 2 mm Wall
- XT-SQ12D (8) 12 Degree F34 Square Truss Angle Connector | 2mm Wall
- XT-SQ705 (12) 7.05 Ft - 84.64 Inch - 2.15 M F34 Square Truss Segment 2 mm Wall
- XT-JB6W-4W (2) 6 Way Square Truss Junction Block - Includes 4 Way 16 Half Conical Couplers
- XT-F32-820 (6) 8.20 Ft (2.50m) F32 I-Beam Truss Segment 2mm Wall
- XT-F32-656 (6) 6.56 Ft. (2.00m) F32 I-Beam Segment Truss 2mm Wall
- XT-F32JBOX (9) F32 6 Way Universal Box Junction | 3mm Wall
- XT-F32-12D (12) 12 Degree F32 Truss Corner
- XT-SPFF105 (20) Spacer 105mm Female Coupler
- XT-CP-103P (18) Pack of 4 Truss Junction Box Connector Pack Half Conical Connectors with Pins, Bolts & Safety Clips
Why We Like This
The XTP-GS322823-PRB3-12D combines professional F34 square truss and F32 I-beam truss components into a large-format PRB3 roof system designed for demanding concert, festival, and touring production environments requiring advanced rigging flexibility and expanded speaker support.
FAQs
Q: What are the dimensions of the roof system?
A: The structure measures approximately 32 ft wide × 28 ft deep × 23 ft high.
Q: Are speaker wings included?
A: Yes. The system includes integrated 7 ft speaker wings for hanging speakers and lighting fixtures.
Q: How many chain hoists are included?
A: The package includes three sets of dual 1-ton manual chain hoists for a total of six lifting points.
Q: Does this system use both F34 and F32 truss components?
A: Yes. The PRB3 system combines F34 square truss and F32 I-beam truss components for advanced roof configurations and additional structural flexibility.
Based in Chicago, Gear Club Direct supports professional staging companies, touring crews, and event production teams with dependable truss and rigging solutions for live entertainment environments.
Tech Specs
Exterior Dimensions: |
30'W x 20'L x 23'H |
