ProX XT-SQ series trussing is a rugged and durable trussing package solution. Perfect for live outdoor or indoor productions, exhibitions, as well as nightclubs, and other permanent installations. ProX Live Performance Gear® offers a wide variety of single tubes, mounting plates, clamps and accessories that allow limitless design configurations to suit your needs. Always consult an engineer for complex designs!
Features
Manufactured to Exacting Specifications in our Own Factory!
Tolerance Free Standard Conical Connectors
Truss Main Tube Wall Thickness of .08in / 2mm
Load Capacity is 1 Ton (2000 lbs) per corner lift unit (4 tons total weight including truss)
Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
TUV Certified Aluminium/Steel Welding
Package Contents
XT-SQ984 (18) 9.84 Ft - 3.00 M F34 Square Truss Segment | 2 mm Wall
XT-TOPCM (4) Top Truss Section for Electric Motor or Manual Chain Hoist
XT-BLOCK-MK2 (4) Ground Support Sleeve Block 4 way corner for F34 Truss Segment Systems for roof system Structure Hoists Applications
XT-HINGEX4 (4) Pack of 4 Conical Tube Ground Support Post towers Male to Male Hinge Joint Fits F31 F32 F34
XT-SQ328 (4) 3.28 Ft - 1.00 M F34 Square Truss Segment | 2 mm Wall
XT-GSBMK3 (4) Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks for F34, F44 and 12" Bolt truss
XT-GSOUTS3X2 (8) Ground Support Outrigger Stabilizer Set for XT-GSB Tower Base – Set of 2
XT-MCH1TX2-30FT (2) Pair of 1 Ton Manual Chain Hoist with 30 Ft (9 M) Chain for Stage Truss roof system and line array speakers
Why We Like This

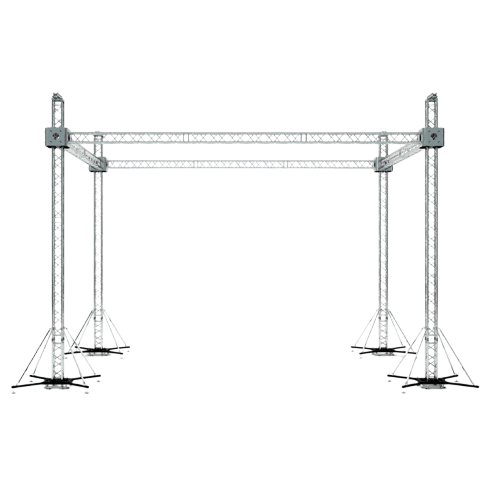

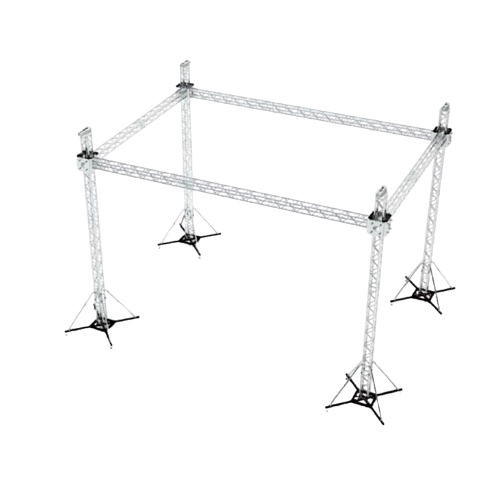

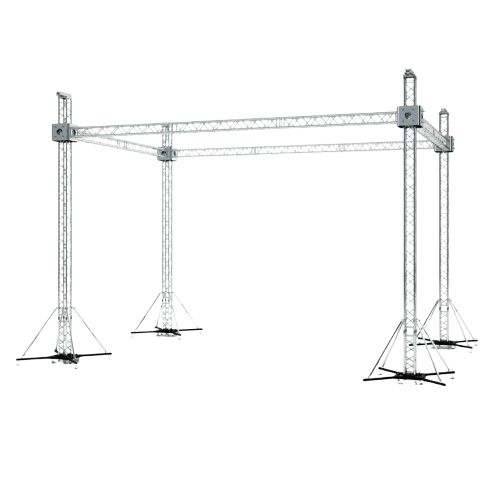

The XTP-GS302023 combines a large-span F34 roof structure with modular ground support towers and integrated chain hoists, creating a dependable professional staging solution suitable for concerts, touring productions, and large-scale live events.
FAQs
Q: What are the dimensions of the roof system? A: The structure measures approximately 30 ft wide × 20 ft deep × 23 ft high.
Q: Are chain hoists included? A: Yes. The package includes two sets of 1-ton manual chain hoists with 30 ft chains.
Q: Is the system compatible with other F34 truss brands? A: Yes. The system utilizes standard conical connectors compatible with many industry-standard F34 truss systems.
Q: Can this system be used outdoors? A: Yes. The system is designed for both indoor and outdoor professional staging applications. Proper ballast and guy wire installation are required for most outdoor installations.
Based in Chicago, Gear Club Direct supports professional staging companies, rental houses, and production crews with dependable truss and rigging solutions for live entertainment environments.
Tech Specs
Exterior Dimensions:
30'w x 20'l x 23'h ft
