Description

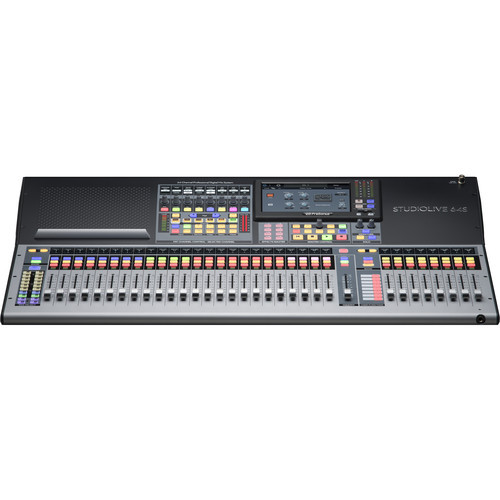

The StudioLive 64S is a 64-channel mixer that brings the power of a large-format console to small-format digital mixing. Powered by the quad-core PreSonus FLEX DSP Engine, the StudioLive 64S digital mixer is equipped with 76 mixing channels, 43 mix buses, and 526 simultaneous processors. The mixer features an integrated hardware and software system with a full-color touchscreen, 33 touch-sensitive, motorized faders and 32 recallable XMAX preamps. The powerful quad-core FLEX DSP engine supercharges the mixer with Fat Channel vintage-style EQs and compressors on every channel, plus an eight-slot FLEX FX processor that can run heralded digital reverbs and delays. Streamline your workflow with recallable scene presets, virtual sound check, and the supplied software library, which empowers you with remote control from a computer or iPad, remote monitor mixing using a mobile device, and all the software you need to track, edit, mix, and distribute your music.
The StudioLive 64S boasts 32 mic/line inputs via XLR-1/4" combo jacks. Additional inputs include four 1/4" aux inputs and a dedicated XLR talkback mic input with phantom power. The mixer provides stereo XLR main outputs, a balanced XLR mono output that can be incorporated for a true LCR setup, 16 analog FlexMix outputs on XLR jacks, a pair of 1/4" monitor outputs, and a 1/4" headphone port. A digital AES/EBU output of the main mix is available via a rear-panel XLR socket. Additionally, unbalanced stereo RCA tape inputs and outputs are on hand for hookup of a house music source and a separate stereo recorder. Alternatively, you can wirelessly stream music from a mobile device to the mixer's built-in Bluetooth receiver. Record 32 channels and the main stereo mix to a Class 10 U3 SD card (available separately) via the onboard 34-track SD recorder, or stream 128 channels (64 in each direction) over USB 2.0 to and from your computer. You can even record redundantly to an SD card and a USB host computer at the same time. Take advantage of the built-in AVB networking capabilities for flexible system expansion, digital patching between networked devices, and more.
Why We Like This
The StudioLive 64S combines high channel count, motorized faders, and extensive DSP processing with flexible recording and AVB networking, making it suitable for large live productions and advanced studio workflows.
FAQs
Q: Can this mixer record without a computer?
Yes, it includes a built-in SD card recorder for multitrack recording and playback.
Q: Does it support multitrack recording to a DAW?
Yes, it provides up to 64x64 USB audio interface functionality for recording and playback.
Q: Can the system be expanded with networking?
Yes, it features AVB networking for connecting stage boxes, personal monitor mixers, and other devices.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day.
Tech Specs
Type: |
Digital Mixer |
Channels: |
64 |
Inputs - Mic Preamps: |
32 x XLR-1/4" combo (mic/line) |
Phantom Power: |
32 Channels |
Inputs - Line: |
1 x Dual RCA Stereo (tape), 4 x 1/4" (2 x stereo aux in) |
Outputs - Main: |
2 x XLR (main out), 1 x XLR (mono/center), 2 x 1/4" (monitor) |
Outputs - Other: |
16 x XLR (mix out), 1 x Dual RCA Stereo (tape)) |
Outputs - Digital: |
1 x XLR (AES/EBU) |
Busses/Groups: |
32 x FlexMix Buses (aux, subgroup, matrix), 43 total mix buses, 24 x DCA groups |
Talkback: |
1 x XLR (phantom power) |
Data I/O: |
1 x Locking Ethernet (AVB audio network), 1 x RJ45 (network control) |
Headphones: |
1 x 1/4" |
USB: |
1 x Type B (64 x 64) |
Computer Connectivity: |
USB 2.0 |
Bluetooth: |
v4.1 |
Faders: |
33 x Touch-sensitive motorized fadersV |
A/D Resolution: |
24-bit/48kHz |
Effects: |
FLEX FX Multi-effects processor, 8 x effects slots, 8 x effects buses |
Signal Processing: |
Fat Channel plug-ins, 10 x EQs, 10 x Compressors |
Features: |
Metro remote-control (UC 4.2) |
Transport Controls: |
Yes |
DAW Control: |
Advanced Studio One, MCU Logic emulation, HUI Pro Tools emulation |
Screen: |
7" Touchscreen |
Storage: |
SD card recorder (34 track) |
Software: |
Fender Studio Pro |
Power Source: |
Standard IEC AC cable |
