Description

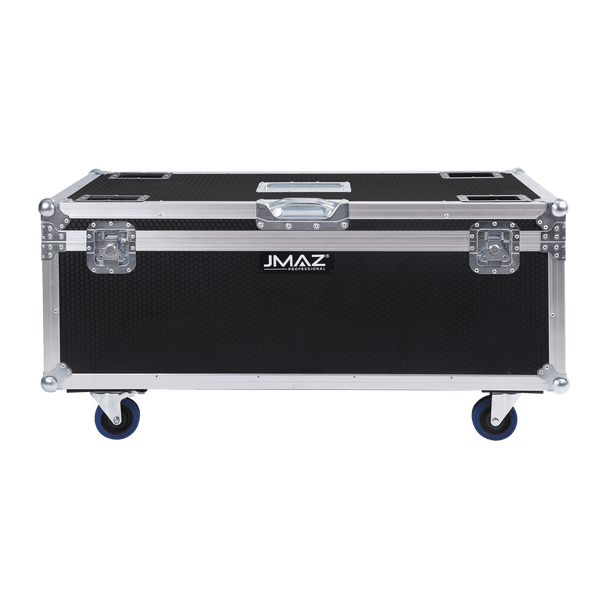

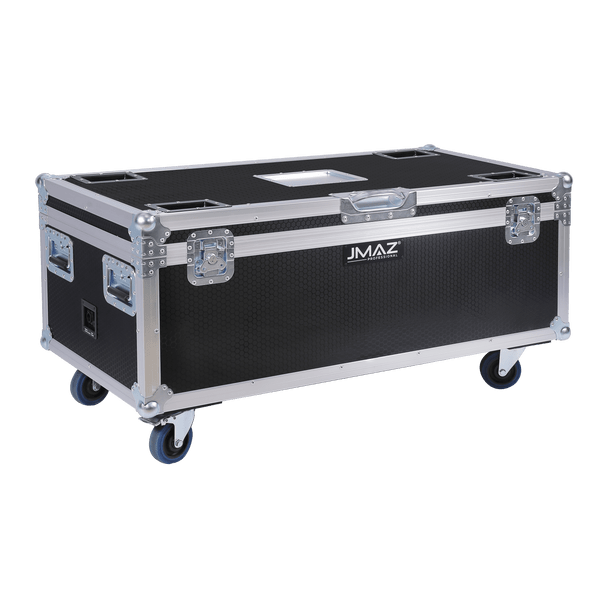

The Electro Panel W18 4-Pack with Charging Road Case delivers a complete wireless lighting solution designed for production companies, rental houses, houses of worship, and event professionals who demand powerful output, rapid deployment, and effortless transport. Featuring four Electro Panel W18 fixtures housed in a rugged charging road case, this turnkey package simplifies setup, charging, storage, and transportation while ensuring every fixture is show-ready when you arrive on site. The integrated charging road case allows all four fixtures to be charged simultaneously without removing them from the case, reducing preparation time and streamlining event logistics. Combining vibrant wireless performance with professional-grade protection, the Electro Panel W18 4-Pack is the ideal solution for uplighting, stage washes, architectural lighting, and temporary event installations where flexibility and efficiency are essential.
Features
- Complete turnkey package includes four Electro Panel W18 fixtures and a professional charging road case for streamlined deployment and transportation.

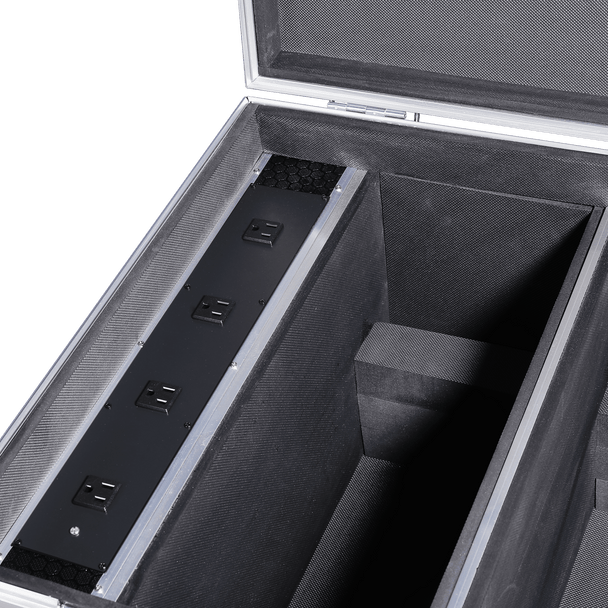

- Integrated charging system allows all fixtures to recharge simultaneously while stored securely inside the case, minimizing setup and turnaround time.
- Rugged touring-grade road case construction provides superior protection during transport, storage, and rental operations.
- Organized charging and storage solution helps reduce cable management, simplify inventory control, and improve operational efficiency.
- Ideal for uplighting, stage washes, architectural illumination, corporate events, houses of worship, and temporary production installations.
- Designed for production companies, rental houses, event professionals, integrators, and entertainment venues seeking a reliable wireless lighting package with maximum deployment efficiency.
Why We Like This
Electro Panel W18 4PK RGB+LIME Battery-Powered Outdoor LED Panel Light Kit w/ Charging Road Case brings the listed fixtures and charging road case together as one working package. Integrated charging system allows all fixtures to recharge simultaneously while stored securely inside the case, minimizing setup and turnaround time. For mobile crews, keeping the lights, charging, storage, and transport together can shorten preparation between events.
FAQs
Q: What is included with the JP2014?
A: Turnkey package includes four Electro Panel W18 fixtures and a professional charging road case for streamlined deployment and transportation.
Q: Can the fixtures charge while stored in the case?
A: Integrated charging system allows all fixtures to recharge simultaneously while stored securely inside the case, minimizing setup and turnaround time.
Q: What are the included fixtures intended for?
A: Suited to uplighting, stage washes, architectural illumination, corporate events, houses of worship, and temporary production installations.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Box Content: |
1 x Charging Case; 4 x Electro Panel W18; 4 x Powercon IP65 TRUE1 Power Cable; 1 x Quick Start Guide; 1 x User Manual; 4 x IR Remote; 4 x Barn Door; 4 x 40 Degree Diffuser |
Brand: |
Jmaz Lighting |
Color System: |
RGBL Color Mixing 8/16 bit |
Color System - CTO: |
2300K - 8500K |
Control - Control Protocol: |
Wireless DMX, IR Remote |
Control - Personalities: |
HSV/HSI/3/4/6/11/16 DMX Channel Modes |
Control - Wireless DMX: |
CRMX by LumenRadio |
Country of Origin: |
China |
Designed and Engineered: |
California |
Die-Cast Aluminum and Steel Structure - External Finish: |
Black |
Dynamic Effect: |
Max 11 Hour Battery Life / 40 Hour In Battery Saving Mode; 73 Preset Color Programs; 72 Auto / Fade Built-In Programs |
Dynamic Effect - Charging Time: |
2.5 Hours |
Dynamic Effect - Selectable Battery Saving Mode: |
20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100% |
Electrical: |
Up to 8 units @110V with a 20A circuit; Up to 14 units @208V with a 20A circuit; Up to 17 units @230V with a 20A circuit |
Electrical - Battery Capacity: |
13000mAh, 384.8Wh/hour |
Electrical - Battery Voltage: |
29.6V, 3A |
Electrical - Charger: |
29.4V, 5.5A |
Electrical - Input Voltage: |
100V - 240V AC, 50/60 Hz |
Electrical - PWM: |
1.5KHz |
Electrical - Power Consumption: |
216W |
Electrical - Rechargeable Battery Type: |
Lithium Ion ***UL Listed*** |
Electronics - Dimming Modes: |
4 |
Electronics - Strobe Shutter: |
1-25Hz |
Fading/Jumping Macros Light Change And Jump: |
4 Favorite Color Customization Triggered via DMX / IR Remote |
Fading/Jumping Macros Light Change And Jump - Preset Color Temperature: |
2300K - 8500K |
Fading/Jumping Macros Light Change And Jump - Shutter/Strobe: |
Electronic |
Fading/Jumping Macros Light Change And Jump - Strobe Rate: |
0-25 Hz |
Full Product Specifications: |
Technical specifications Light Source • 216W (18 x 12W) RGBL LEDs • LED Life Expectancy: 50,000 hrs Color System • RGBL Color Mixing 8/16 bit • CTO: 2300K - 8500K Optics • Advanced Optics Beam Angle: 20 Degree • Diffuser Angle (included): 40 Degree D |
Item Height: |
22.5 in |
Item Length: |
45 in |
Item Weight: |
78 lbs |
Item Width: |
22.8 in |
Light Source: |
216W (18 x 12W) RGBL LEDs |
Light Source - LED Life Expectancy: |
50,000 hrs |
Manufacturer: |
JMAZ Group |
Master Pack Cartons: |
1 |
Master Pack Height: |
23 in |
Master Pack Length: |
46 in |
Master Pack Quantity: |
1 |
Master Pack Weight: |
244..7 lbs |
Master Pack Width: |
23 in |
Model: |
JP2014 |
Optics - Advanced Optics Beam Angle: |
20 Degree |
Optics - Diffuser Angle (included): |
40 Degree |
Physical - Cooling: |
Fanless |
Physical - IP Rating: |
65 |
Product Data Sheet: |
https://www.dropbox.com/scl/fi/zsiv4gkt409fdwgflzz4c/JMAZ-PROFESSIONAL-ELECTRO-PANEL-W18-Product-Data-Sheet.pdf?rlkey=sh5790juu90ao74c0l93moz6a&st=xdaz6atz&dl=0 |
Product Name: |
Electro Panel W18 4Pack with Charging Road Case |
Product Type: |
LED Panel Light |
Prop 65 Compliant: |
Yes |
RoHS, CE, FCC, cETL (Pending) - Cable Length: |
Power 4.1 feet (1.25 meter) |
RoHS, CE, FCC, cETL (Pending) - Data Connectors: |
Seetronic 5pin XLR IN/OUT |
RoHS, CE, FCC, cETL (Pending) - Power Connection: |
US Edison (UL listed) plug to Seetronic Powercon IP65 True1 |
RoHS, CE, FCC, cETL (Pending) - Power Input: |
Seetronic Powercon IP65 True1 |
RoHS, CE, FCC, cETL (Pending) - Power Output: |
Seetronic Powercon IP65 True1 |
SKU: |
JP2014 |
Shipping Cartons: |
1 |
Shipping Height: |
23 in |
Shipping Length: |
46 in |
Shipping Width: |
23 in |
UPC: |
618528600024 |
Video URL: |
https://youtu.be/8bsWfRYa1pY?si=aydPxWtwQZO3MThs |
Website URL: |
https://jmazprofessional.com/Products/electro-w18-panel-w-charging-case/ |
