Description

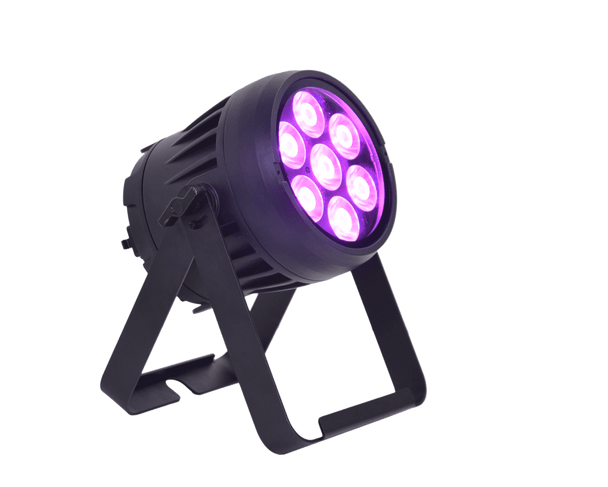

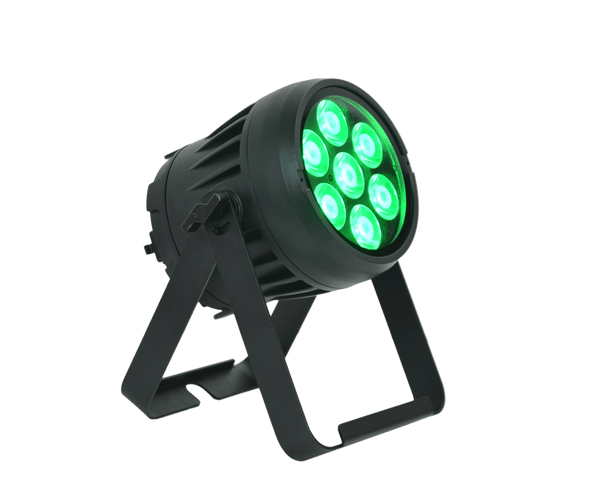

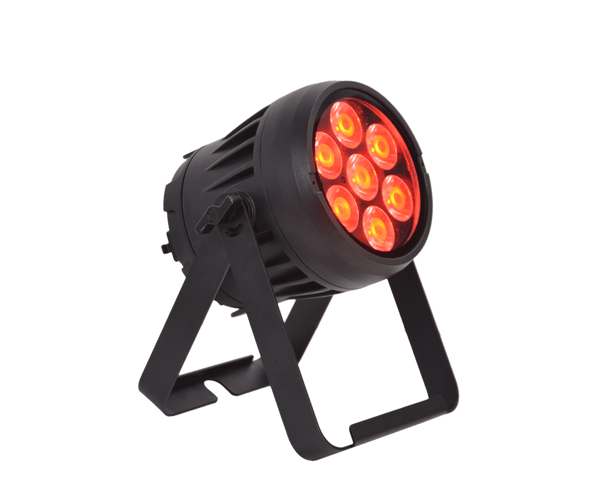

The JMAZ Professional Electro Par W7 is a compact and powerful RGB+LIME LED battery-powered par, engineered for outdoor environments and professional lighting applications. Outfitted with 7 high-output 12W RGB+LIME LEDs, it offers bold color rendering and a tunable CCT range of 2300K to 8500K. With an IP65 rating, the W7 is built to perform in harsh weather conditions, while delivering up to 14 hours of continuous run time—or 40 hours in battery saver mode—with just a 4.5-hour recharge. Featuring 73 preset color programs and 72 built-in auto/fade effects, the fixture provides immediate creative flexibility. The native 10° beam angle is ideal for focused uplighting, and the included diffuser expands coverage to 20°. Control options include DMX512, Wireless DMX (CRMX by LumenRadio), RDM, and IR remote, with 7 personality modes (HSV, HSI, 3-16 channels) for various programming needs. The TRUE1 IN/OUT system enables simultaneous charging and operation through the integrated battery charger, and IP65-rated 5-pin DMX ports ensure reliable data transmission. Accessories include a diffuser, TRUE1 power cable, IR remote, quick start guide, and manual. CE, FCC, RoHS certified with a UL listed battery for ultimate safety.
Features
- Equipped with seven 12W RGB+LIME LEDs delivering vibrant saturated colors, enhanced pastel tones, and a wide color temperature range from 2300K to 8500K.
- Integrated rechargeable lithium-ion battery provides up to 14 hours of continuous operation or up to 40 hours in battery-saving mode for extended event applications.
- IP65-rated housing protects against rain, dust, and outdoor environments, making it ideal for both indoor and temporary outdoor installations.
- Built-in CRMX by LumenRadio wireless DMX technology enables reliable cable-free control while supporting seamless integration into professional lighting systems.
- Fanless cooling design ensures completely silent operation, making it suitable for houses of worship, theatrical productions, broadcast environments, and corporate presentations.
- Designed for mobile DJs, event production companies, rental houses, houses of worship, architectural lighting professionals, and entertainment venues seeking powerful wireless uplighting and accent lighting solutions.
Why We Like This
Electro Panel W7 RGB+LIME Battery-Powered Outdoor LED Par Light combines wash, accent, or event lighting with battery-powered operation, which is useful when cable runs would slow down setup or limit placement. The listed runtime is up to 14 hours per charge, or up to 40 hours in battery-saver mode. That makes the fixture easier to deploy for mobile events and temporary installations.
FAQs
Q: What light source does the JP2008 use?
A: Equipped with seven 12W RGB+LIME LEDs delivering vibrant saturated colors, enhanced pastel tones, and a wide color temperature range from 2300K to 8500K.
Q: How long can the JP2008 run on battery power?
A: The listed runtime is up to 14 hours per charge, or up to 40 hours in battery-saver mode.
Q: What beam or zoom range does the JP2008 provide?
A: Optics - Advanced Optics Beam Angle: 10 Degree.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Box Content: |
1 x Electro PAR W7; 1 x Powercon IP65 TRUE1 Power Cable; 1 x Quick Start Guide; 1 x User Manual; 1 x IR Remote; 1 x 20 Degree Diffuser |
Brand: |
Jmaz Lighting |
Color System: |
RGBL Color Mixing 8/16 bit |
Color System - CTO: |
2300K - 8500K |
Control - Personalities: |
HSV/HSI/3/4/6/11/16 DMX Channel Modes |
Control - Protocol: |
Wireless DMX, IR Remote |
Control - Wireless DMX: |
CRMX by LumenRadio |
Country of Origin: |
China |
Designed and Engineered: |
California |
Die-Cast Aluminum and Steel Structure - External Finish: |
Black |
Dimensions: |
9.3″ x 6.7″ x 11″ |
Dynamic Effect: |
Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode; 73 Preset Color Programs; 72 Auto / Fade Built-In Programs |
Dynamic Effect - Charging Time: |
4.5 Hours |
Dynamic Effect - Selectable Battery Saving Mode: |
20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100% |
Electrical: |
Battery Capacity 7800mAh, 202 Wh/Hour; Up to 22 Units @110V with a 20A circuit; Up to 40 Units @208V with a 20A circuit; Up to 45 Units @230V with a 20A Circuit |
Electrical - Battery Voltage: |
25.9V, 3A |
Electrical - Charger: |
29.4V, 5.5A |
Electrical - Input Voltage: |
100V - 240V AC, 50/60Hz |
Electrical - PWM: |
1.5KHz |
Electrical - Power Consumption: |
90W |
Electrical - Rechargeable Battery Type: |
Lithium Ion ***UL Listed*** |
Electronics - Dimming Modes: |
4 |
Electronics - Strobe Shutter: |
1-25Hz |
Full Product Specifications: |
Technical specifications Light Source • 84W (7 x 12W) RGBL LEDs • LED Life Expectancy: 50,000 hrs Color System • RGBL Color Mixing 8/16 bit • CTO: 2300K - 8500K Optics • Advanced Optics Beam Angle: 10 Degree • Diffuser Angle (Included): 20 Degree Dyn |
Item Height: |
11.1 in |
Item Length: |
9.3 in |
Item Weight: |
11.02 lbs |
Item Width: |
6.7 in |
Light Source: |
84W (7 x 12W) RGBL LEDs |
Light Source - LED Life Expectancy: |
50,000 hrs |
Manufacturer: |
JMAZ Group |
Master Pack Cartons: |
1 |
Master Pack Height: |
14.2 in |
Master Pack Length: |
18.9 in |
Master Pack Quantity: |
4 |
Master Pack Weight: |
48.6 lbs |
Master Pack Width: |
18.9 in |
Model: |
JP2008 |
Optics - Advanced Optics Beam Angle: |
10 Degree |
Optics - Diffuser Angle (Included): |
20 Degree |
Physical - Cooling: |
Fanless |
Physical - IP Rating: |
65 |
Product Data Sheet: |
https://www.dropbox.com/scl/fi/ihye2zprp0dr2cw57bd9k/JMAZ-PROFESSIONAL-JP2008-ELECTRO-PAR-W7-PRODUCT-DATA-SHEET.pdf?rlkey=0epj95vbbbrj3gfmq4fwwcu8w&st=4anv1hod&dl=0 |
Product Name: |
Electro Par W7 |
Product Type: |
LED Uplight Fixture |
Prop 65 Compliant: |
Yes |
RoHS, CE, FCC, cETL (Pending) - Cable Length: |
Power 4.1 feet (1.25 meter) |
RoHS, CE, FCC, cETL (Pending) - Data Connectors: |
Seetronic 5pin XLR IN/OUT |
RoHS, CE, FCC, cETL (Pending) - Power Connection: |
US Edison (UL listed) plug to Seetronic Powercon IP65 True1 |
RoHS, CE, FCC, cETL (Pending) - Power Input: |
Seetronic Powercon IP65 True1 |
RoHS, CE, FCC, cETL (Pending) - Power Output: |
Seetronic Powercon IP65 True1 |
SKU: |
JP2008 |
Shipping Cartons: |
1 |
Shipping Height: |
5.07 in |
Shipping Length: |
9.05 in |
Shipping Width: |
9.05 in |
Shutter/Strobe Electronics: |
4 Favorite Color Customization Triggered via DMX / IR Remote |
Shutter/Strobe Electronics - Preset Color Temperature: |
2300K - 8500K |
Shutter/Strobe Electronics - Strobe Rate: |
0-25 Hz |
UPC: |
618528598987 |
Video URL: |
https://youtu.be/CLjKPtI_rdw?si=wTtj89KLJdNg4LWr |
Warranty - 3 Years Battery: |
6 Months |
Website URL: |
https://jmazprofessional.com/Products/electro-par-w7-2/ |
