Description

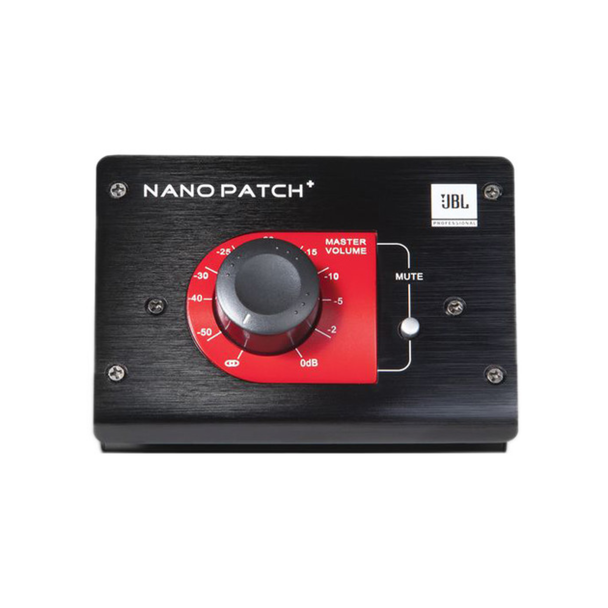

The Nano Patch+ from JBL is a versatile passive volume controller in a compact desktop format. It can be used as a physical volume attenuation knob for audio software applications, when connected between a computer audio interface, or soundcard master output and a pair of active (powered) monitor speakers.
Reducing levels from your software only reduces the audio bit depth. The Nano Patch+ allows you to maintain a maximum audio resolution and attenuate your monitoring volume with the confidence that your audio is not compromised. The Nano Patch+ has no active circuitry, buffers, transistors, batteries, or power supply and limits interference to the main passive outputs. It delivers attenuated signal, that is naturally transparent.
Features

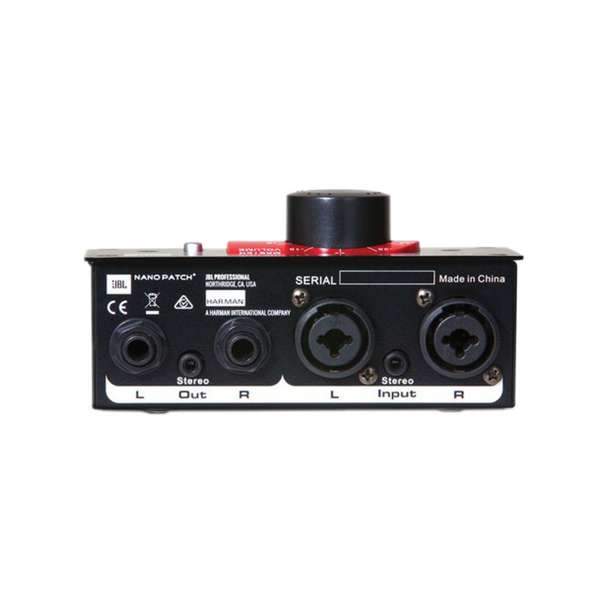

- 2 x XLR/TRS 1/4" Combination Inputs
- Single 1/8" Mini-Jack Input
- Single 1/8" Mini-Jack Output
- 2 x 1/4" Output Connectors
- 10 Hz to 40 kHz Frequency Response
- Compact Desktop Format
Tech Specs
Input 1: |
2 x combination XLR/TRS 1/4" (6.3 mm) balanced/unbalanced |
Input 2: |
1/8" (3.5 mm) mini-jack |
Maximum Input Level: |
+26 dB |
Input Impedance: |
5 kOhms |
Output 1: |
2 x TRS 1/4" (6.3 mm) balanced/unbalanced |
Output 2: |
1/8" (3.5 mm) |
Maximum Output Level: |
> +26 dB |
Impedance: |
0 to 5 kOhms |
Frequency Response: |
10 Hz to 40 kHz (0/0.15 dB) |
Signal to Noise: |
Better than -120 dB |
Channel Cross Talk: |
> -80 dB |
Distortion: |
< 0.0004% |
