Description

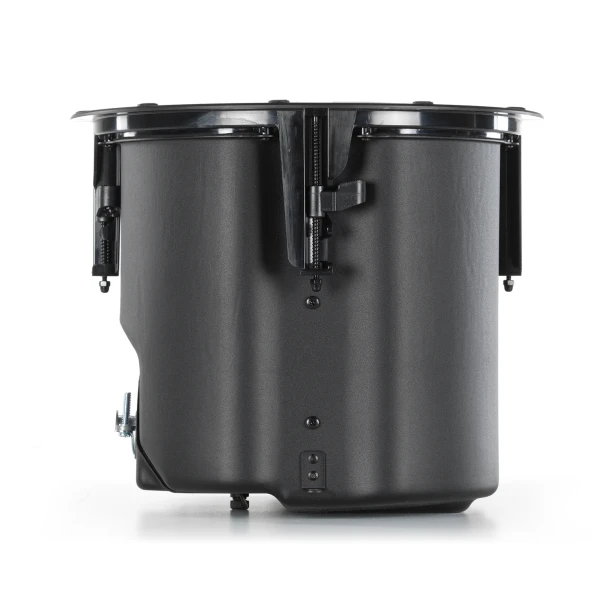

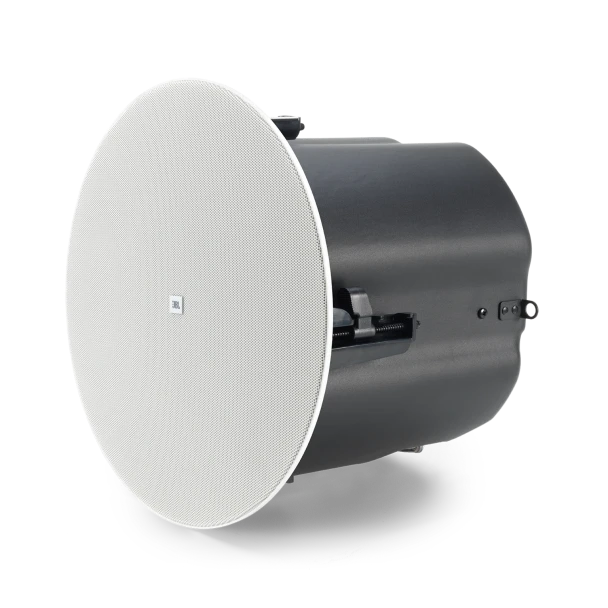

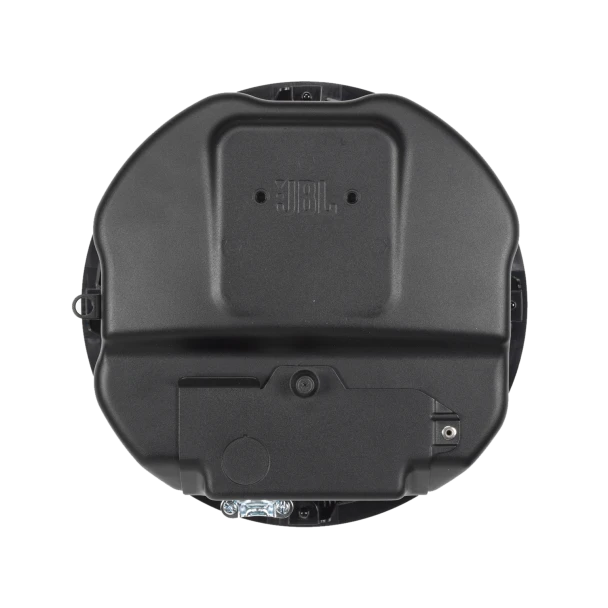

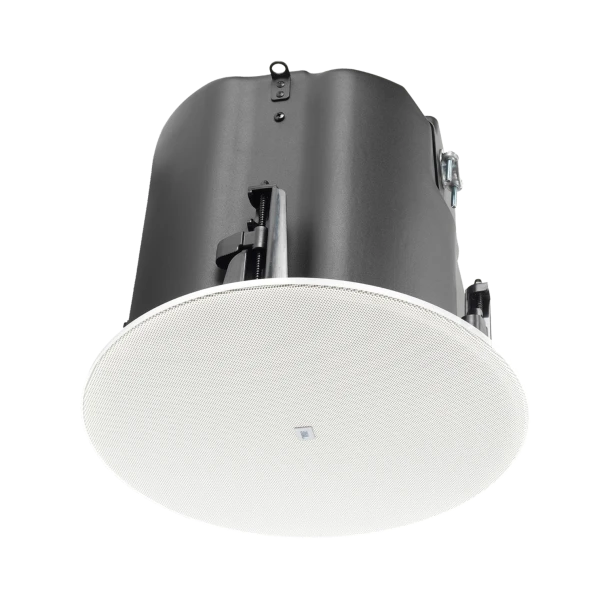

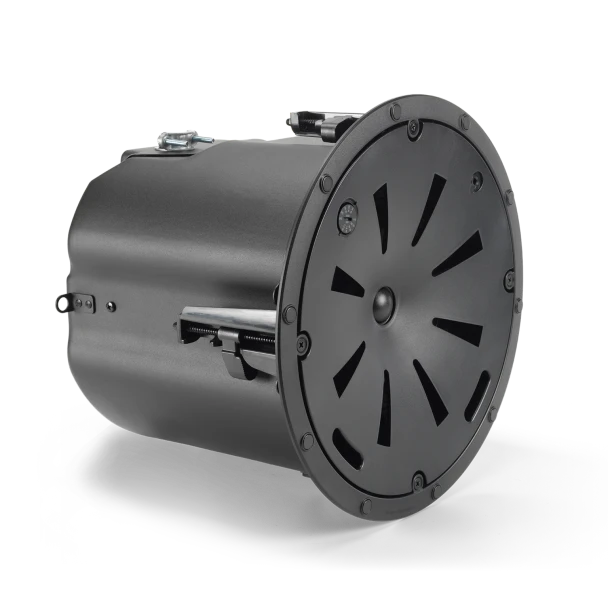

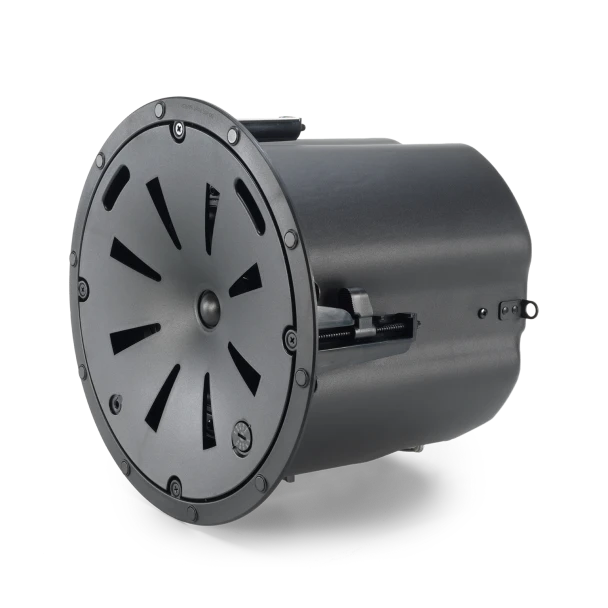

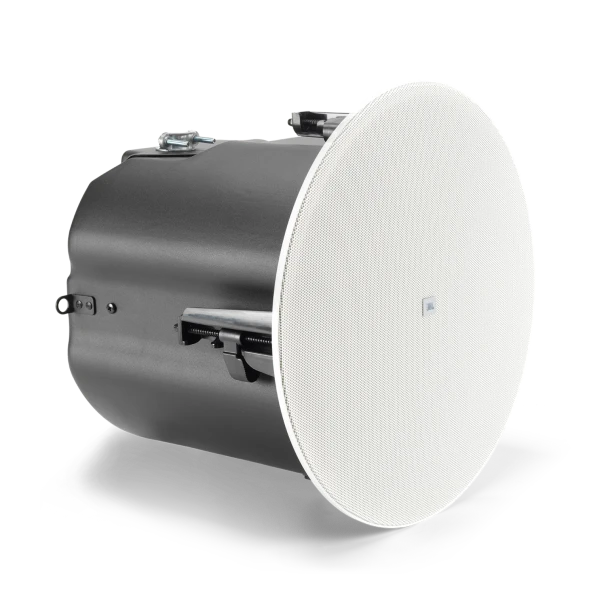

The JBL Control 447C/T is a premium 6.5-inch two-way coaxial ceiling loudspeaker featuring JBL Radiation Boundary Integrator technology for consistent coverage and sound quality. Its integrated enclosure, transformer taps, direct input, and magnetic grille support professional commercial installations.
Features
- 165 mm (6.5 in) woofer and 25 mm (1 in) soft-dome tweeter
- JBL’s exclusive conical Radiation Boundary Integrator® (RBI™) technology
- Integrated enclosure that is ideal for installation in most ceiling plenum spaces
- Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
- Full-face, easily paintable magnetic grilles
- Top and side cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
Why We Like This
The RBI design helps the woofer and tweeter work together more evenly across the listening area, making this a strong choice for spaces where coverage consistency matters as much as output and clarity.
FAQs
Q: What is JBL RBI technology?
A: Radiation Boundary Integrator technology combines the high- and low-frequency sections to support more consistent coverage through the crossover region.
Q: Does the Control 447C/T support 70V and 100V systems?
A: Yes. It includes a multi-tap 70V/100V transformer plus an 8-ohm direct input.
Q: What drivers are used?
A: It uses a 165 mm 6.5-inch woofer and a 25 mm 1-inch soft-dome tweeter.
Q: Is the grille paintable?
A: Yes. The full-face magnetic grille is paintable.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
JBL |
Model: |
Control 447C/T |
Product Type: |
6.5-Inch 2-Way Coaxial Ceiling Loudspeaker |
Frequency Range (-10 dB): |
55 Hz - 20 kHz |
Power Capacity: |
112 W (448 W Peak), Cont. Pink Noise (2 hrs.); 75 W (300 W Peak) Cont. Pink Noise Power (100 hrs.) |
Sensitivity (1m/1W): |
91dB |
Coverage Angle: |
120° conical |
Maximum SPL (1m): |
111.5 dB continuous pink noise (117.5 dB peak) |
Nominal Impedance: |
8 Ω |
Transformer Taps: |
70 V: 60 W, 30 W, 15 W & 7.5 W; 100 V: 60 W, 30 W, 15 W |
Drivers: |
LF: 165 mm (6.5 in) with treated paper cone and high-performance magnet; HF: 25 mm (1 in) soft-dome with Neodymium magnet |
Ceiling Cutout Size: |
282 mm (11.1 in) |
Dimensions: |
264 mm (10.4 in) H x 316 mm (12.4 in) dia.; 252 mm (9.9 in) from bottom of ceiling tile to top of backcan |
Safety Agency Rating: |
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer. |
Environmental: |
IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C. |
Optional Accessories: |
BL-MTC-447BG black (RAL9004) round grille JBL-MTC-447SG white (RAL9003) square grille JBL-MTC-447WG weather grille JBL-MTC-447NC new construction bracket JBL-MTC-447MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
Color: |
Stock grille is White (RAL9003), paintable |
Net Weight (ea): |
5.68 kg (12.52 lbs) |
Shipping Weight (pair): |
17.27 kg (38.07 lbs) |
SKU Numbers: |
JBL-C447C/T |
