Description

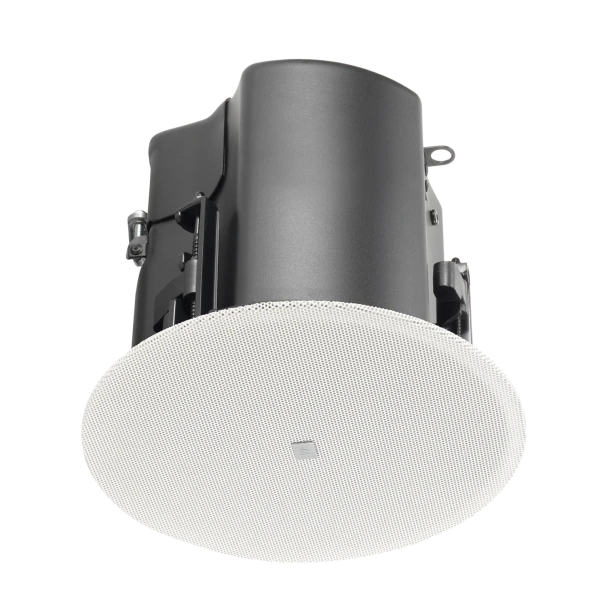

The JBL Control 414C/T is a 4-inch two-way coaxial ceiling loudspeaker with an integrated enclosure for commercial background music, paging, and distributed audio. A 4-inch woofer and soft-dome tweeter deliver clear full-range sound while transformer taps and an 8-ohm input support flexible system design.
Features

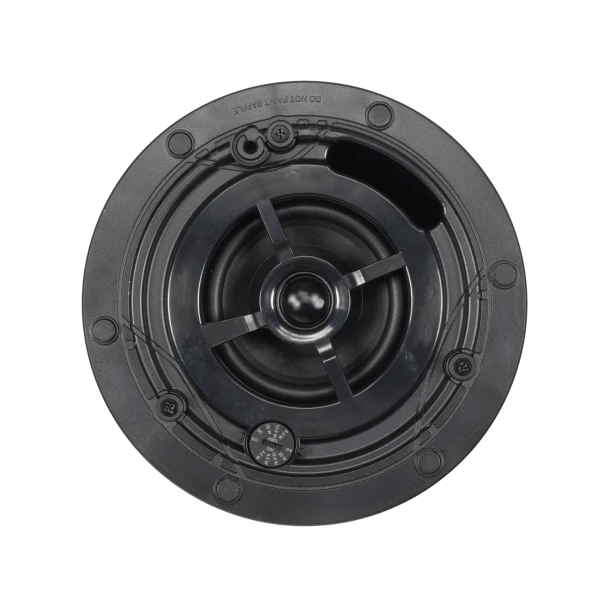

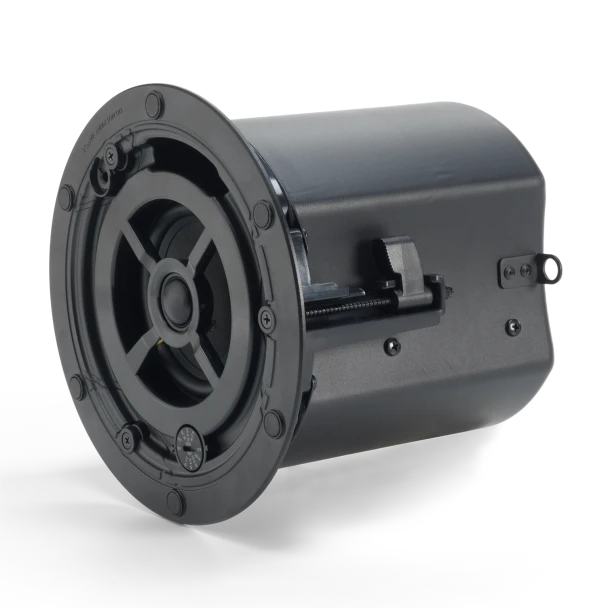

- 100 mm (4 in) woofer and 20mm (0.75 in) soft-dome tweeter
- Integrated enclosure that is ideal for installation in most ceiling plenum spaces
- Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input

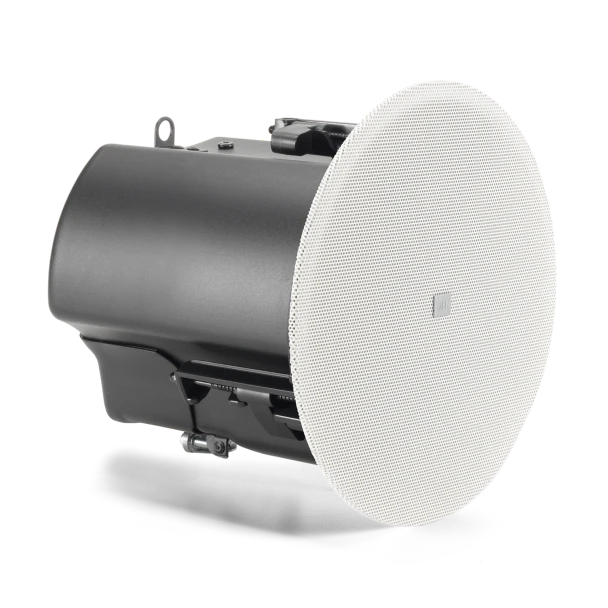

- Full-face, easily paintable magnetic grilles

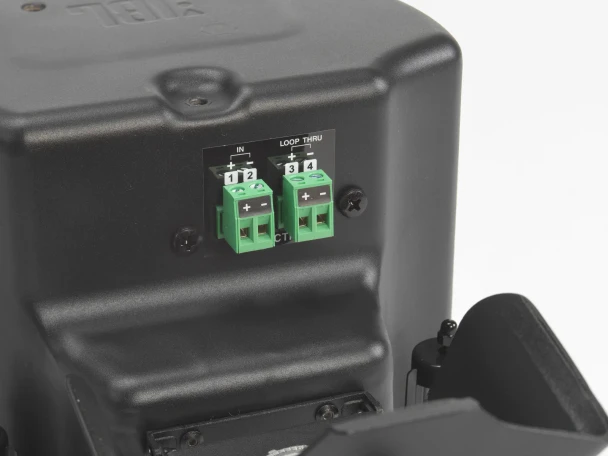

- Top and side cable entry options

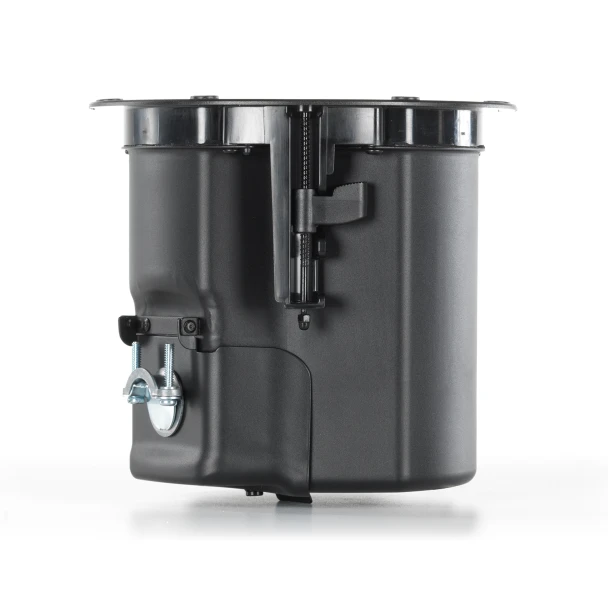

- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
Why We Like This
The two-way driver layout gives this compact model more detail and extension than a basic full-range ceiling speaker. Install-friendly cable entry, dogears, and the magnetic grille help keep multi-speaker projects efficient and consistent.
FAQs
Q: Does the Control 414C/T support distributed audio systems?
A: Yes. It includes a 70V/100V multi-tap transformer plus an 8-ohm direct input.
Q: What drivers are used in the Control 414C/T?
A: It uses a 100 mm 4-inch woofer and a 20 mm 0.75-inch soft-dome tweeter.
Q: Is the grille paintable?
A: Yes. The full-face magnetic grille can be painted to match the ceiling.
Q: Does it have an integrated enclosure?
A: Yes. Its built-in enclosure is suitable for most ceiling plenum spaces.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
JBL |
Model: |
Control 414C/T |
Product Type: |
4-Inch 2-Way Coaxial Ceiling Loudspeaker |
Frequency Range (-10 dB): |
65 Hz - 20 kHz |
Power Capacity: |
45 W (180 W Peak) Cont. Pink Noise (2 hrs); 30 W (120 W Peak) Cont. Pink Noise (100 hrs) |
Sensitivity (1m/1W): |
86dB |
Coverage Angle: |
130° conical |
Maximum SPL (1m): |
103 dB continuous pink noise (109 dB peak) |
Nominal Impedance: |
8 Ω |
Transformer Taps: |
70 V: 25 W, 12.5 W, 6.3 W & 3.2 W; 100 V: 25 W, 12.5 W, 6.3 W |
Drivers: |
LF: 100 mm (4.0 in) with paper cone, SBR surround; HF: 20 mm (0.75 in) soft dome |
Ceiling Cutout Size: |
168 mm (6.6 in) |
Dimensions: |
186 mm (7.4 in) H x 203 mm (8.1 in) dia.; 177 mm (7.1 in) from bottom of ceiling tile to top of backcan |
Safety Agency Rating: |
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer. |
Environmental: |
IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C. |
Optional Accessories: |
JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG white (RAL9003) weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4 |
Color: |
Stock grille is White (RAL9003), paintable |
Net Weight (ea): |
2.50 kg (5.51 lbs) |
Shipping Weight (pair): |
9.52 kg (20.99 lbs) |
SKU Numbers: |
JBL-C414C/T |
