Description

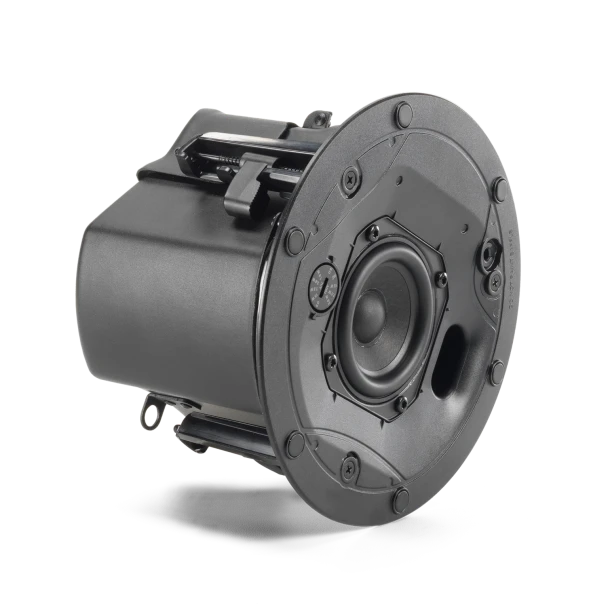

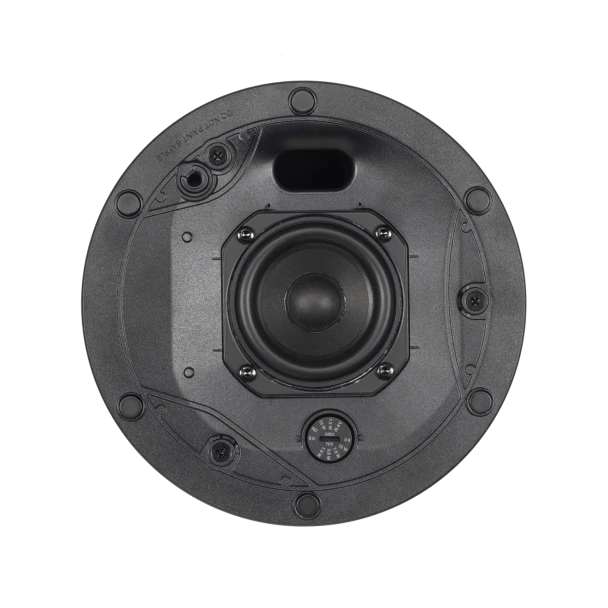

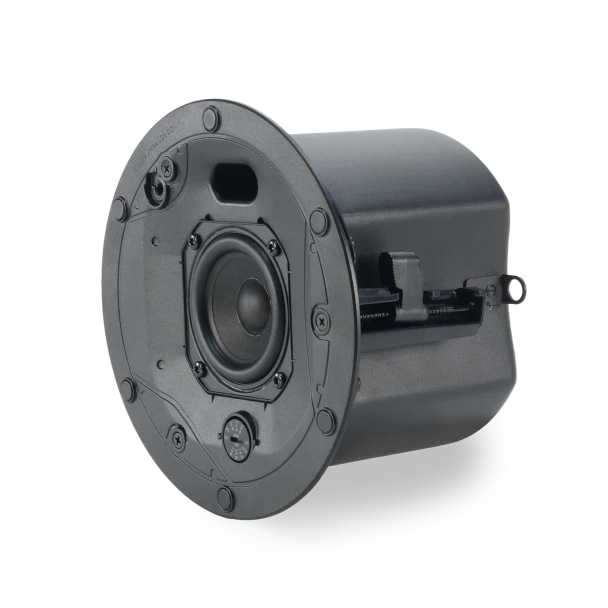

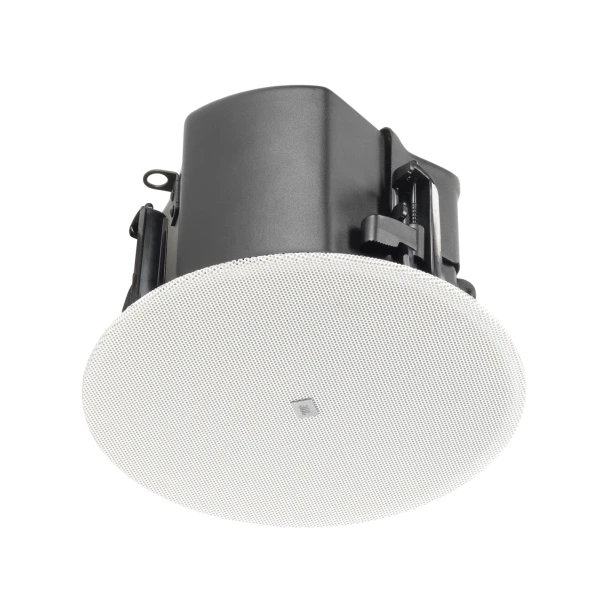

The JBL Control 412C/T is a compact 3-inch full-range ceiling loudspeaker with an integrated backcan for commercial background music, paging, and distributed audio. It supports 70V/100V systems and 8-ohm operation while its full-face magnetic grille creates a clean architectural finish.
Features
- 76 mm (3 in) full-range driver
- Integrated enclosure that is ideal for installation in most ceiling plenum spaces
- Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
- Full-face, easily paintable magnetic grilles
- Top and side cable entry options
- Robust and adaptable dogears for wide range of ceiling thicknesses
- IP33 rated
Why We Like This
It is a practical choice when ceiling space is limited but installers still need a finished enclosure, transformer taps, reliable dogears, and a grille that blends into the room. The broad coverage works well for evenly spaced background audio layouts.
FAQs
Q: Does the Control 412C/T support 70V and 100V systems?
A: Yes. It includes a multi-tap 70V/100V transformer and an 8-ohm direct input.
Q: Is the grille paintable?
A: Yes. The full-face magnetic grille is designed to be easily painted to match the ceiling.
Q: What is the coverage pattern?
A: The rated coverage is 160° conical.
Q: Does it include an integrated enclosure?
A: Yes. The built-in enclosure is designed for installation in most ceiling plenum spaces.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
JBL |
Model: |
Control 412C/T |
Product Type: |
3-Inch Full-Range Ceiling Loudspeaker |
Frequency Range (-10 dB): |
68 Hz - 17 kHz |
Power Capacity: |
30 W (120 W Peak) Cont. Pink Noise (2 hrs); 20 W (80 W Peak) Cont. Pink Noise (100 hrs) |
Sensitivity (1m/1W): |
84dB |
Coverage Angle: |
160° conical |
Maximum SPL (1m): |
99 dB continuous pink noise (105 dB peak) |
Nominal Impedance: |
8 Ω |
Transformer Taps: |
70 V: 15 W, 7.5 W, 3.8 W & 1.9 W 100 V: 15 W, 7.5 W, 3.8 W |
Drivers: |
76 mm (3 in) full range driver with paper cone and SBR surround |
Ceiling Cutout Size: |
168 mm (6.6 in) |
Dimensions: |
143 mm (5.7 in) H x 203 mm (8.1 in) dia.; 134 mm (5.4 in) from bottom of ceiling tile to top of backcan |
Safety Agency Rating: |
Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer. |
Environmental: |
IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C. |
Optional Accessories: |
JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG white (RAL9003) weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4 |
Color: |
Stock grille is White (RAL9003), paintable |
Net Weight (ea): |
1.75 kg (3.86 lbs) |
Shipping Weight (pair): |
7.92 kg (17.46 lbs) |
SKU Numbers: |
JBL-C412C/T |
