Description

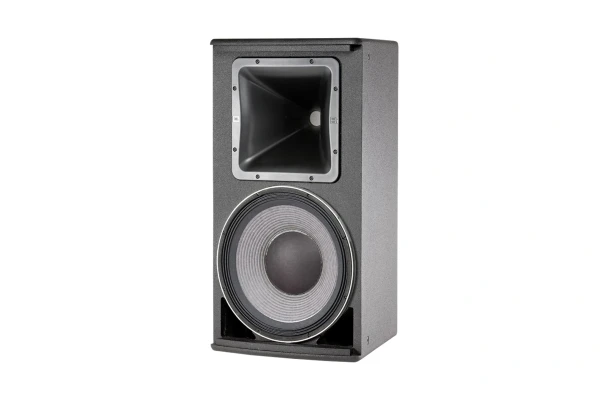

The JBL AM7215/26 is a high-output 15-inch two-way installation loudspeaker built for performing arts venues, auditoriums, houses of worship, clubs, and sports facilities. Its 120° x 60° rotatable Progressive Transition waveguide supports consistent coverage in vertical or horizontal installations.
Features
- 120° x 60° Coverage
- 2265H Differential Drive® Low- Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
- Available in Black, White and WRC/WRX finishes
Why We Like This
This model combines serious output with controlled wide coverage and flexible bi-amp or passive operation. The rotatable waveguide also makes it easier to match the enclosure orientation to the room and mounting plan.
FAQs
Q: What is the coverage pattern of the AM7215/26?
A: The AM7215/26 provides 120° horizontal by 60° vertical coverage.
Q: Can the AM7215/26 operate in passive and bi-amp modes?
A: Yes. It is switchable between passive and bi-amp operation.
Q: Can the waveguide be rotated?
A: Yes. The Progressive Transition waveguide rotates for vertical or horizontal loudspeaker orientation.
Q: What applications is this loudspeaker designed for?
A: It is designed for installed sound applications such as auditoriums, performing arts facilities, worship spaces, clubs, sports facilities, and themed venues.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
JBL |
Model: |
AM7215/26 |
Product Type: |
15-Inch 2-Way Passive Installation Loudspeaker |
Frequency Range (-10dB): |
34 Hz - 20 kHz |
Frequency Response (±3 dB): |
40 Hz - 18 kHz |
Coverage: |
/64: 60° x 40°/66: 60° x 60° /95: 90° x 50° /26: 120° x 60° |
LF Driver: |
1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil |
HF Driver: |
JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
System Type: |
15" Two - Way, High Power, Full - Range |
Dimensions (H x W x D): |
781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in) |
Net Weight (each): |
27.2 kg (60 lb) |
Crossover Modes: |
Bi-amp/Passive switchable |
Passive Crossover Frequency: |
1.8 kHz |
Transducer Power Rating (AES): |
LF: 1000 W (4000 W peak), 2 hr; 750 W (3000 W peak), 100 hrs; HF: 100 W (400 W peak), 2 hrs |
System Power Rating: |
Passive mode: 600 W (2400 W peak), 100 hrs (IEC rated) |
Maximum SPL (1m): |
Bi-amp mode: LF: 128 dB-SPL cont avg (134 dB peak); HF: 135 dB-SPL cont avg (141 dB peak); Passive mode: 124 dB-SPL cont avg (130 dB peak) |
System Sensitivity (1w @ 1m): |
Passive mode: 96 dB SPL |
Nominal Impedance: |
8 ohms |
Nominal LF Driver Impedance: |
8 ohms |
Nominal HF Driver Impedance: |
8 ohms |
Enclosure: |
Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
Suspension Attachment: |
15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware |
Environmental: |
Mil-Std 810; IP-x3 per IEC529. |
