Description

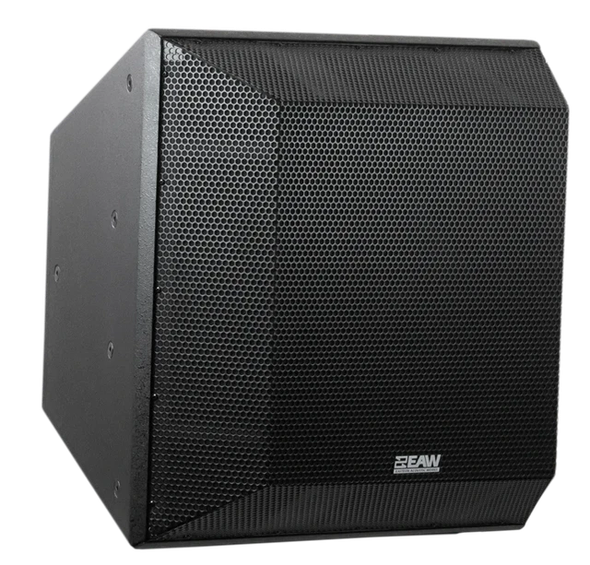

The EAW QX396 is a passive professional loudspeaker within EAW's QX family for sound reinforcement and installed audio. It fits engineered systems where coverage, external amplification, and processing are selected for the venue.
Features
- Driver configuration: LF: 4 × 10 in cone; HF: 1 × 1.4 in exit, 4 in voice coil compression driver
- Operating range: 66 Hz–20 kHz
- Maximum SPL: 142 dB
- Nominal coverage: 90° H × 60° V
- Power handling: LF: 1800 W @ 2 Ω (single amp), 800 W @ 4 Ω (2 × pairs); HF: 150 W @ 8 Ω
- Operating mode: Single-amp LF; DSP
Why We Like This
The QX396 suits systems that keep amplification and processing centralized while using a purpose-built EAW loudspeaker at the coverage point.
FAQs
Q: Do I need a separate amplifier for the QX396?
A: Yes. The QX396 is passive and needs external amplification. Match the amplifier and processing to EAW's guidance for the speaker.
Q: How should I integrate the QX396 with my main speakers?
A: Set crossover, level, polarity, and timing for the complete system using EAW's guidance. Do not assume presets from another speaker combination will be suitable.
Q: What do I need before setting up the QX396?
A: Plan the power or amplification, signal cabling, processing, placement, and approved mounting method before setup.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Connections: |
Barrier strip; 8-pin terminal strip input/output |
Driver Configuration: |
LF: 4 × 10 in cone; HF: 1 × 1.4 in exit, 4 in voice coil compression driver |
EAW Technologies: |
EAW Focusing, Phase Aligned LF, Symmetry of Sources, Beamwidth Matched Crossovers |
Enclosure Material: |
Exterior grade Baltic birch plywood with wear-resistant textured paint |
Finish: |
White |
Input Impedance: |
LF/HF: 8 Ω; LF1, LF2 (each): 4 Ω; LF (total): 2 Ω; HF: 8 Ω |
Maximum SPL: |
142 dB |
Nominal Coverage: |
90° H × 60° V |
Power Handling: |
LF: 1800 W @ 2 Ω (single amp), 800 W @ 4 Ω (2 × pairs); HF: 150 W @ 8 Ω |
Product Height: |
23.7 in |
Product Length: |
19.9 in |
Product Type: |
Passive Loudspeaker |
Product Width: |
23.7 in |
Rigging / Mounting: |
22 × 3/8 in-16 Mounting Points |
