Description

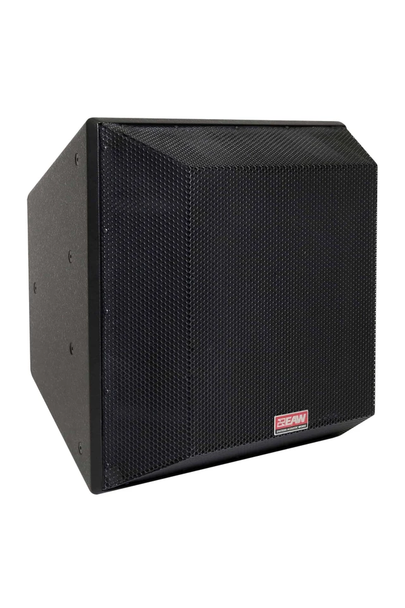

The EAW QX366-WP is a passive professional loudspeaker within EAW's QX family for sound reinforcement and installed audio. It fits engineered systems where coverage, external amplification, and processing are selected for the venue. This ordering SKU is the WP weather-protected configuration.
Features
- Driver configuration: LF: 4 × 10 in cone; HF: 1 × 1.4 in exit, 4 in voice coil compression driver
- Operating range: 66 Hz–20 kHz
- Maximum SPL: 144 dB
- Nominal coverage: 60° H × 60° V
- Power handling: LF: 1800 W @ 2 Ω (single amp), 800 W @ 4 Ω (2 × pairs); HF: 150 W @ 8 Ω
- Weather protection: WP
Why We Like This
The QX366-WP is a practical choice when a project calls for this loudspeaker platform in its documented weather-protected configuration.
FAQs
Q: Do I need a separate amplifier for the QX366-WP?
A: Yes. The QX366-WP is passive and needs external amplification. Match the amplifier and processing to EAW's guidance for the speaker.
Q: How should I integrate the QX366-WP with my main speakers?
A: Set crossover, level, polarity, and timing for the complete system using EAW's guidance. Do not assume presets from another speaker combination will be suitable.
Q: Is the QX366-WP designed for outdoor installations?
A: The QX366-WP is weather-protected. Follow EAW's limits for exposure, mounting orientation, drainage, and connector protection when using it outdoors.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Connections: |
Barrier strip; 8-pin terminal strip input/output |
Driver Configuration: |
LF: 4 × 10 in cone; HF: 1 × 1.4 in exit, 4 in voice coil compression driver |
EAW Technologies: |
EAW Focusing, Phase Aligned LF, Symmetry of Sources, Beamwidth Matched Crossovers |
Enclosure Material: |
Exterior grade Baltic birch plywood with wear-resistant textured paint |
Finish: |
White |
Input Impedance: |
LF/HF: 8 Ω; LF1, LF2 (each): 4 Ω; LF (total): 2 Ω; HF: 8 Ω |
Maximum SPL: |
144 dB |
Nominal Coverage: |
60° H × 60° V |
Power Handling: |
LF: 1800 W @ 2 Ω (single amp), 800 W @ 4 Ω (2 × pairs); HF: 150 W @ 8 Ω |
Product Height: |
23.7 in |
Product Length: |
19.9 in |
Product Type: |
Passive Loudspeaker |
Product Width: |
23.7 in |
Rigging / Mounting: |
22 × 3/8 in-16 Mounting Points |
Weather Protection: |
WP |
