Description

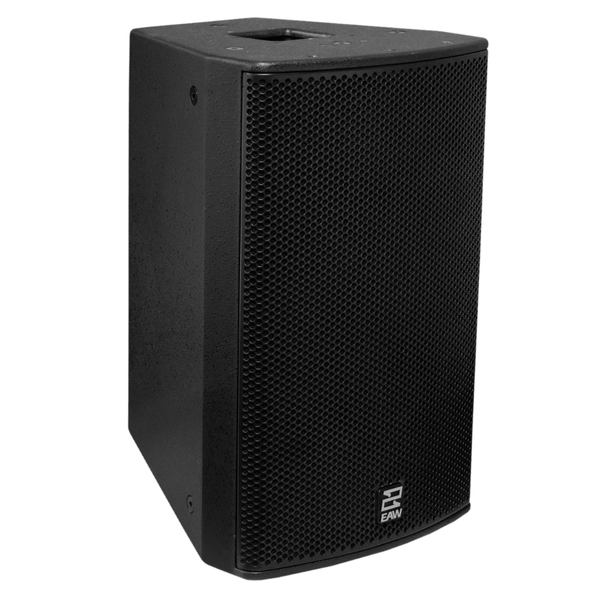

The EAW MKC120MTPL-WP is a passive professional loudspeaker within EAW's MKC family for sound reinforcement and installed audio. It fits engineered systems where coverage, external amplification, and processing are selected for the venue. This ordering SKU is the MTPL-WP weather-protected configuration, the transformer-equipped configuration.
Features
- Driver configuration: LF: 1 × 12 in cone, 2.5 in VC, Vented; HF: 1 × 1 in exit, 44 mm voice coil compression driver, Concentric Summation Array (CSA) loaded
- Operating range: 48 Hz–20 kHz
- Maximum SPL: 135 dB
- Nominal coverage: 90° H × 60° V (rotatable)
- Power handling: 600 W @ 8 Ω
- Weather protection: MTPL-WP
Why We Like This
The MKC120MTPL-WP is a practical choice when a project calls for this loudspeaker platform in its documented weather-protected configuration.
FAQs
Q: Do I need a separate amplifier for the MKC120MTPL-WP?
A: Yes. The MKC120MTPL-WP is passive and needs external amplification. Match the amplifier and processing to EAW's guidance for the speaker.
Q: How do I connect the MKC120MTPL-WP to my amplifier?
A: The MKC120MTPL-WP connects through barrier strip; 2 × NL4. Check EAW's wiring and pinout information before making cables or terminations.
Q: Can the MKC120MTPL-WP connect to a distributed speaker system?
A: Yes. The MKC120MTPL-WP has a transformer for distributed speaker systems. Confirm the available taps and wiring before installation.
Q: Will the MKC120MTPL-WP cover my audience area?
A: That depends on the room, aiming, and seating geometry. Model the coverage before deciding speaker placement and quantity.
Q: Is the MKC120MTPL-WP designed for outdoor installations?
A: The MKC120MTPL-WP is weather-protected. Follow EAW's limits for exposure, mounting orientation, drainage, and connector protection when using it outdoors.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Connections: |
Barrier strip; 2 × NL4 |
Driver Configuration: |
LF: 1 × 12 in cone, 2.5 in VC, Vented; HF: 1 × 1 in exit, 44 mm voice coil compression driver, Concentric Summation Array (CSA) loaded |
EAW Technologies: |
EAW Focusing, DynO, Symmetry of Sources, Concentric Summation Array (CSA), Beamwidth Matched Crossovers |
Finish: |
White |
Input Impedance: |
8 Ω |
Maximum SPL: |
135 dB |
Nominal Coverage: |
90° H × 60° V (rotatable) |
Power Handling: |
600 W @ 8 Ω |
Product Height: |
22.4 in |
Product Length: |
13.4 in |
Product Type: |
Passive Loudspeaker |
Product Width: |
14.5 in |
Recommended High-Pass Filter: |
45 Hz, 12 dB/oct |
Rigging / Mounting: |
U-Bracket Ceiling mount bracket Metal wall mount bracket |
Transformer Equipped: |
Yes |
Weather Protection: |
MTPL-WP |
