Description

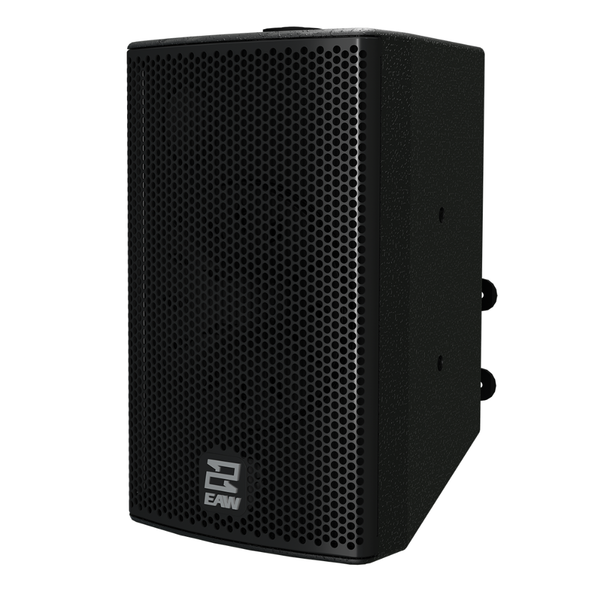

The EAW MKC80PL-WP is a passive professional loudspeaker within EAW's MKC family for sound reinforcement and installed audio. It fits engineered systems where coverage, external amplification, and processing are selected for the venue. This ordering SKU is the PL-WP weather-protected configuration.
Features
- Driver configuration: LF: 1 × 8 in cone, 2 in VC, Vented; HF: 1 × 1 in exit, 35 mm voice coil compression driver, Concentric Summation Array (CSA) loaded
- Operating range: 60 Hz–20 kHz
- Maximum SPL: 132 dB
- Nominal coverage: 90° H × 60° V (rotatable)
- Power handling: 450 W @ 8 Ω
- Weather protection: PL-WP
Why We Like This
The MKC80PL-WP is a practical choice when a project calls for this loudspeaker platform in its documented weather-protected configuration.
FAQs
Q: Do I need a separate amplifier for the MKC80PL-WP?
A: Yes. The MKC80PL-WP is passive and needs external amplification. Match the amplifier and processing to EAW's guidance for the speaker.
Q: How do I connect the MKC80PL-WP to my amplifier?
A: The MKC80PL-WP connects through barrier strip; 2 × NL4. Check EAW's wiring and pinout information before making cables or terminations.
Q: Will the MKC80PL-WP cover my audience area?
A: That depends on the room, aiming, and seating geometry. Model the coverage before deciding speaker placement and quantity.
Q: Is the MKC80PL-WP designed for outdoor installations?
A: The MKC80PL-WP is weather-protected. Follow EAW's limits for exposure, mounting orientation, drainage, and connector protection when using it outdoors.
Q: What mounting hardware do I need for the MKC80PL-WP?
A: Mounting options for the MKC80PL-WP include U-Bracket Ceiling mount bracket Metal wall mount bracket. Use EAW-approved hardware and have suspended installations designed by a qualified professional.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Connections: |
Barrier strip; 2 × NL4 |
Driver Configuration: |
LF: 1 × 8 in cone, 2 in VC, Vented; HF: 1 × 1 in exit, 35 mm voice coil compression driver, Concentric Summation Array (CSA) loaded |
EAW Technologies: |
EAW Focusing, DynO, Symmetry of Sources, Concentric Summation Array (CSA), Beamwidth Matched Crossovers |
Finish: |
White |
Input Impedance: |
8 Ω |
Maximum SPL: |
132 dB |
Nominal Coverage: |
90° H × 60° V (rotatable) |
Power Handling: |
450 W @ 8 Ω |
Product Height: |
16.6 in |
Product Length: |
10.5 in |
Product Type: |
Passive Loudspeaker |
Product Width: |
10.0 in |
Recommended High-Pass Filter: |
60 Hz 12 dB/oct |
Rigging / Mounting: |
U-Bracket Ceiling mount bracket Metal wall mount bracket |
Weather Protection: |
PL-WP |
