Description

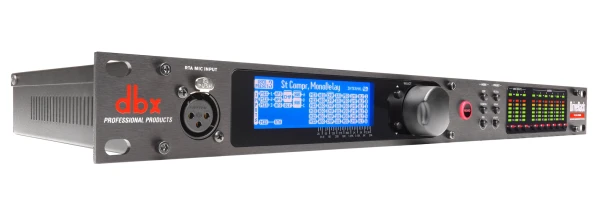

The dbx DriveRack VENU360 is a 3-input, 6-output loudspeaker management processor that sits between the mixer and amplifiers to optimize and protect a PA system. It combines AutoEQ, Advanced Feedback Suppression, crossover, EQ, dynamics, delay, speaker tunings, and network control from iOS, Android, macOS, or Windows devices.

Features

dbx Compression
AFS™ (Advanced Feedback Suppression)
31-Band Graphic EQ
12-Band Parametric EQ (with narrow notch capabilities)
Subharmonic Synthesis
Backline Delay
Noise Gate
Crossover (supports full range up to mono 6-way systems)
12-Band AutoEQs (8 AutoEQ bands, 4 User bands)
Automatic Gain Control
Tower Delays (up to 1000ms per output)
8-Band Parametric EQs (used for speaker tunings)

Why We Like This

It offers deeper routing and processing than a basic PA controller while keeping setup practical through wizards, speaker tunings, and full network control.

FAQs

Q: What does the dbx DriveRack VENU360 do?
A: It combines loudspeaker-system processing such as EQ, crossover, feedback suppression, dynamics, limiting, and delay in one rackmount processor.

Q: Does the dbx DriveRack VENU360 support automatic system tuning?
A: Yes. The DriveRack platform includes guided setup tools and AutoEQ functions; a compatible measurement microphone is required for acoustic measurement.

Q: Can the dbx DriveRack VENU360 be controlled remotely?
A: Remote-control options depend on the model. PA2 and VENU360 support network control apps, while the DriveRack 260 supports computer control through its published interface.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

A/D Converter:	24-bit with dbx Type IV™ Conversion System
A/D Dynamic Range:	117 dB A-weighted, 114 dB unweighted, 22 kHz BW
Alignment Delay:	Up to 1000 ms per output channel
Brand:	dbx
CMRR:	> 50 dB @ 1 kHz
Country of Origin:	CN
D/A Converter:	24-bit
D/A Dynamic Range:	116 dB A-weighted, 113 dB unweighted, 22 kHz BW
DIM H (in.):	11.25
DIM L (in.):	22
DIM W (in.):	3.65
Dimensions:	1.75” (H) x 8.0” (D) x 19” (W), 4.4cm (H) x 20.32cm (D) x 48.26cm (W)
Frequency Response:	20 Hz – 20 kHz, +0 /- 0.5 dB
Input:	(3) analog line inputs/(2) AES digital inputs (shared connectors), (1) RTA mic input
Input Connectors:	(3) female XLRs (2 selectable between analog/AES digital audio formats), (1) female XLR RTA mic input
Input Impedance:	> 30 kΩ, balanced line to line
Input Type:	Electronically balanced/RF filtered
Interchannel Crosstalk:	< -97 dB, -105 dB typical 20-20 kHz, +4 dBu, all channels measured
Internal Processing Wordlength:	32-bit floating point
Latency:	Analog input to output: 2.57 ms (48 kHz), 2.28 ms (96 kHz); Digital AES input to output: 2.31 (48 kHz), 2.15 ms (96 kHz)
Link:	https://dbxpro.com/en-US/products/driverack-venu360
MAP:	1290
MSRP:	1610
Max Input Level (line inputs):	> +28 dBu, balanced, ≤1% THD
Max Output Level:	+22 dBu, balanced, ≤1% THD
Model:	DriveRack VENU360
Operating Voltage:	100-240 VAC 50/60 Hz
Output:	(6) Line Outputs
Output Connectors:	Male XLR
Output Impedance:	120 Ω, balanced line to line
Output Type:	Electronically balanced, RF filtered
Power Consumption:	18 W
Product Description Long:	3X6 Loudspeaker Management System
Product Description Short:	DriveRack
Product Type:	3-Input/6-Output Loudspeaker Management System
RTA Mic Preamp Phantom Power:	+48 VDC
SKU:	DBXVENU360-V
Supported Sample Rates:	48/96 kHz (32-192 kHz using sample rate conversion)
System Performance Dynamic Range:	114 dB A-weighted; 110 dB unweighted
TAA Compliance:	Non Compliant
THD+Noise:	0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain
Type IV Dynamic Range:	129 dB with transient material, A-weighted, 22 kHz BW; 126 dB with transient material, unweighted, 22 kHz BW; 121 dB typical with program material, A-weighted, 22 kHz BW
UPC:	691991401497
Unit Weight:	5.48 lbs. (2.49 kg)
Weight (lb.):	7.5
