Description

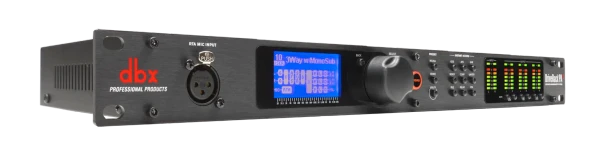

The dbx DriveRack PA2 is a complete loudspeaker management processor that helps optimize and protect a powered or amplifier-driven PA system. Its setup wizards, AutoEQ, Advanced Feedback Suppression, crossover, EQ, limiting, delay, and network control make system tuning faster and more repeatable.
Features
- dbx Compression
- AFS™ (Advanced Feedback Suppression)
- Graphic EQ
- 8-Band Parametric EQ (adjusted when using the AutoEQ)
- Subharmonic Synthesis
- Crossover (supports full range, 2-way, and 3-way systems)
- 8-Band Parametric EQs (used for speaker tunings)
- dbx Limiting
- Driver Alignment Delays
- All New Setup Wizard
- Streamlined AutoEQ™
- All New AFS™ (Advanced Feedback Suppression)
Why We Like This
The guided setup and remote-control workflow take much of the guesswork out of PA tuning while still providing the core processing needed to protect and optimize speakers.
FAQs
Q: What does the dbx DriveRack PA2 do?
A: It combines loudspeaker-system processing such as EQ, crossover, feedback suppression, dynamics, limiting, and delay in one rackmount processor.
Q: Does the dbx DriveRack PA2 support automatic system tuning?
A: Yes. The DriveRack platform includes guided setup tools and AutoEQ functions; a compatible measurement microphone is required for acoustic measurement.
Q: Can the dbx DriveRack PA2 be controlled remotely?
A: Remote-control options depend on the model. PA2 and VENU360 support network control apps, while the DriveRack 260 supports computer control through its published interface.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
A/D Converter: |
dbx Type IV™ Conversion System |
A/D Dynamic Range: |
112 dB A-weighted, 110 dB unweighted |
Alignment Delay: |
10ms per channel (60ms total) |
Brand: |
dbx |
CMRR: |
> 45dB |
Country of Origin: |
TW |
D/A Dynamic Range: |
112 dB A-weighted, 110dB unweighted |
DIM H (in.): |
11.5 |
DIM L (in.): |
22 |
DIM W (in.): |
4 |
Dimensions: |
1.75” (H) x 5.75” (D) x 19” (W), 4.4cm (H) x 14.6cm (D) x 48.26cm (W) |
Dynamic Range: |
>110 dB A-weighted, >107dB unweighted |
Frequency Response: |
20Hz – 20kHz, +/- 0.5dB |
Input: |
(2) line inputs. (1) RTA Mic input |
Input Connectors: |
(2) Female XLR line inputs. (1) Female XLR RTA Mic input |
Input Delay Length: |
100ms |
Input Impedance: |
>50 kohm |
Input Type: |
Electronically balanced/RF filtered |
Interchannel Crosstalk: |
< -110 dB, -120dB typical (input-to-output: < -100 dB) |
Link: |
https://dbxpro.com/en-US/products/driverack-pa2 |
MAP: |
655 |
MSRP: |
820 |
Max Output: |
+20dBu |
Mic Preamp Equivalent Input Noise (EIN): |
< -117dB, 22Hz-22kHz, 150 ohm (RTA) |
Mic Preamp Phantom Power: |
+15VDC (RTA) |
Model: |
DriveRack PA2 |
Output: |
(6) Line Outputs |
Output Connectors: |
Male XLR |
Output Impedance: |
120 Ω |
Output Type: |
Electronically balanced, RF filtered |
Power Consumption: |
22 W |
Product Description Long: |
2x6 PA Management System |
Product Description Short: |
DriveRack |
Product Type: |
Complete Loudspeaker Management System |
SKU: |
DBXPA2-V-TW |
Sample Rate: |
48kHz |
TAA Compliance: |
Non Compliant |
THD+Noise: |
0.003% typical at +4dBu, 1kHz, 0dB input gain |
Type IV Dynamic Range: |
123 dB with transient material, A-weighted, 22kHz BW; 121 dB with transient material, unweighted, 22kHz BW; 115 dB typical with program material, A-weighted, 22kHz BW |
UPC: |
691991033773 |
Unit Weight: |
5.25 lbs. (2.4 kg) |
Weight (lb.): |
6.5 |
