Description

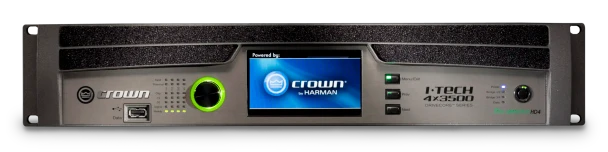

The Crown I-Tech 4x3500HD is a high-output touring amplifier built for large-format sound reinforcement. It combines powerful Class-I amplification, advanced onboard DSP, network monitoring, precision limiting, and flexible analog and digital input options in a rugged rackmount platform engineered for demanding professional systems.
Features
- High-output professional touring amplification
- Advanced onboard DSP with FIR filtering and LevelMAX limiting
- Network monitoring and control through HARMAN software
- Analog and AES digital audio inputs
- Power factor correction for consistent performance on varying AC mains
- Large front-panel display for metering and setup
- Preset storage and loudspeaker processing
- Rugged rackmount construction for touring systems
Why We Like This
It is built for systems where output, processing precision, remote visibility, and touring reliability all matter at the same time.
FAQs
Q: How much power does the Crown I-Tech 4x3500HD deliver?
A: It is a 4-channel amplifier rated at 4000W per channel for the primary published load condition.
Q: What speaker systems can the I-Tech 4x3500HD drive?
A: It is designed for low-impedance speaker systems; exact supported loads and bridge modes are listed in the technical specifications.
Q: Does the I-Tech 4x3500HD include DSP or network control?
A: Yes. I-Tech HD amplifiers provide onboard DSP and network monitoring/control, with analog and AES digital inputs.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
Crown |
Channels: |
4 inputs, 4 outputs (Analog, AES 3, VDrive, CobraNet) |
Common Mode Rejection: |
>80dB typical |
Country of Origin: |
MX |
Crosstalk: |
>80dB |
DIM H (in.): |
7 |
DIM L (in.): |
23 |
DIM W (in.): |
23 |
Damping Factor: |
>5000 |
Dimension (HxWxD): |
89mm x 483mm x 431mm3.5in x 19in x 16.9in |
Frequency Response: |
±0.25dB |
Intermodulation Distortion (from 0 dB down to -40 dB): |
0.06% |
Model: |
I-Tech 4x3500HD |
Net Weight: |
13.2kg (29lbs) |
Power Connector: |
32A PowerCON |
Product Type: |
Four-Channel Touring DSP Power Amplifier |
SKU: |
4X3500HDB-U-USFX |
Sensitivity: |
Adjustable in 0.1dB increments from 1.28Vrms to 8Vrms |
Signal to Noise Ratio: |
≥108dB |
TAA Compliance: |
Compliant |
THD (full rated power, 20 Hz - 20 kHz): |
0.35% |
UPC: |
691991008023 |
