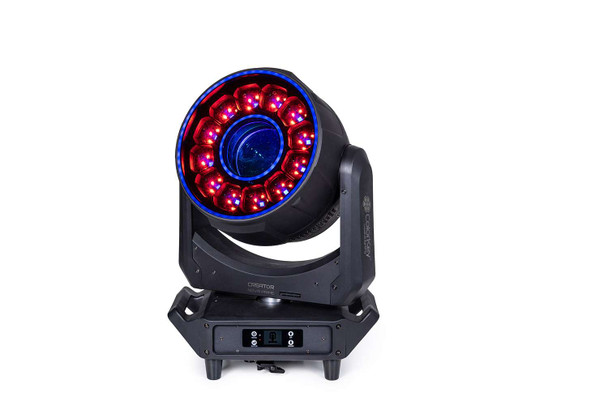

ColorKey Creator Nova Prime

ColorKey’s Flagship fixture, the Creator Nova Prime combines a 200W Beam with 12 NovaCell™ lenses.

Create a variety of looks, from wide angle soft ambient washes to a razor-sharp beam with gobos and prisms. The ColorKey Creator Nova Prime puts the full power of a lighting rig into one moving head. Built for creators who refuse to think small.

Four independent light engines make the Creator Nova Prime unlike anything else on stage.

Unlike conventional moving heads built around a single output, the Creator Nova Prime combines a 200W beam with 12 NovaCell™ lenses, and two halo rings. Each independently controllable for chases, layered color effects, and visual depth that a single-source fixture simply can’t replicate

NovaCell™

12 NovaCell™ Lenses featuring combined LED light engines for an unapparelled wash, wide wish, and pixel effects. Independent LED control unlocks layered color dynamics and eye-catching pixel movement. All NovaCell™ lenses are mounted on a zoomable head to transition between wash mode and aerial pixel mode.

Beam Me Up

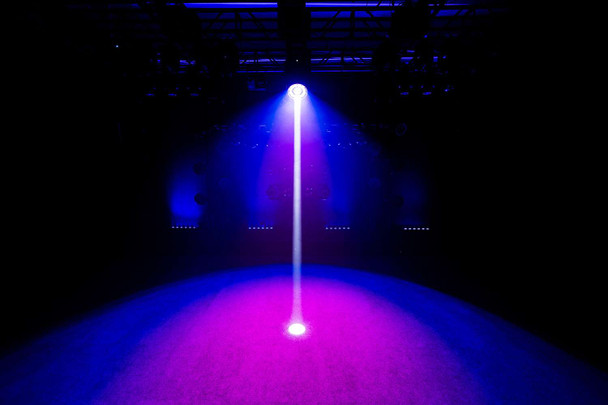

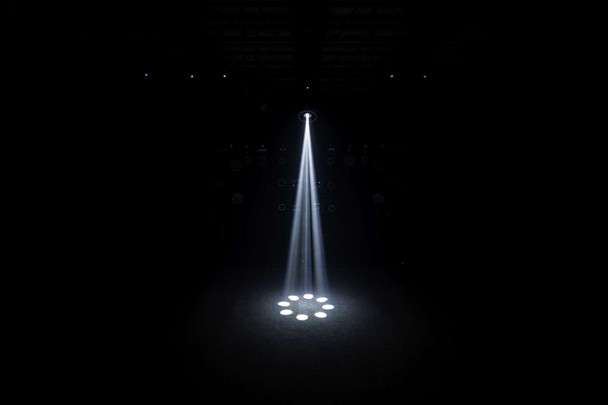

At its core, a razor sharp 2° 200W beam punches through the atmosphere. Equipped with multiple prisms, 10 gobos, 13 colors, frost filter, and motorized focus for dialing in your light show.

Features

• 200W beam with dual prisms, gobo wheel, color wheel, and adjustable focus for precise beam shaping
• A frost filter diffuses the beam, reducing its intensity and harshness.
• 12 NovaCell™ Lenses combining 12× 40W RGBW COB LEDs with 72 x 5W RGBA SMD LEDs.
• Independent COB and SMD LED control unlocks layered color dynamics and eye-catching pixel movement
• Seamless transition from an expansive wide wash to a tight punchy beam, or get both effects simultaneously within a single fixture.

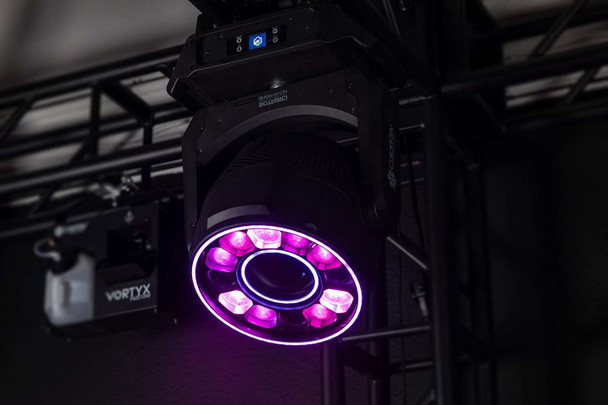

• UHX™ Enabled: Dual halo with harmonious programing capabilities when paired with other UHX™ fixtures.

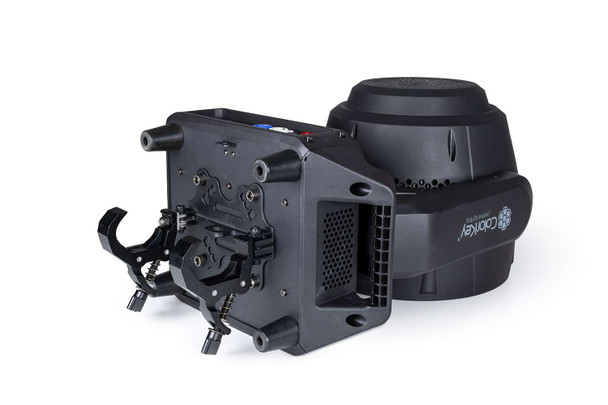

• Dual folding clamps mounted to the base for fast, secure rigging without additional hardware

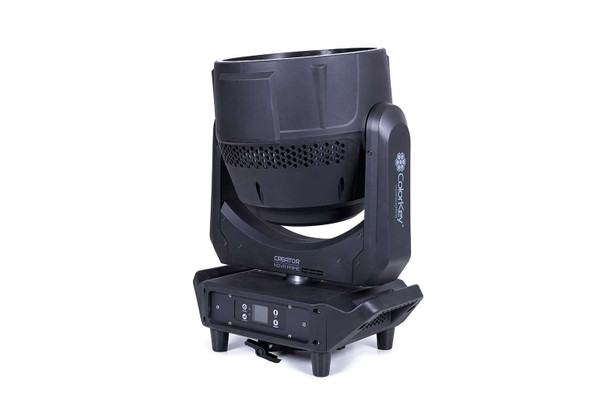

• Color LCD display for intuitive navigation.

Technical Specifications

Light Sources

• 200W White Beam
• 12 x 40W COB RGBW LEDs – Wash and Pixel Effect
• 72 x 5W SMD RGBA LEDs – Wash and Pixel Effect
• 2 x RGB Halos

Beam

• Color Wheel (13 colors + white)
• Gobo Wheel (10 Gobos + open)
• Two Prisms (16 + 8 Facet)
• Beam Angle: 2°
• Motorized Focus

NovaCell™

• COB LEDS
  • Beam Angel: 31° to 8°
  • Field Angle: 46°
  • Illuminance (31°): 7,840 Lux @ 2m
  • Illuminance (8°): 107,000 lux @ 2m
  • CTC: 2800k – 8000k
• SMD LEDs
  • Beam Angle: 52°
  • Illuminance (52°): 520 lux @ 2m
• Zoom and Rotate

Control

• Control Protocols: DMX512, RDM, Auto, Sound Active
• DMX Channels: 46 / 94CH

Electrical

• Max Power: 900W
• Max Power Linking: 10A
• Protection Class: Category 1
• Voltage: AC100-240V 50/60Hz

Dimensions

• Light Size: 10.6 x 17.3 x 21.7 in (27 x 44 x 55 cm)
• Box Size: 17.32 x 25.59 x 20.87 in (44 x 65 x 53 cm)
• Weight: 67 lb (30.4 kg)

Why We Like This

The Creator Nova Prime combines the capabilities of multiple lighting fixtures into one powerful moving head. Its 200W beam engine, NovaCell™ wash and pixel system, dual halo effects, motorized zoom, professional optics, and extensive DMX control make it an exceptionally versatile fixture for designers seeking maximum creativity with fewer fixtures.

FAQs

Q: What types of lighting effects does the Creator Nova Prime produce?
It combines beam, wash, pixel mapping, gobos, prisms, frost, and halo effects in a single moving head.

Q: What is NovaCell™ technology?
NovaCell™ combines 40W RGBW COB LEDs and 5W RGBA SMD LEDs within each lens, allowing independent control for advanced wash, color, and pixel effects.

Q: Does the fixture support pixel mapping?
Yes. Independent control of the COB and SMD LEDs enables sophisticated pixel mapping and animated lighting effects.

Q: Which control protocols are supported?
The fixture supports DMX512, RDM, Auto, and Sound Active modes with 46- and 94-channel DMX personalities.
