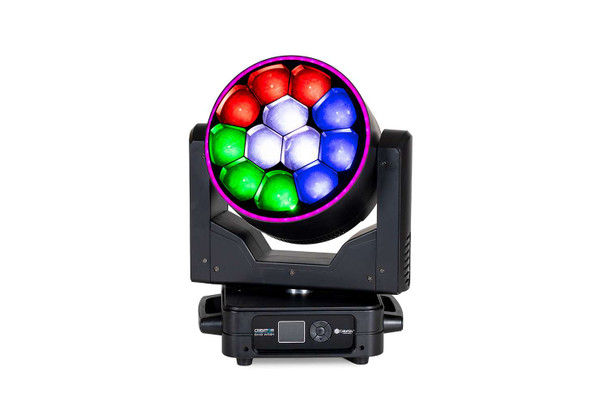

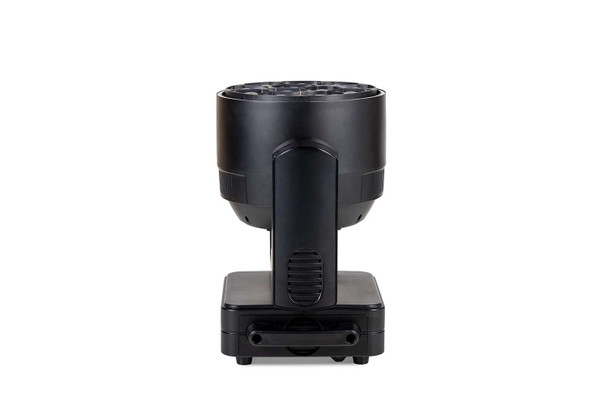

ColorKey Creator BX12 Wash

The ColorKey Creator BX12 Wash is a versatile Bee-Eye luminaire powered by twelve 40W RGBW LEDs.

At its core, the BX12 functions as a high-output RGBW wash light, delivering vibrant, even color coverage across a wide zoom range. With zoom fully wide, it gives a lush, soft wash, perfect for bathing the stage or audience in color. Individual pixel control of each LED segment combined with infinite rotation of the front lens cluster create a mesmerizing flower or kaleidoscope-style effect that adds motion and depth to your lighting look.When zoomed in tight, the BX12 acts more like a beam effect, where the individual pixels produce crisp, concentrated rays that can spin, chase, or dance independently. As part of the Creator Series, the Creator BX12 Wash features a multicolor UHX™ halo around the lenses, designed to deliver consistent control, effects, and visual identity across Creator series and other compatible UHX™ fixtures. Frame Set position control mode is designed to keep the light beams from going where you don’t want them, like the back wall or your audience’s eyes.

Features

• 480W LED moving head Bee-Eye luminaire perfect for washing the stage or audience in color
• Motorized Zoom transitions the BX12 from a wide wash to a narrow beam.
• The front lens cluster can rotate continuously in both directions, creating either a mesmerizing flower / kaleidoscope-style effect or a breathing wash effect depending on zoom setting. This adds motion and depth to your lighting look.
• With individual pixel control, each LED segment can be assigned its own color and intensity, creating chase patterns, color waves, and animated effects.
• Includes 50 preset pixel patterns for stunning chases and looks without the need for custom pixel mapping.
• UHX (Unified Halo Experience) Fixture. The RGB halo around the beam synchronizes with other UHX fixtures with pre-programmed chases, patterns, and color mixing.
• Create versatile light shows with independent dimmer and strobe control of wash and halo.
• Precise light direction is made effortless with Frame Set position control right out of the box. Frame Forward keeps your light focused on the party – not the back wall – while Frame Up limits tilt to keep beams out of your audience’s eyes.
• DMX Hold keeps current values in case of signal loss.

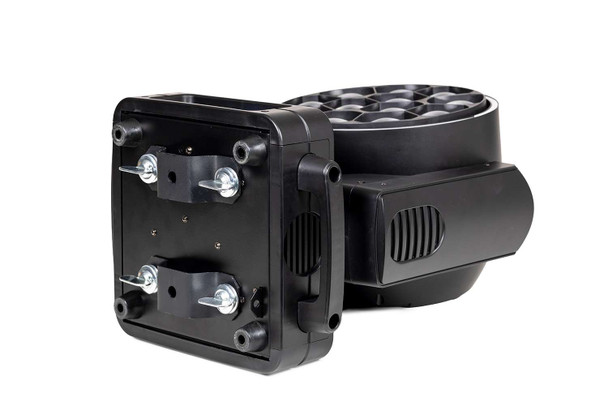

• Includes quick-release bracket to simplify setup and teardown.
• Color LCD display for intuitive navigation.

Technical Specifications

• Light Source: 12 x 40W RGBW LEDs
• Halo: 84 x .2 W RGB LEDs, with rich built-in dynamic effects
• Color Temperature: 2,800K – 8,500K
• Illuminance:
  • 5° – 111,700 lux @ 2 meters
  • 18° – 17,600 lux @ 2 meters
• Zoom Beam Angle: 5-25°
• Wash Field Angle: 30°
• Strobe: 1-30 Hz
• Dimmer: 0-100% linear dimming
• Movement: Pan: 540° + fine, Tilt: 250° + fine
• DMX Channel: 25 / 73 CH
• Control Mode: DMX512, Auto, Master-slave, Sound Active, RDM
• Display: 1.77-inch LCD Display

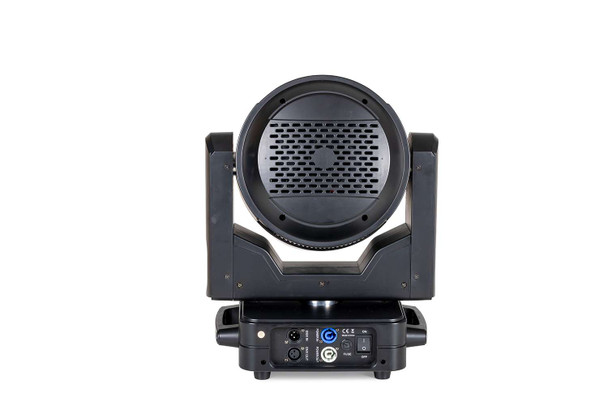

• Power Connection: PowerCon Locking in/out
• DMX Connectors: 3-pin DMX in/out
• LED Lifetime: 50,000 hours
• Max Power Consumption: 500W
• Voltage: AC100-240V, 50/60 Hz
• Size: 13.2 x 9.8 x 15.9 in (33.5 x 25 x 40.5 cm)
• N.W.: 29lbs (13.15kg)
