Description

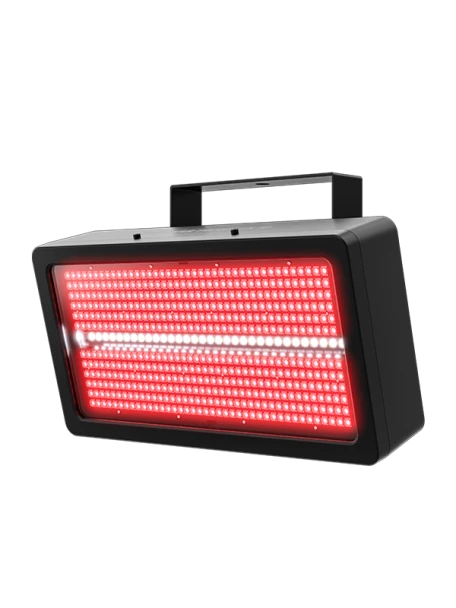

The CHAUVET DJ Shocker Panel FX IP combines color washes, white strobe hits and blinder effects in a compact IP65-rated fixture for indoor and outdoor events. Eight RGB sections and eight cool-white sections give you room to build chases and layered looks, while built-in macros provide effects you can select from the display or trigger through DMX.

Features

16 controllable sections combine 8 RGB zones with 8 cool-white zones for segmented effects.
480 tri-color LEDs and 32 cool-white LEDs produce color washes, white flashes and blinder looks.
IP65-rated housing supports outdoor event use.
Neutrik TRUE1 power input and output connections support power linking while maintaining water resistance.
Integrated GORE valve allows the housing to breathe and helps prevent internal humidity buildup.
Built-in effect macros can be selected from the display or triggered through DMX.
Touch-sensitive digital display includes password protection for fixture settings.
8-, 18-, 34- and 47-channel DMX modes use 5-pin XLR connections.
119° beam angle and 158° field angle provide broad coverage; strobe rate adjusts from 0 to 20 Hz.
Power linking supports up to 6 fixtures at 120 V or 11 fixtures at 230 V.

Why We Like This

The separate RGB and white sections make this useful when a show needs more than a single full-panel flash. You can build movement across the face, then switch to a broad wash or white hit from the same fixture. For event crews working indoors and outdoors, the IP65 housing also makes it easier to keep one fixture type in the inventory.

FAQs

Q: Can I use it for outdoor events?
A: Yes. The fixture is IP65 rated for outdoor use. Follow the manual’s installation and connection requirements to maintain its weather protection.

Q: Can I run effects without a DMX controller?
A: Yes. Built-in macros can be selected directly from the fixture display. DMX control is available when you want to integrate those effects into a programmed show.

Q: Can I control the RGB and white sections separately?
A: Yes. There are 8 RGB sections and 8 white sections. Choose a DMX personality with the level of section control your show requires.

Q: Which carry bag does CHAUVET DJ recommend?
A: The optional CHS-25 VIP Gear Bag is the recommended transport bag.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

Approvals:	CE, ROHS, MET
Beam Angle:	119°
Cable Length:	5 ft (1.5 m)
DMX Channels:	8, 18, 34 or 47
DMX Connectors:	5-pin XLR
Field Angle:	158°
IP Rating:	IP65
Illuminance:	1,131 lux @ 2 m
Included Items:	Shocker Panel FX IP; Power cable; PowerCON to bare end (EU only); Quick Reference Guide
Input Voltage:	100 to 240 VAC, 50/60 Hz (auto-ranging)
Item Code:	07052727
Light Source:	480 LEDs (tri-color) 2W, (1A), 50,000 hours life expectancy; 32 LEDs (cool white) 1.8 W (0.5 A), 50,000 hours life expectancy
Lumens:	13,626
Max Output Current:	12 A (6 units @ 120 V) (11 units @ 230 V)
Model:	Shocker Panel FX IP
Operating Temperature:	-22 °F to 113 °F (-30 °C to 45 °C)
Power Linking:	6 units @ 120 V; 11 units @ 230 V
Power and Current:	238 W, 2 A @ 120 V, 60 Hz; 231 W, 1 A @ 230 V, 50 Hz
Product Type:	LED Strobe Wash and Blinder
Size:	12.9 x 5.1 x 6.8 in (330 x 130 x 173 mm)
Startup Temperature:	-4 °F to 113 °F (-20 °C to 45 °C)
Strobe Rate:	0 to 20 Hz
