Description

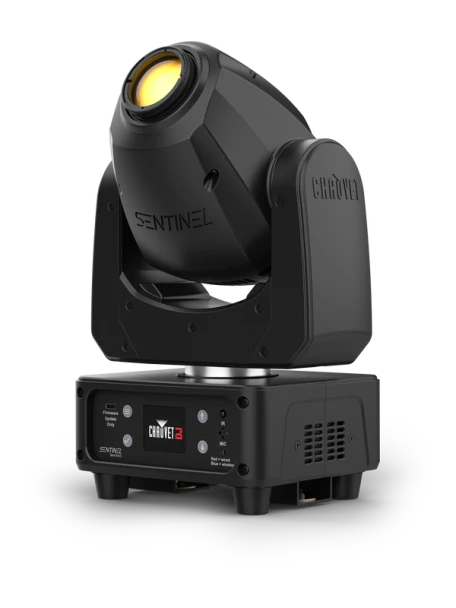

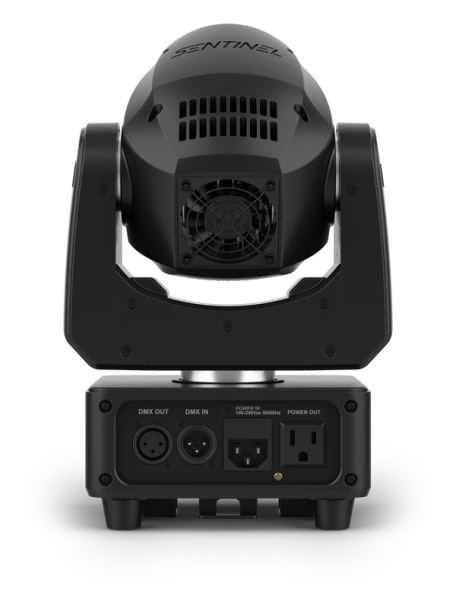

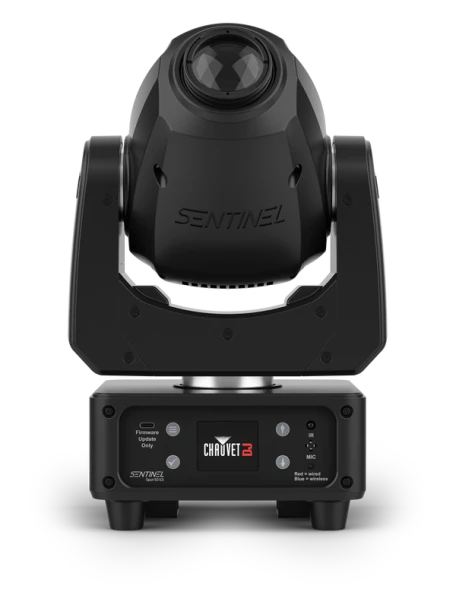

The CHAUVET DJ Sentinel Spot 50 ILS brings moving beams, color changes and gobo patterns to mobile DJ sets, weddings and parties. Its 50W LED produces a 16° beam, while built-in wireless DMX and ILS connectivity give you several ways to fit it into your lighting setup. Totem mode keeps the movement focused on the dance floor.
Features
- 50W 11,000 K LED delivers 1,888 lumens and 8,575 lux at 2 m through a 16° beam.
- Separate color and gobo wheels provide 9 colors plus open and 9 aluminum gobos plus open, with variable-speed scrolling.
- Built-in D-Fi transceiver communicates DMX or ILS signals wirelessly.
- ILS compatibility supports coordinated operation within the ILS ecosystem.
- Totem mode limits movement to keep the light focused on the dance floor.
- Selectable pan ranges of 180°, 360° or 540° and tilt ranges of 90°, 180° or 229° adapt movement to the setup.
- 5- and 11-channel DMX modes use 3-pin XLR connections.
- Full-color LCD provides access to fixture settings; optional IRC and ILS Command controllers are supported.
- Power linking supports up to 8 fixtures at 120 V or 12 fixtures at 230 V.
Why We Like This
For a mobile DJ working different rooms each weekend, the useful combination is controlled movement and flexible signal routing. Totem mode helps keep the show where the crowd is, and the built-in D-Fi transceiver means you can add wireless control without mounting a separate receiver on the fixture.
FAQs
Q: Do I need an external receiver for wireless DMX?
A: No. The fixture has a built-in D-Fi transceiver for wireless DMX or ILS signals. Your control setup still needs a compatible signal source.
Q: Is a remote control included?
A: No. IRC and ILS Command are listed as optional controllers. The included items are the fixture, power cord, hanging bracket and Quick Reference Guide.
Q: Which carry bag fits this fixture?
A: CHAUVET DJ recommends the optional CHS-40 VIP Gear Bag.
Q: Can I restrict how far the head moves?
A: Yes. You can select pan and tilt ranges in the fixture settings. Totem mode is also available to keep movement focused on the dance floor.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Approvals: |
CE, RoHS, FCC |
Beam Angle: |
16° |
Bracket Mounting Hole: |
M12 |
Cable Length: |
5 ft (1.52 m) |
Colors: |
9 + open, split colors, continuous scroll at variable speeds |
DMX Channels: |
5 or 11 channels |
DMX Connectors: |
3-pin XLR |
Gobos: |
9 + open (9 aluminum), continuous scroll at variable speeds |
Illuminance: |
8,575 lux @ 2 m |
Included Items: |
Sentinel Spot 50 ILS; Power cord; Hanging bracket; Quick Reference Guide |
Input Voltage: |
100 to 240 VAC, 50/60 Hz (auto-ranging) |
Item Code: |
10012800 |
Light Source: |
1 LED (11,000 K) 50 W, (3A), 50,000 hours life expectancy. |
Lumens: |
1,888 |
Model: |
Sentinel Spot 50 ILS |
Optional Controllers: |
IRC, ILS Command |
Pan and Tilt: |
540°/229° |
Pan and Tilt Ranges: |
180°, 360°, 540° pan/90°, 180°, 229° tilt |
Power Linking: |
8 units 120 V; 12 units 230 V |
Power and Current: |
68 W, 1.3 A @ 120 V, 60 Hz; 68 W, 0.7 A @ 230 V, 50 Hz |
Product Type: |
LED Moving Head Spot |
Size: |
10.3 x 6.1 x 12.5 in (261 x 156 x 319 mm) |
Strobe Rate: |
0 to 20 Hz |
