Description

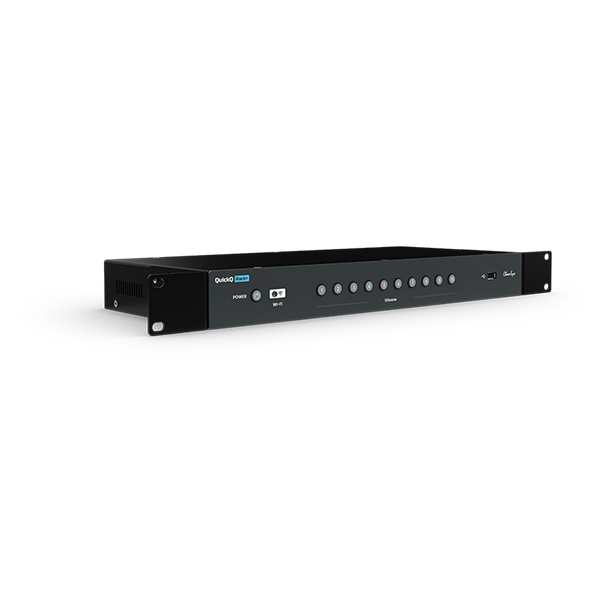

The ChamSys QuickQ Rack+ puts QuickQ lighting control into a compact installation controller. It provides ten onboard playback/execute buttons and works with 10Scene wall plates for recalling programmed lighting looks. Two RDM-enabled DMX outputs serve local fixture lines, while Art-Net and sACN support up to six universes. Supplied rack ears let you mount it in a rack or use it as a desktop unit.

Features

Up to 6 universes of Art-Net or sACN network output.

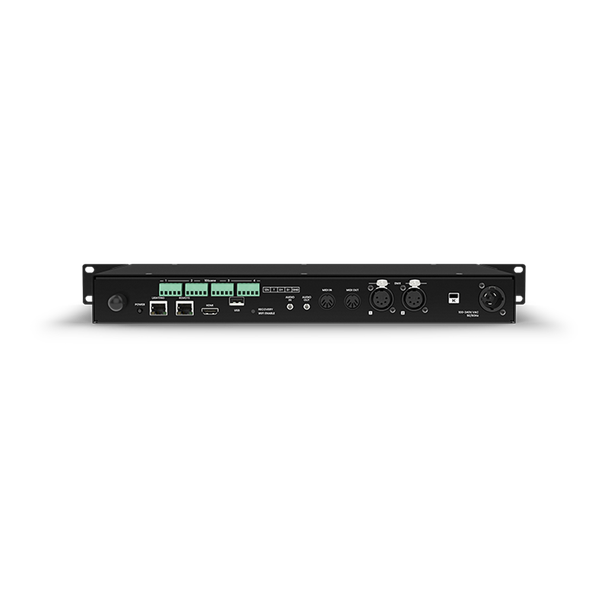

2 RDM-enabled 5-pin DMX outputs with automatic patching of compatible fixtures.

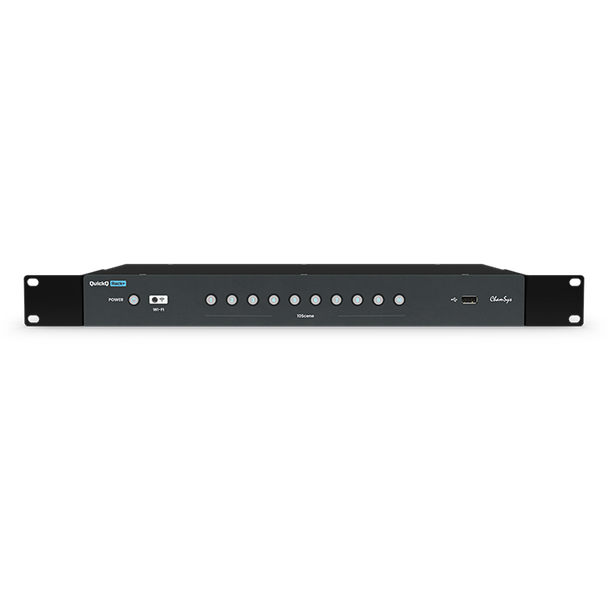

Ten onboard playback/execute buttons and four 10Scene ports for installation control.
Hot-takeover mode allows an external console to take control.
Supplied rack ears support rack installation; the unit can also be used on a desktop.
Dual network ports allow lighting and control data to be separated.
Built-in Wi-Fi for connection to the free QuickQ remote app.
Built-in effects generator, color picker, and gel library.
MIDI input/output, MIDI timecode, and OSC support.

Why We Like This

For an installed system, staff often need to recall a look without working at a full lighting desk. Rack+ supports that workflow with wall-panel control, while hot takeover lets an external console take control when an event needs a dedicated operator.

FAQs

Q: Does Rack+ have a built-in touchscreen and fader surface?
A: It is designed for remote operation rather than a conventional console surface. It has ten onboard playback/execute buttons, supports the QuickQ remote app, and provides HDMI output for an external monitor.

Q: Are 10Scene wall plates included?
A: No wall plates are listed among the included accessories. The package lists two rack ears, four 10Scene connectors, and one True1 powerCON cable.

Q: Does it provide six physical DMX outputs?
A: No. It has two 5-pin DMX outputs. Its six-universe capacity is available through Art-Net or sACN; additional physical DMX lines require suitable network-to-DMX conversion.

Q: Can a visiting operator use an external console?
A: Yes. The published software features include a simple hot-takeover mode that allows an external console to take control.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

10Scene Buttons:	10
10Scene Ports:	4
5-Pin DMX Outputs:	2
Audio Input:	1
Audio Output:	1
Built-In Wi-Fi:	Yes
Color Tools:	Color picker; gel library
Effects Generator:	Built-in
External Monitor:	1920 x 1080 HDMI
Hot Takeover:	Supported
Included Accessories:	Rack Mount Ears: 2; 10Scene Connectors: 4; True1 PowerCon Cable: 1
MIDI / MIDI Timecode:	Yes
MIDI Input/Output:	Yes
Maximum 10Scene Zones:	10
Maximum Chases:	2000
Maximum Cue Stacks:	2000
Maximum DMX Channels:	3072
Maximum Fixtures:	3072
Maximum Power Consumption:	60 W
Maximum Universes:	6
Model:	QuickQ Rack+
Network Ports:	2
Network Protocols:	Art-Net; sACN
OSC:	Yes
Offline Programming:	Windows; Mac
Power Input:	90–250 V AC
Product Depth:	195mm (7.7 inches)
Product Height:	45mm (1.8 inches)
Product Type:	Installation Lighting Controller
Product Width (without ears):	403mm (15.8 inches)
RDM Auto Patch:	Yes
Shipping Depth:	330mm (13.0 inches)
Shipping Height:	150mm (5.9 inches)
Shipping Width:	480mm (18.9 inches)
USB Ports:	2
