Description

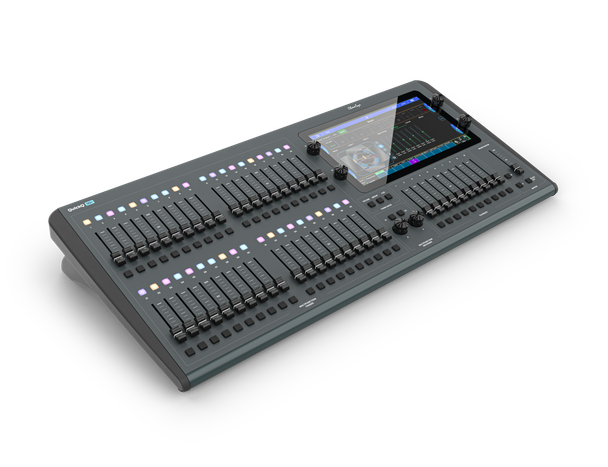

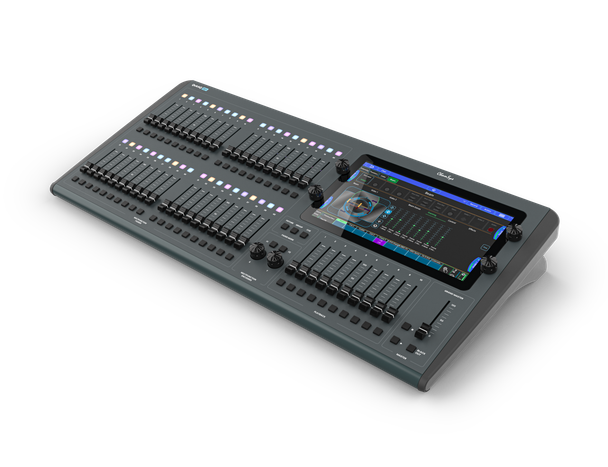

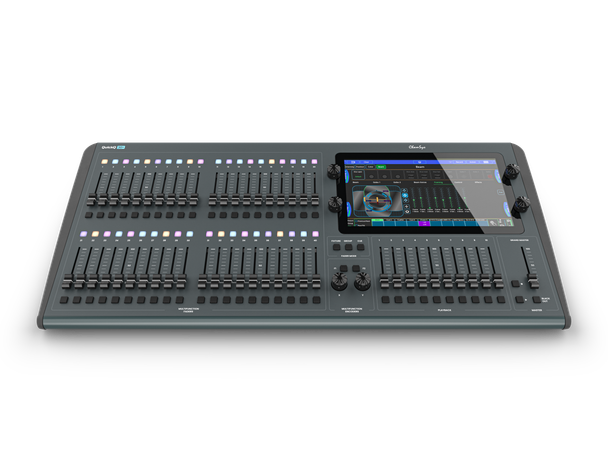

The ChamSys QuickQ 30+ provides room for a larger lighting rig while keeping the QuickQ touchscreen workflow. It controls dimmers, LED fixtures, and moving lights with four direct DMX outputs and up to six universes over Art-Net or sACN. An 11.6-inch multitouch display, twenty fixture faders, and ten playback faders support both programming and hands-on show operation.
Features
- Up to 6 universes of Art-Net or sACN network output.
- 4 RDM-enabled 5-pin DMX outputs with automatic patching of compatible fixtures.
- 11.6-inch multitouch display with an icon-based interface for setup, programming, and playback.
- Ten master playback faders and four attribute encoders for hands-on control.
- 20 multifunction fixture faders with bump buttons.
- Dual network ports allow lighting and control data to be separated.
- Built-in Wi-Fi for connection to the free QuickQ remote app.
- Built-in effects generator, color picker, and gel library.
- MIDI input/output, MIDI timecode, and OSC support.
Why We Like This
Four physical DMX outputs are useful when the rig has several separate fixture runs. You can connect those runs directly at the console and use network output when the installation needs more universes.
FAQs
Q: Are all six universes available on XLR connectors?
A: No. QuickQ 30+ provides four physical 5-pin DMX outputs and supports up to six universes through Art-Net or sACN. A compatible network-to-DMX node is needed for additional physical DMX lines.
Q: Will RDM patch every fixture automatically?
A: Automatic detection and patching applies to RDM-compliant fixtures. Fixtures without RDM must be patched through the console interface.
Q: Can I use an external monitor?
A: Yes. The console supports an external HDMI monitor at 1920 x 1080 resolution.
Q: Can I bring a show programmed on a computer?
A: Yes. Use the free QuickQ offline software for Windows or Mac, save the show to a USB flash drive, and load it onto the console.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
5-Pin DMX Outputs: |
4 |
Attribute Encoders: |
4 |
Audio Input: |
1 |
Audio Output: |
1 |
Built-In Wi-Fi: |
Yes |
Bump Buttons: |
Yes |
Color Tools: |
Color picker; gel library |
Display: |
11.6-inch multitouch |
Effects Generator: |
Built-in |
External Monitor: |
1920 x 1080 HDMI |
Included Accessories: |
USB Desk light: 1; Dust cover: 1; Tablet stand: 1; 12V power supply: 1; IEC power cable: 1 |
MIDI / MIDI Timecode: |
Yes |
MIDI Input/Output: |
Yes |
Master Playback Faders: |
10 |
Maximum Chases: |
2000 |
Maximum Cue Stacks: |
2000 |
Maximum DMX Channels: |
3072 |
Maximum Fixtures: |
3072 |
Maximum Power Consumption: |
60 W |
Maximum Universes: |
6 |
Model: |
QuickQ 30+ |
Multifunction Encoders: |
2 (Color/Intensity/Position control options) |
Multifunction Fixture Faders: |
20 |
Network Ports: |
2 |
Network Protocols: |
Art-Net; sACN |
OSC: |
Yes |
Offline Programming: |
Windows; Mac |
Product Depth: |
350mm (13.8 inches) |
Product Height: |
106mm (4.2 inches) |
Product Type: |
Lighting Control Console |
Product Width: |
760mm (29.9 inches) |
RDM Auto Patch: |
Yes |
Shipping Depth: |
420mm (16.5 inches) |
Shipping Height: |
230mm (9 inches) |
Shipping Width: |
900mm (35.4 inches) |
USB Ports: |
2 |
