Description

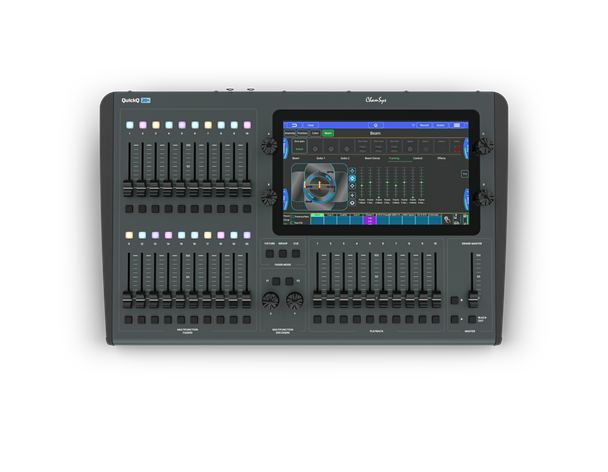

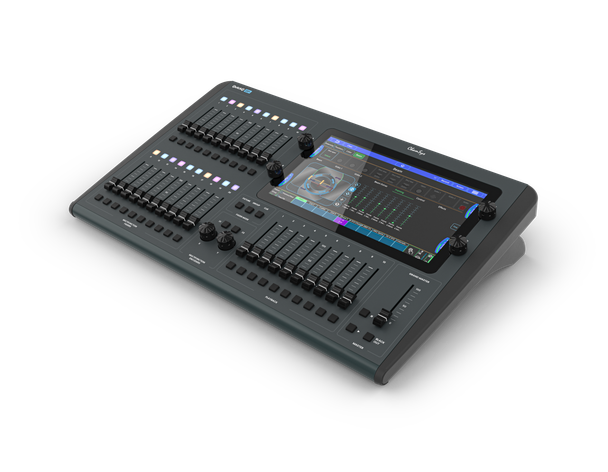

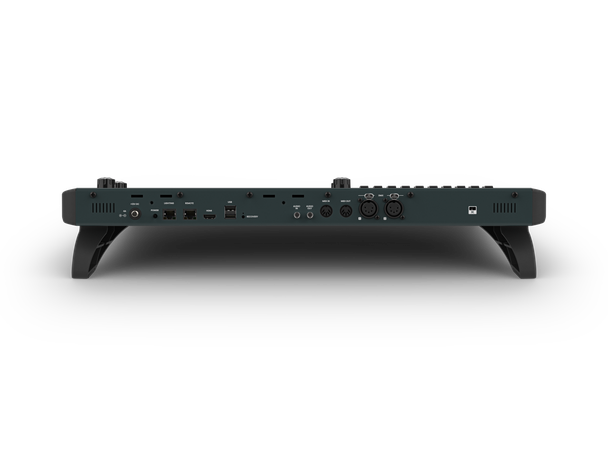

The ChamSys QuickQ 20+ brings dimmers, LED fixtures, and moving lights together on an approachable touchscreen console. Twenty fixture faders, ten playback faders, and four attribute encoders give you physical controls alongside the 11.6-inch display. Two direct DMX outputs handle local fixture runs, with up to four universes available over Art-Net or sACN.

Features

Up to 4 universes of Art-Net or sACN network output.
2 RDM-enabled 5-pin DMX outputs with automatic patching of compatible fixtures.
11.6-inch multitouch display with an icon-based interface for setup, programming, and playback.
Ten master playback faders and four attribute encoders for hands-on control.
20 multifunction fixture faders with bump buttons.
Dual network ports allow lighting and control data to be separated.
Built-in Wi-Fi for connection to the free QuickQ remote app.
Built-in effects generator, color picker, and gel library.
MIDI input/output, MIDI timecode, and OSC support.

Why We Like This

The four attribute encoders make this a practical step up when moving lights join the rig. You can work with fixture parameters at the console while keeping ten playback faders available for the looks and sequences you need during a show.

FAQs

Q: How do I access all four universes?
A: The console has two physical 5-pin DMX outputs. Use Art-Net or sACN for up to four universes of network output. Fixtures that only accept DMX need a compatible network-to-DMX node for additional physical lines.

Q: Can I operate the lights while standing in the room?
A: Yes. Built-in Wi-Fi connects the console to the free QuickQ remote app. The supplied source lists iOS and Android support, and the console displays a QR code to simplify connection.

Q: Can it follow MIDI timecode?
A: Yes. QuickQ 20+ supports MIDI and MIDI timecode and has MIDI input/output connections.

Q: Is a flight case included?
A: The included-accessory list contains a USB desk light, dust cover, tablet stand, 12 V power supply, and IEC power cable. A flight case is not listed.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

5-Pin DMX Outputs:	2
Attribute Encoders:	4
Audio Input:	1
Audio Output:	1
Built-In Wi-Fi:	Yes
Bump Buttons:	Yes
Color Tools:	Color picker; gel library
Display:	11.6-inch multitouch
Effects Generator:	Built-in
External Monitor:	1920 x 1080 HDMI
Included Accessories:	USB Desk light: 1; Dust cover: 1; Tablet stand: 1; 12V power supply: 1; IEC power cable: 1
MIDI / MIDI Timecode:	Yes
MIDI Input/Output:	Yes
Master Playback Faders:	10
Maximum Chases:	2000
Maximum Cue Stacks:	2000
Maximum DMX Channels:	2048
Maximum Fixtures:	2048
Maximum Power Consumption:	60 W
Maximum Universes:	4
Model:	QuickQ 20+
Multifunction Encoders:	2 (Color/Intensity/Position control options)
Multifunction Fixture Faders:	20
Network Ports:	2
Network Protocols:	Art-Net; sACN
OSC:	Yes
Offline Programming:	Windows; Mac
Product Depth:	350mm (13.8 inches)
Product Height:	106mm (4.2 inches)
Product Type:	Lighting Control Console
Product Width:	570mm (22.4 inches)
RDM Auto Patch:	Yes
Shipping Depth:	420 mm (16.5 inches)
Shipping Height:	230 mm (9 inches)
Shipping Width:	680 mm (26.8 inches)
USB Ports:	2
