Description
The award-winning Veritas series from Bose delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer.
Features
- Rated Power, Symmetrical: 1 x 100 W at 70V/100V
- Premium amplification with advanced DSP for optimized performance
- Bluetooth connectivity and RCA connectivity—no wire splicing required
Why We Like This
Automatic music-to-page handling is useful in a business where staff need to make announcements without working through mixer settings.
FAQs
Q: What installation items are included?
A: The listed items are (2) mounting brackets; (6) screws; (4) mounting feet with pins; (1) 4-pin Euroblock connector; (1) 3-pin Euroblock connector; (1) 2-pin Euroblock connector; (1) power cord; (1) installation guide.
Q: What mains power does it accept?
A: The specified mains range is 100–240 VAC (±10%), 50/60 Hz.
Q: How much amplifier power is available?
A: The rated output is 1 x 100 W at 70V/100V.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
A/D and D/A Converters: |
48 kHz / 24-bit |
AC Power Consumption: |
15 W idle, 200 W maximum |
Audio Inputs, Analog — Connectors: |
(2) RCA stereo pairs, (1) XLR/1/4-in, (1) 4-pin Euroblock |
Audio Inputs, Analog — Input Channels: |
(2) unbalanced line, (2) balanced mic/line |
Audio Inputs, Analog — Nominal Input Level: |
0 dBV (line), -40 dBV (page) |
Audio Inputs, Analog — Sensitivity: |
-10 dBV (line), -58 dBV (page) |
Audio Latency: |
10.4 ms (any input to speaker output or aux output) |
Audio Outputs, Analog — Channels: |
(2) loudspeaker, (1) unbalanced line |
Audio Outputs, Analog — Connectors: |
(1) 3-pin inverted Euroblock, (1) RCA stereo pair |
Audio Outputs, Analog — Nominal Output Level: |
1 × 100 W at 70V/100 V (loudspeaker), 0 dBV max (auxiliary) |

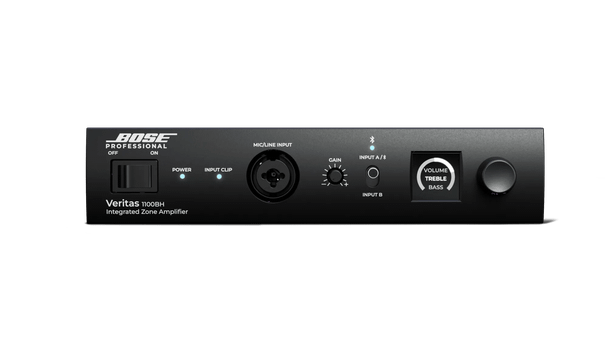

Controls, Front Panel: |
Power on/off switch, input select switch (A/Bluetooth/B), input gain knob (XLR/1/4-in), rotary encoder |
Controls, Rear Panel: |
Input gain knobs (A, B, page), mute connector, ControlCenter port |
Cooling System: |
Natural convection |
Dynamic Range: |
88 dB |
Frequency Response: |
70 Hz – 18 kHz (+0/-4 dB, @ 1 W reference 1 kHz) |
Included Items: |
(2) mounting brackets; (6) screws; (4) mounting feet with pins; (1) 4-pin Euroblock connector; (1) 3-pin Euroblock connector; (1) 2-pin Euroblock connector; (1) power cord; (1) installation guide |
Input Impedance: |
20 kΩ (line), 2.4 kΩ (page) |
Input Range: |
-10 dBV to +10 dBV (line), -60 dBV to +10 dBV (page) |
Mains Connector: |
IEC C14 inlet |
Mains Voltage: |
100–240 VAC (±10%), 50/60 Hz |
Maximum Input Level: |
+10 dBV (line), +10 dBV (page) |
Model: |
Veritas 1100BH 120V US |
Presets: |
70 Hz high-pass filter, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer |
Processing Functions: |
Loudspeaker EQ, Opti-Voice paging, Dynamic EQ |
Product Type: |
Installation amplifier |
Protections: |
High temperature, output short |
Rated Power, Symmetrical: |
1 x 100 W at 70V/100V |
THD+N: |
≤0.3 % (at full rated power) |
Unit of Sale: |
Each |
