Description

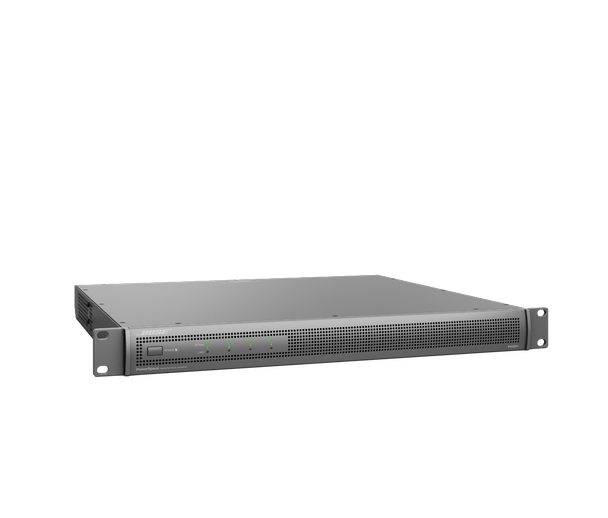

The Bose PowerSpace P4150+ amplifier combines power and DSP into a 1RU, four-channel design for quick-turn installations. Part of a comprehensive platform of loudspeakers, controls, and software that help installers deliver premium commercial sound systems efficiently, Bose PowerSpace+ amplifiers feature a quick-setup workflow.

Features

Rated Power, Symmetrical: 150 W
150 watts per channel and works seamlessly with Bose loudspeakers and controls to create complete commercial sound systems
Built-in DSP , including SmartBass processing, routing, level control, delays, limiters, Bose loudspeaker EQs, plus input and area EQs

Why We Like This

Automatic music-to-page handling is useful in a business where staff need to make announcements without working through mixer settings.

FAQs

Q: What installation items are included?
A: The listed items are (1) 2-pin Euroblock connector; (1) 4-pin Euroblock connector; (2) I-Share jumpers; (10) terminal forks, 14–16 AWG; (5) 3-pin Euroblock connectors; (1) IEC power cord; (1) installation guide; (1) PowerSpace P4150+.

Q: What mains power does it accept?
A: The specified mains range is 100–240 VAC (±10%), 50/60 Hz.

Q: What mounting provisions does it have?
A: Rack-mounting.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

A/D and D/A Converters:	48 kHz / 24-bit
AC Power Consumption:	25 W auto-standby, 325 W maximum
Audio Inputs, Analog — Connectors:	(3) 3-pin Euroblock, (1) 4-pin Euroblock, (2) RCA stereo pairs
Audio Inputs, Analog — Input Channels:	4 balanced, 2 unbalanced
Audio Inputs, Analog — Sensitivity:	-10 dBV, 4 dBu, 14 dBu
Audio Latency:	< 1 ms, analog input to analog loudspeaker output
Audio Outputs, Analog — Channels:	6 (4 loudspeaker + 2 auxiliary)
Audio Outputs, Analog — Connectors:	(1) 8-terminal block, (1) 3-pin Euroblock, line
Channel Separation (Crosstalk):	> 80 dB at 1 kHz, > 65 dB at 20 kHz
Computer Interface Connection:	RJ-45 (Ethernet)

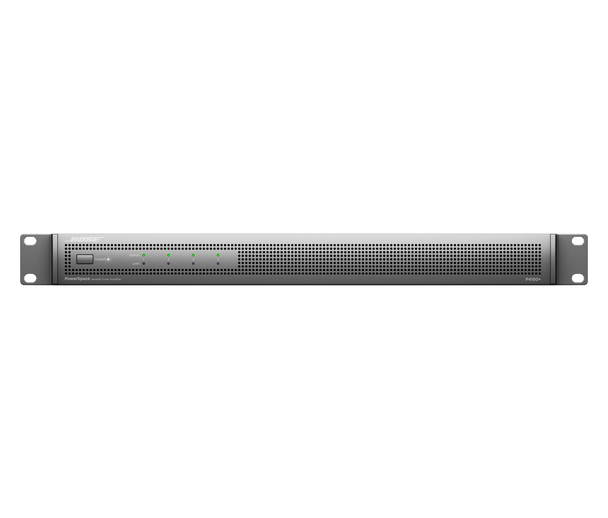

Controls, Front Panel:	(1) power LED, (1) input signal LED, (1) output limit LED

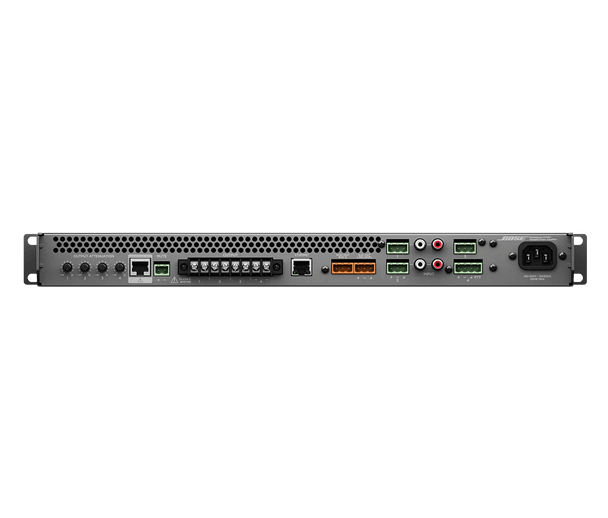

Controls, Rear Panel:	RJ-45 remote input for ControlCenter CC-1, CC-2 and CC-3 zone controllers, mute, output attenuators
Cooling System:	Microprocessor-controlled variable-speed fans, front-to-back air flow
Crossover Types:	Butterworth 6 (±6 dB/octave), Butterworth 12 (±12 dB/octave), Butterworth 18 (±18 dB/octave), Butterworth 24 (±24 dB/octave)
DSP-Enabled:	Yes
Delay:	2 s
Dynamic Range:	≥ 100 dB at rated power, A-weighted
Equalization:	Input: 3-band EQ, paging / Loudspeaker: 9-band PEQ (±20 dB), notch, shelving, high-pass, low-pass, low-frequency compensation / Area : 7-band PEQ (±20 dB), notch, shelving, high-pass, low-pass
Frequency Response:	20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 Ω / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V
Gain, High-Impedance:	35 dB, 70V mode / 38 dB, 100V mode
Gain, Low-Impedance:	29 dB
Included Items:	(1) 2-pin Euroblock connector; (1) 4-pin Euroblock connector; (2) I-Share jumpers; (10) terminal forks, 14–16 AWG; (5) 3-pin Euroblock connectors; (1) IEC power cord; (1) installation guide; (1) PowerSpace P4150+
Input Impedance:	10 kΩ
LED Status Indicators:	(1) power/status LED, (4) input signal LEDs, (4) output limit LEDs
Limiters:	Peak voltage, RMS voltage
Mains Connector:	IEC C14 inlet
Mains Voltage:	100–240 VAC (±10%), 50/60 Hz
Maximum Input Level:	22 dBu at 14 dBu sensitivity
Maximum Peak Power, Symmetrical:	300 W
Model:	PowerSpace P4150+ 120V NA
Number of Channels:	4
Operating Temperature Range:	0 °C to 40 °C (32 °F to 104 °F)
Power Class:	Class D
Presets:	Bose loudspeaker presets
Processing Functions:	Input EQ, loudspeaker EQ, peak voltage limiter, RMS voltage limiter, ControlCenter configuration, matrix mixer, mute/output polarity inversion
Product Type:	Installation amplifier
Rack Spaces:	1
Rated Power, Symmetrical:	150 W
Software Applications:	PowerSpace+ Configuration Utility (web browser)
Suspension/Mounting:	Rack-mounting
System Requirements:	Google Chrome 64.0.3282.140 or later / Mozilla Firefox Quantum 58.0.2 or later / Microsoft Internet Explorer 11.2007.14393.0 or later / Microsoft Edge 38.14393.1066.0 or later
THD+N:	< 0.04% at 1 kHz, 4–8 Ω, 70V/100V
Unit of Sale:	Each
