Description

PowerShareX PSX4804D is a four-channel, 4800-watt smart amplifier designed for use with Bose installed sound systems. Onboard DSP gives you instant access to optimized loudspeaker presets via ControlSpace Designer software with easy ecosystem integration across Bose processors, loudspeakers, and controllers.

Features

Rated Power, Symmetrical: 1500 W per channel at 2 Ω / 1200 W per channel at 4 Ω, 8 Ω, 70V, 100V
Power-sharing technology: Dynamically allocates power evenly or asymmetrically across outputs without having to bridge channels or lose channel count when powering Bose loudspeakers.
Bose certified presets and ControlSpace Designer integration: Delivers the best performance, loudspeaker protection, and visibility of the entire Bose system from a single UI for easy design, configuration, control, and monitoring.

Why We Like This

Sharing the available amplifier power across channels gives the designer more room to accommodate zones with different loudspeaker loads.

FAQs

Q: Which equipment does it work with?
A: 100V, 120V, 230V

Q: What installation items are included?
A: The listed items are (1) 4-pin Euroblock connector; (1) 8-pin Euroblock connector; (3) 12-pin Euroblock connectors; (1) PowerShareX PSX4804D; (1) IEC power cord; (1) installation guide.

Q: What mains power does it accept?
A: The specified mains range is 100–240 VAC (±10%), 50/60 Hz.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

A/D and D/A Converters:	48 kHz / 24-bit
AC Power Consumption:	31.1 W idle, 840 W maximum at 1/8 power at 4 Ω
Audio Inputs, Analog — Connectors:	(1) 6-pin Euroblock
Audio Inputs, Analog — Input Channels:	4 balanced, line
Audio Inputs, Analog — Sensitivity:	4.91 Vrms at 26 dB gain, 3.48 Vrms at 29 dB gain, 2.46 Vrms at 32 dB gain, 1.74 Vrms at 35 dB gain
Audio Inputs/Outputs, Digital — Channels:	4 Dante in
Audio Inputs/Outputs, Digital — Connectors:	(1) RJ-45 Dante in
Audio Latency:	2.5 ms, fixed-latency architecture
Audio Outputs, Analog — Channels:	4
Audio Outputs, Analog — Connectors:	(1) 8-pin Euroblock, 7.62 mm
Channel Separation (Crosstalk):	-70 dB typical at 1 kHz
Color:	Black
Compatibility:	100V, 120V, 230V
Computer Interface Connection:	RJ-45 (Ethernet)
Controls, Front Panel:	(1) power button, (1) soft reset button, (1) hard reset button, (1) check button, (4) channel attenuation controls

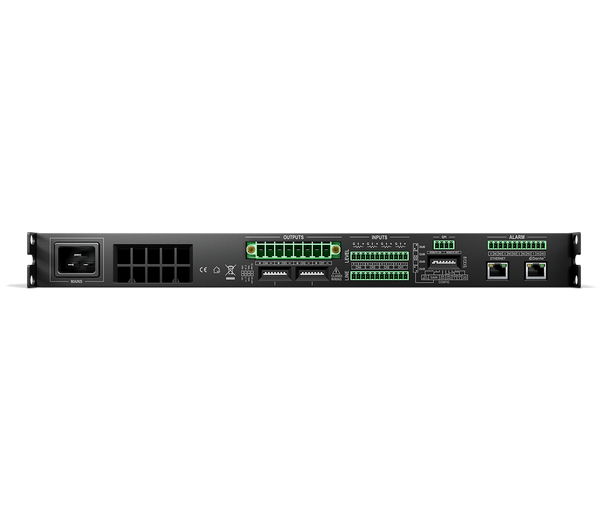

Controls, Rear Panel:	16 output DIP switches (4 per channel), 8 system configuration DIP switches
Cooling System:	Continuous temperature-controlled variable-speed fan, front-to-back airflow
Crossover Types:	Butterworth, Bessel, or Linkwitz-Riley, up to 48 dB/octave
Current Draw, Idle:	0.45 A at 115 VAC, 60 Hz / 0.25 A at 230 VAC, 50 Hz
DSP-Enabled:	Yes
Delay:	2 s (input) + 100 ms (output) for time alignment
Equalization:	Input: 8-band parametric EQ (±15 dB), notch, shelving, high-pass, low-pass / array EQ (ArenaMatch) / band-pass crossover / loudspeaker: 9-band parametric EQ (±15 dB), notch, shelving
Frequency Response:	20 Hz – 20 kHz (±1.0 dB), 1 W at 8 Ω
Gain, Low-Impedance:	26 dB, 29 dB, 32 dB, 35 dB, selectable
Included Items:	(1) 4-pin Euroblock connector; (1) 8-pin Euroblock connector; (3) 12-pin Euroblock connectors; (1) PowerShareX PSX4804D; (1) IEC power cord; (1) installation guide
Input Impedance:	20 kΩ
Internal Precision:	32-bit floating-point
LED Status Indicators:	(21) channel meter LEDs, (7) system status LEDs, (2) power status LEDs
Limiters:	Peak voltage, RMS voltage, clip
Mains Connector:	IEC C20 inlet
Mains Voltage:	100–240 VAC (±10%), 50/60 Hz
Maximum Input Level:	20 dBu
Maximum Peak Power, Asymmetrical:	3600 W at 2 Ω / 5200 W at 4 Ω / 2600 W at 8 Ω / 4200 W at 70V / 4400 W at 100V
Maximum Peak Power, Symmetrical:	3000 W at 2 Ω, 4 Ω / 2400 W at 8 Ω, 70V, 100V
Model:	PowerShareX PSX4804D
Notification Outputs:	(1) 12-pin Euroblock (3 pins per channel), general purpose
Number of Channels:	4
Power Class:	Class D
Presets:	Bose loudspeaker presets
Processing Functions:	Input EQ, array EQ, loudspeaker EQ, peak voltage limiter, RMS voltage limiter, delay, band-pass, matrix mixer
Product Type:	Installation amplifier
Protections:	High temperature, DC, output short circuit, high frequency, excessively low/high AC mains voltage, inrush current, clip, peak, long-term/RMS
Rack Spaces:	1
Rated Power, Asymmetrical:	1800 W at 2 Ω / 2600 W at 4 Ω / 1300 W at 8 Ω / 2100 W at 70V / 2200 W at 100V
Rated Power, Symmetrical:	1500 W per channel at 2 Ω / 1200 W per channel at 4 Ω, 8 Ω, 70V, 100V
SNR:	> 104 dB (A-weighted)
Safety:	EN 54-16 certified, voice alarm control and indicating equipment
Software Applications:	ControlSpace Designer 5.12 or later (Windows)
Suspension/Mounting:	Rack-mounting
THD+N:	< 0.1% (< 0.05% typical, from 0.1 W to half-power)
Type:	6-pin Euroblock
Unit of Sale:	Each
