Description

Put the power where you need it. PowerShare amplifiers deliver outstanding audio performance and reliability with patented technologies inherited from the field-proven Bose PowerMatch line — now with added flexibility.

Features

Rated Power, Symmetrical: 150 W
Integrated Dante audio networking: Support four audio input channels from a Dante network and mix onboard analog inputs with digital Dante inputs as selected in ControlSpace Designer software.
Integrated Loudspeaker Processing: Adjust various parameters using ControlSpace Designer software: nine-band PEQs, matrix mixing, crossover, limiters, delay, mute/output polarity, and more.

Why We Like This

Sharing the available amplifier power across channels gives the designer more room to accommodate zones with different loudspeaker loads.

FAQs

Q: What installation items are included?
A: The listed items are (1) 2-pin Euroblock connector; (1) 8-pin Euroblock connector; (1) 12-pin Euroblock connector; (1) installation guide; (1) PowerShare PS604D; (1) IEC power cord.

Q: What mains power does it accept?
A: The specified mains range is 100–240 VAC (±10%), 50/60 Hz.

Q: What mounting provisions does it have?
A: Rack-mounting.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

A/D and D/A Converters:	48 kHz / 24-bit
AC Power Consumption:	14 W standby, 700 W maximum
Audio Inputs, Analog — Connectors:	(1) 12-pin Euroblock
Audio Inputs, Analog — Input Channels:	4 balanced, line
Audio Inputs, Analog — Sensitivity:	4 dBu low, 12 dBu high
Audio Inputs/Outputs, Digital — Channels:	4 Dante in
Audio Inputs/Outputs, Digital — Connectors:	(2) RJ-45 Dante in/thru
Audio Latency:	< 1 ms, analog input to analog output
Audio Outputs, Analog — Channels:	4
Audio Outputs, Analog — Connectors:	(1) 8-pin inverted Euroblock
Channel Separation (Crosstalk):	> 85 dB at 1 kHz, > 65 dB at 20 kHz
Computer Interface Connection:	RJ-45 (Ethernet, 100 Mbps)
Controls, Front Panel:	(1) power button
Controls, Rear Panel:	Output attenuators, mute contact
Cooling System:	Microprocessor controlled, variable speed fans, left to right air flow
Crossover Types:	Butterworth, Bessel, or Linkwitz-Riley, up to 48 dB/octave
Current Draw, Idle:	0.1 A at 120 VAC, 60 Hz / 0.06 A at 230 VAC, 50 Hz
Current Draw, Inrush:	8.0 A at 120 VAC, 60 Hz / 14.1 A at 230 VAC, 50 Hz
DSP-Enabled:	Yes
Delay:	50 ms, Outputs 3–4 only
Dynamic Range:	100 dB at rated power, A-weighted
Equalization:	Input EQ: 9-band parametric EQ (±18 dB), notch, shelving, high-pass, low-pass / band-pass crossover / loudspeaker EQ: 9-band parametric EQ (±18 dB), notch, shelving
Frequency Response:	20 Hz – 20 kHz (±0.5 dB) at 1 W
Gain, High-Impedance:	35 dB, 70V mode / 38 dB, 100V mode
Gain, Low-Impedance:	32 dB
Included Items:	(1) 2-pin Euroblock connector; (1) 8-pin Euroblock connector; (1) 12-pin Euroblock connector; (1) installation guide; (1) PowerShare PS604D; (1) IEC power cord
Input Impedance:	20 kΩ
LED Status Indicators:	(1) power/status LED, (4) input signal LEDs, (4) output limit LEDs
Limiters:	Peak voltage, RMS voltage
Mains Connector:	IEC C14 inlet
Mains Voltage:	100–240 VAC (±10%), 50/60 Hz
Maximum Input Level:	20 dBu at 12 dBu sensitivity
Maximum Peak Power, Asymmetrical:	1200 W
Maximum Peak Power, Symmetrical:	300 W

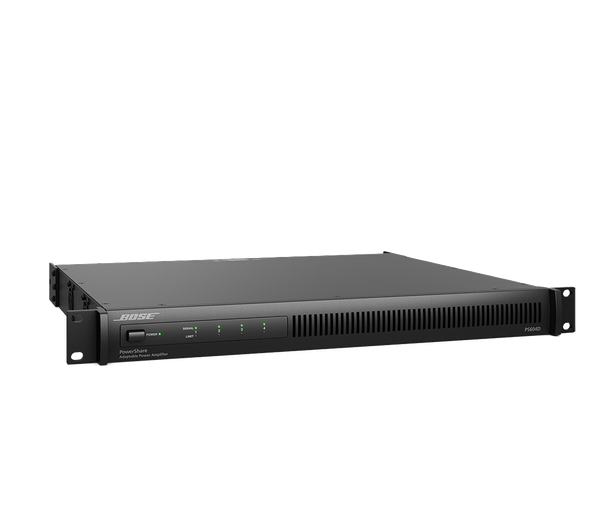

Model:	PowerShare PS604D Adaptable Power Amplifier 120V NA
Number of Channels:	4
Presets:	Bose loudspeaker presets
Processing Functions:	Input EQ, loudspeaker EQ, peak voltage limiter, RMS voltage limiter, delay, band-pass, matrix mixer, mute/output polarity inversion
Product Type:	Installation amplifier
Protections:	High temperature, output short circuit, extra high frequency, excessively low/high AC line voltage
Rack Spaces:	1
Rated Power, Asymmetrical:	600 W
Rated Power, Symmetrical:	150 W
SNR:	100 dB (at rated power, A-weighted)
Software Applications:	ControlSpace Designer 5.4 or later (Windows)
Suspension/Mounting:	Rack-mounting
THD+N:	< 0.04% at 1 kHz, 4–8 Ω, 70V/100V
Type:	12-pin Euroblock
Unit of Sale:	Each
