Description

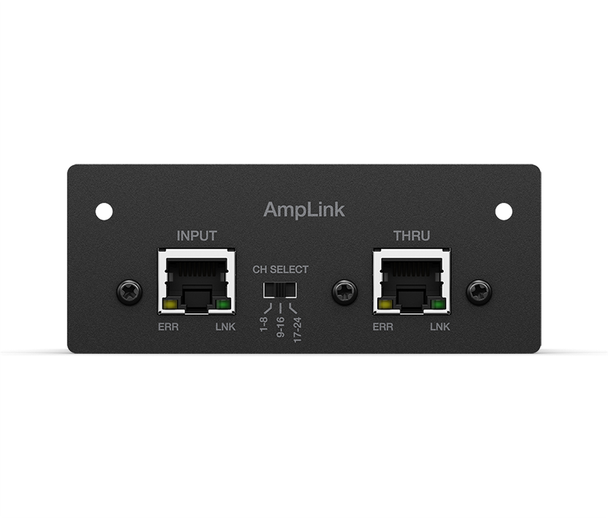

The Bose AmpLink input card for PowerMatch configurable professional power amplifiers installs into the digital expansion slot to receive 24 digital audio channels from a Bose DSP via a shielded Cat 5 cable. Each card includes a through connection for daisy-chaining multiple AmpLink amplifiers.
Features
- AmpLink 24-channel digital audio transport
- Quick-connect RJ-45 connections on shielded CAT 5 cable
- Thru connection to daisy-chain up to 10 m between products
- 3-position bank select switch chooses 8 consecutive AmpLink channels the amplifier will amplify
- Each daisy-chained amplifier can choose either the same, or a different, bank of channels
- AmpLink can daisy-chain up to 8 amplifiers
Why We Like This
Carrying several audio channels over one cable can simplify the link between the processor and amplifiers.
FAQs
Q: What installation items are included?
A: The listed items are (1) PowerMatch expansion card; (1) installation guide.
Q: What cabling should I plan for?
A: Cat 5, shielded TIA/EIA 568B straight cable or equivalent.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Inputs/Outputs, Digital — Channels: |
24 AmpLink in |
Audio Inputs/Outputs, Digital — Connectors: |
(1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru |
Audio Latency: |
24 ns, thru |
Cable Requirements: |
Cat 5, shielded TIA/EIA 568B straight cable or equivalent |
Included Items: |
(1) PowerMatch expansion card; (1) installation guide |
LED Status Indicators: |
(2) network speed LEDs, (2) Link/Act LEDs |
Maximum Cable Length: |
32 ft (10 m) |
Model: |
PowerMatch AmpLink 24-Channel Card |
Product Type: |
Audio network card |
Sample Rate / Bit Depth: |
48 kHz / 24-bit |
Unit of Sale: |
Each |
