Description

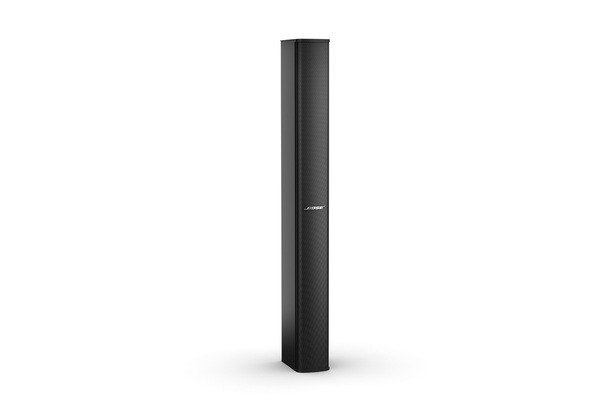

The Bose MSA12X powered beam-steering array loudspeaker is specially engineered to excel in vocal intelligibility and musicality, even in acoustically challenging spaces. Twelve processed and amplified transducers create a precise vertical sound beam that covers the entire audience while reducing disruptive echoes that compromise clarity.
Features
- High-Frequency: 12 × 2.25 in (57 mm)
- Rated Power, Symmetrical: 600 W
- Frequency Range (-10 dB): 58 Hz – 18 kHz
- Coverage, Horizontal: 160°
- Integrated DSP and 600 watts (12 × 50 W) of amplification makes the MSA12X a self-powered and self-processed loudspeaker solution without the requirement for a standalone amplifier or loudspeaker processor.
- Dante digital audio network interface provides one network cable connection for audio source and system control.
Why We Like This
Electronic aiming gives the installer another way to keep sound focused on the audience within the available mounting position.
FAQs
Q: What installation items are included?
A: The listed items are (1) IEC power cord; (1) 3-pin Euroblock connector; (1) installation guide; (1) MSA12X loudspeaker; (1) RJ-50 expansion cable; (2) wall-mounting bracket sets; (12) cable ties; (1) logo; (4) extra M6 flange nuts; (8) M6 hex-head bolts; (1) yaw bracket; (1) power interconnect cord; (1) loudspeaker interconnect bracket.
Q: What mounting provisions does it have?
A: Integrated wall brackets.
Q: How much amplifier power is available?
A: The rated output is 600 W.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
AC Power Connector: |
IEC 60320-C14 |
AC Power Consumption: |
25 W idle, 275 W maximum |
AC Power Input: |
85–264 VAC, 50/60 Hz |
Audio Inputs, Analog — Connectors: |
(1) 3-pin Euroblock, 3.81 mm |
Audio Inputs, Analog — Input Channels: |
1 |
Calculated Maximum SPL @ 1 m: |
103 dB peak (1 module), 102 dB peak (2 modules), 101 dB peak (3 modules) |
Color: |
Black |
Computer Interface Connection: |
RJ-45 (Dante), through network router or switch |
Cooling System: |
Passive cooling only, airflow bottom to top |
Coverage, Horizontal: |
160° |
Coverage, Vertical: |
±30° (1 module), ±40° (2 or 3 modules) |
Enclosure Material: |
Extruded aluminum sidewalls, steel end caps, all powder-coated |
Frequency Range (-10 dB): |
58 Hz – 18 kHz |
Grille: |
Aluminum, powder-coated finish |
High-Frequency: |
12 × 2.25 in (57 mm) |
Included Items: |
(1) IEC power cord; (1) 3-pin Euroblock connector; (1) installation guide; (1) MSA12X loudspeaker; (1) RJ-50 expansion cable; (2) wall-mounting bracket sets; (12) cable ties; (1) logo; (4) extra M6 flange nuts; (8) M6 hex-head bolts; (1) yaw bracket; |
LED Status Indicators: |
Status, signal |
Model: |
MSA12X Powered Beam-Steering Array Loudspeaker Black 120V NA |
Number of Channels: |
12 |
Operation Mode: |
Single Loudspeaker |
Phantom Power: |
No |
Product Type: |
Powered loudspeaker |
Rated Power, Symmetrical: |
600 W |
Sample Rate / Bit Depth: |
48 kHz / 24-bit |
Sensitivity Options: |
0 dBu, +10 dBu, +24 dBu, pad engaged |
Software Applications: |
ControlSpace Designer (Windows) |
Suspension/Mounting: |
Integrated wall brackets |
Unit of Sale: |
Each |
