Description

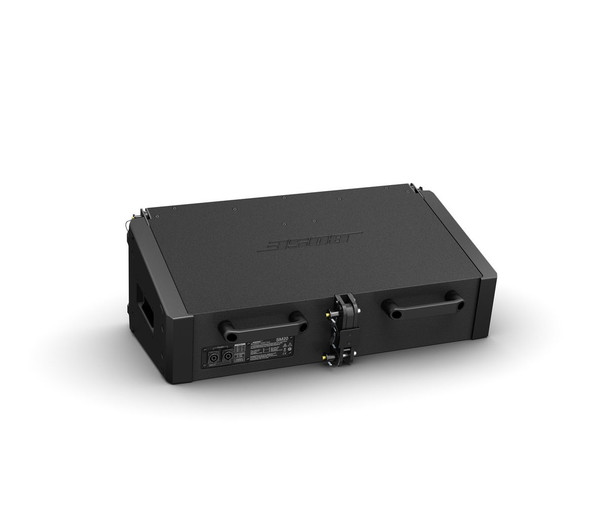

Bose ShowMatch DeltaQ SM20 full-range array modules provide 20° nominal vertical coverage with included field-changeable waveguides offering choice of 70° or 100° horizontal coverage and optional accessory 120° waveguides. Replace single waveguide panel to form horizontal asymmetrical patterns.
Features
- Low-Frequency: 2 × Bose SM8 neodymium 8 in (203 mm) woofers, 3 in (76 mm) voice coil
- High-Frequency: 4 × Bose EMB2S extended-high frequency neodymium compression driver, 2 in (51 mm) voice coil
- Power Handling, long-term continuous: 450 W (low frequency), 100 W (high frequency)
- Frequency Range (-10 dB): 59 Hz – 18,000 Hz
- Coverage, Horizontal: 100°
- Tour-sound output level — 4 × Bose EMB2S compression drivers, improved with more high-frequency output, and 2 × 8-inch neodymium high-power woofers allow array output up to 145 dB SPL.
Why We Like This
Matching the module to the array design helps keep coverage and low-frequency support coordinated across the system.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is 8 Ω (low frequency) + 6 Ω (high frequency).
Q: What installation items are included?
A: The listed items are (1) installation guide; (2) 70° waveguide panels; (1) ShowMatch SM20 module.
Q: What mounting provisions does it have?
A: 3-point quick-pin rigging.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
121 dB (low frequency), 125 dB (high frequency) continuous / 127 dB (low frequency), 131 dB (high frequency) peak |
Color: |
Black |
Coverage, Horizontal: |
100° |
Coverage, Vertical: |
20° |
Crossover: |
750 Hz, acoustic, requires active 2-way crossover in DSP |
Enclosure Material: |
Baltic birch plywood |
Frequency Range (-10 dB): |
59 Hz – 18,000 Hz |
Grille: |
16-gauge (1.5 mm) perforated steel, powder-coated finish |
High-Frequency: |
4 × Bose EMB2S extended-high frequency neodymium compression driver, 2 in (51 mm) voice coil |
Included Items: |
(1) installation guide; (2) 70° waveguide panels; (1) ShowMatch SM20 module |
Low-Frequency: |
2 × Bose SM8 neodymium 8 in (203 mm) woofers, 3 in (76 mm) voice coil |
Model: |
ShowMatch SM20 DeltaQ Array Loudspeaker |
Nominal Impedance: |
8 Ω (low frequency) + 6 Ω (high frequency) |
Power Handling, Peak: |
1800 W (low frequency), 400 W (high frequency) |
Power Handling, long-term continuous: |
450 W (low frequency), 100 W (high frequency) |
Product Type: |
Array loudspeaker |
Sensitivity (SPL/1 W at 1 m): |
94 dB (low frequency), 105 dB (high frequency) |
Suspension/Mounting: |
3-point quick-pin rigging |
Unit of Sale: |
Each |
