Description

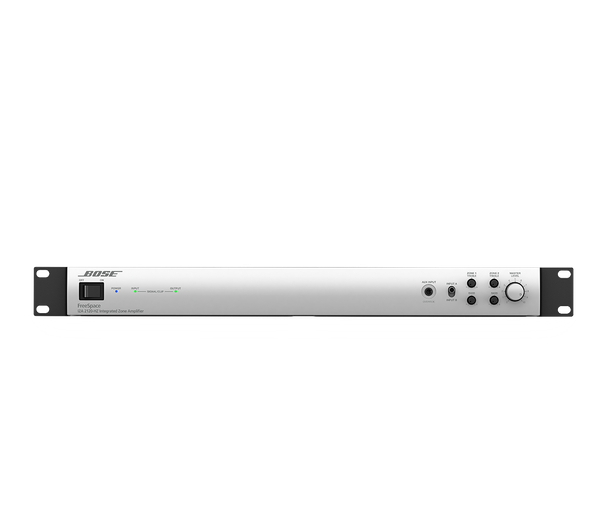

Bose FreeSpace IZA 2120-HZ Amplifier 120V NA. For background/foreground music and paging applications, Bose FreeSpace IZA 2120-HZ integrated zone amplifier elevates the audio experience when using FreeSpace loudspeakers. Optimized for commercial applications, FreeSpace IZA amplifiers feature selectable Loudspeaker EQ to enrich audio quality, Opti-Voice paging for clear speech intelligibility while providing seamless transitions and Dynamic EQ that ensures full and balanced music at any volume level.

Features

Rated Power, Symmetrical: 120 W per channel at 70V, 100V
Independent Loudspeaker EQ per output enriches audio quality and simplifies connection to Bose loudspeakers: FreeSpace 3 systems, FS3 subwoofer, FS2, FS4 and DesignMax DM2

Why We Like This

Automatic music-to-page handling is useful in a business where staff need to make announcements without working through mixer settings.

FAQs

Q: What installation items are included?
A: The listed items are (1) FreeSpace IZA 2120-HZ amplifier; (4) feet with locking pins; (2) 5-pin Euroblock connectors; (3) 4-pin Euroblock connectors; (3) 2-pin Euroblock connectors; (1) AC power cord; (1) owner's guide.

Q: What mains power does it accept?
A: The specified mains range is 100–240 VAC (±10%), 50/60 Hz.

Q: How much amplifier power is available?
A: The rated output is 120 W per channel at 70V, 100V.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

A/D and D/A Converters:	48 kHz / 24-bit
AC Power Consumption:	26 W standby, 300 W maximum
Adjustment Range:	0 dB to -30 dB, line / 0 dB to +50 dB, page / fixed, auxiliary
Audio Inputs, Analog — Connectors:	(2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock, (1) 1/8-in (3.5 mm) TRS
Audio Inputs, Analog — Input Channels:	2 unbalanced, line + 2 balanced, line + 1 balanced, mic/line (page) + 1 unbalanced, line (auxiliary)
Audio Inputs, Analog — Nominal Input Level:	4 dBu, line / -38 dBu, page / -8 dBu, auxiliary
Audio Inputs, Analog — Sensitivity:	-8 dBu, line / -3 dBu, auxiliary / N/A, page
Audio Latency:	10.4 ms (analog input to analog output)
Audio Outputs, Analog — Channels:	2
Audio Outputs, Analog — Connectors:	(2) 2-pin inverted Euroblock, (1) RCA stereo pair
Audio Outputs, Analog — Nominal Output Level:	2 × 120 W at 70V, 100V / 2 dBu (auxiliary)
Channel Separation (Crosstalk):	≤ -58 dBu below rated power, 1 kHz
Controls, Front Panel:	(1) power switch, (1) input selection switch, (2) treble knobs, (2) bass knobs, (1) master level knob

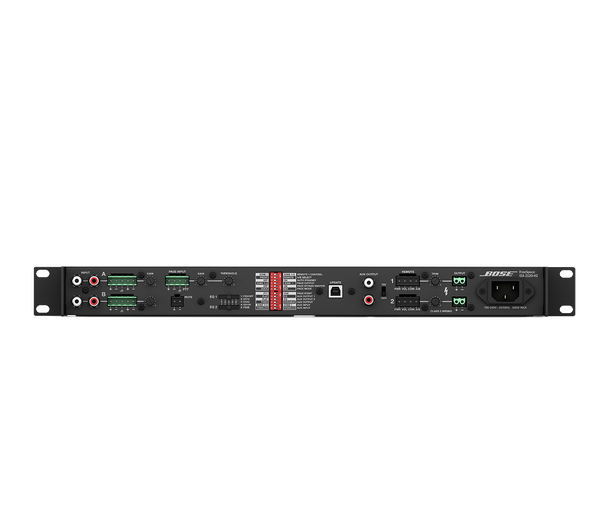

Controls, Rear Panel:	Amplifier Mode DIP switches, Loudspeaker EQ preset selector, Input Gain (A/B/Page), Output trims, Remote (x2)
Cooling System:	Single fan creates continuous left-to-right air flow
Current Draw, Inrush:	6.6 A at 120 VAC, 60 Hz / 12.6 A at 230 VAC, 50 Hz
Dynamic Range:	88 dB
Frequency Response:	55 Hz – 20 kHz (+0 dB/-3 dB) at 1 W, 1 kHz reference
Included Items:	(1) FreeSpace IZA 2120-HZ amplifier; (4) feet with locking pins; (2) 5-pin Euroblock connectors; (3) 4-pin Euroblock connectors; (3) 2-pin Euroblock connectors; (1) AC power cord; (1) owner's guide
Input Impedance:	20 kΩ, line / 2 kΩ, page / 20 kΩ, auxiliary
Input Range:	-8 dBu to +22 dBu, line / -58 dBu to +12 dBu, page / -60 dBu to -1 dBu, auxiliary
LED Status Indicators:	(1) power LED, (1) input signal/clip LED, (1) output signal/clip LED
Mains Connector:	IEC C14 inlet
Mains Voltage:	100–240 VAC (±10%), 50/60 Hz
Maximum Input Level:	22 dBu, line / 12 dBu, page / -1 dBu, auxiliary
Model:	FreeSpace IZA 2120-HZ Amplifier 120V NA
Number of Channels:	2
Output Impedance:	N/A (amplifier) / 400 Ω (auxiliary)
Power Class:	Class D
Presets:	High-pass filter, Bose loudspeaker presets (FreeSpace FS2C/FS2P/FS2SE/FS4CE/FS4SE, FreeSpace 3 Acoustimass & DesignMax DM2C-LP/DM2S/DM3C/DM3SE)
Processing Functions:	Loudspeaker EQ, Opti-Voice EQ (paging), Dynamic EQ (low-end compensation)
Product Type:	Installation amplifier
Protections:	High temperature, output short circuit, excessively low/high AC line voltage
Rack Spaces:	1 RU
Rated Power, Symmetrical:	120 W per channel at 70V, 100V
THD+N:	0.3% at rated power
Unit of Sale:	Each
