Description

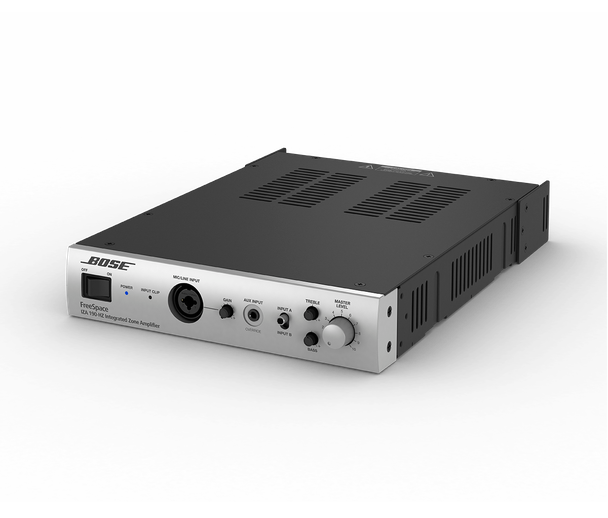

Bose FreeSpace IZA 190-HZ Integrated Zone Amplifier 120V NA. For background/foreground music and paging applications, the Bose FreeSpace IZA 250-LZ and IZA 190-HZ integrated zone amplifiers are designed to deliver premium sound, provide simplified set up and easy daily operation, and offer the flexibility to expand when more loudspeakers are required. When used with FreeSpace FS2 and FS4 loudspeakers, even further sound optimization is possible through onboard selectable EQ presets.

Features

Rated Power, Symmetrical: 90 W at 70V, 100V
End-user friendly front panel allows users to connect devices easily, make tonal adjustments or select between two sources. Optional wall mountable Bose Volume control with A/B switch user interface allows volume and source selection controls to be placed away from the amplifier for user convenience
Compact, lightweight design enables the FreeSpace integrated zone amplifier to be placed out of the way—on a table, desk, counter, shelf or in an equipment rack using the optional Rack Mount Kit accessory

Why We Like This

Automatic music-to-page handling is useful in a business where staff need to make announcements without working through mixer settings.

FAQs

Q: What installation items are included?
A: The listed items are (1) power cord; (4) feet with pins; (1) 4-pin Euroblock connector; (1) 4-pin Euroblock connector; (1) 2-pin Euroblock connector; (1) FreeSpace IZA 190-HZ amplifier; (1) 3-pin Euroblock connector.

Q: What mains power does it accept?
A: The specified mains range is 100–240 VAC (±10%), 50/60 Hz.

Q: How much amplifier power is available?
A: The rated output is 90 W at 70V, 100V.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

A/D and D/A Converters:	48 kHz / 24-bit
AC Power Consumption:	15 W idle, 200 W maximum
Adjustment Range:	-20 dB to +20 dB, line / 0 dB to +50 dB, mic/line / 0 dB to +50 dB, page / fixed, auxiliary
Audio Inputs, Analog — Connectors:	(1) RCA stereo pair, (1) XLR-1/4-in combo, (1) 4-pin Euroblock, (1) 1/8-in (3.5 mm) TRS
Audio Inputs, Analog — Input Channels:	2 unbalanced, line + 1 balanced, mic/line + 1 balanced, mic (page) + 1 unbalanced, line (auxiliary)
Audio Inputs, Analog — Nominal Input Level:	0 dBV, line / -40 dBV, mic/line / -40 dBV, page / 0 dBV, auxiliary
Audio Inputs, Analog — Sensitivity:	0 dBV, auxiliary / N/A, line, mic/line, page
Audio Latency:	10.4 ms (analog input to analog output)
Audio Outputs, Analog — Channels:	1
Audio Outputs, Analog — Connectors:	(1) 3-pin inverted Euroblock, (1) RCA stereo pair
Channel Separation (Crosstalk):	≤ -60 dBV below rated power, 1 kHz

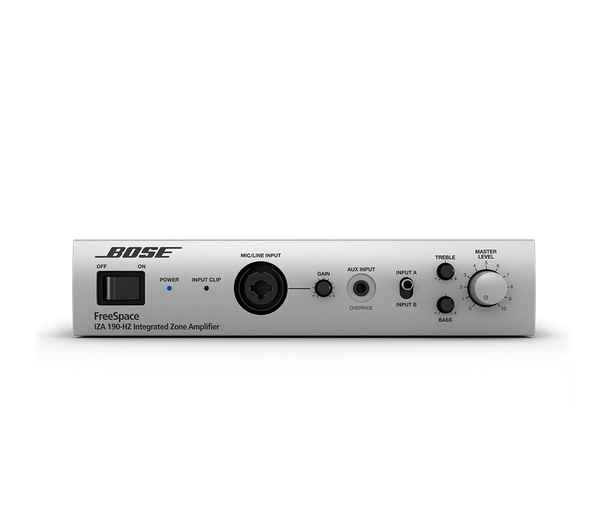

Controls, Front Panel:	(1) power switch, (1) input selection switch, (1) treble knob, (1) bass knob, (1) mic/line gain knob, (1) master level knob

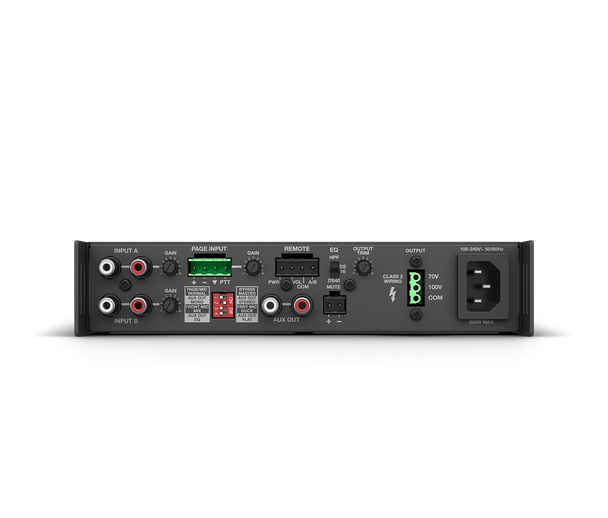

Controls, Rear Panel:	Amplifier Mode DIP switch, Loudspeaker EQ preset selector, Input Gain (A/B/Page mic), Output trim
Cooling System:	Natural convection
Current Draw, Inrush:	7.6 A at 120 VAC, 60 Hz / 13.9 A at 230 VAC, 50 Hz
Dynamic Range:	88 dB
Frequency Response:	60 Hz – 20 kHz (+0 dB/-3 dB) at 1 W, 1 kHz reference
Included Items:	(1) power cord; (4) feet with pins; (1) 4-pin Euroblock connector; (1) 2-pin Euroblock connector; (1) FreeSpace IZA 190-HZ amplifier; (1) 3-pin Euroblock connector
Input Impedance:	20 kΩ, line / 2 kΩ, mic/line / 2 kΩ, page / 20 kΩ, auxiliary
Input Range:	-10 dBV to +10 dBV, line / -60 dBV to +10 dBV, mic/line / -60 dBV to +10 dBV, page / 0 dBV to +10 dBV, auxiliary
LED Status Indicators:	(1) power LED, (1) input clip LED
Mains Connector:	IEC C14 inlet
Mains Voltage:	100–240 VAC (±10%), 50/60 Hz
Maximum Input Level:	+10 dBV
Model:	FreeSpace IZA 190-HZ Integrated Zone Amplifier 120V NA
Number of Channels:	2
Output Impedance:	N/A (amplifier) / 400 Ω (auxiliary)
Power Class:	Class D
Presets:	Flat, Bose loudspeaker presets (FreeSpace FS2C/FS2P/FS2SE/FS4CE/FS4SE)
Processing Functions:	Loudspeaker EQ, Opti-Voice EQ (paging), Dynamic EQ (low-end compensation)
Product Type:	Installation amplifier
Protections:	High temperature, short circuit
Rack Spaces:	1 RU high, half rack wide
Rated Power, Symmetrical:	90 W at 70V, 100V
THD+N:	≤ 1% at full rated power
Unit of Sale:	Each
