Description

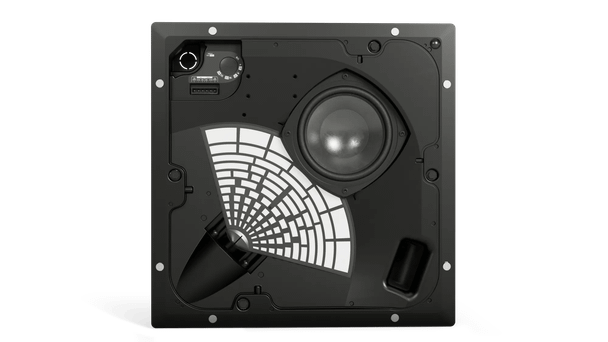

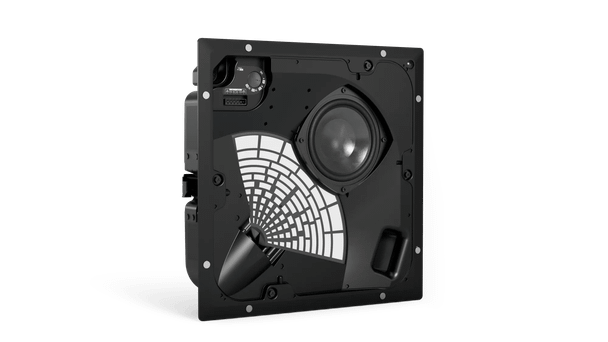

Overview Surface-mount performance sound meets stealth-mode design. EdgeMax loudspeakers combine bold surface-mount performance with stealthy design to shatter the limitations of traditional in-ceiling loudspeakers.
Features

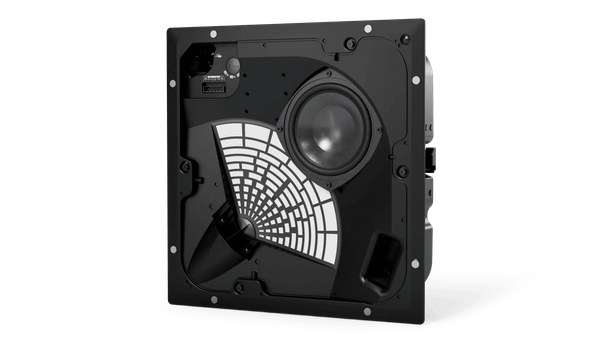

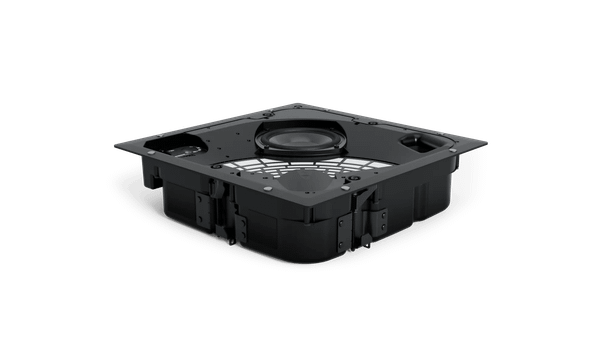

- Low-Frequency: 1 × 5.25-in (133 mm) woofer, 1.5-in (38 mm) voice coil
- High-Frequency: 1 × compression driver, 1.3 in (33 mm) voice coil
- Power Handling, long-term continuous: 32W
- Frequency Range (-10 dB): 45 Hz – 19,000 Hz
- Coverage, Horizontal: 90°
- High-frequency compression driver and high-excursion woofer for exceptional audio quality and power

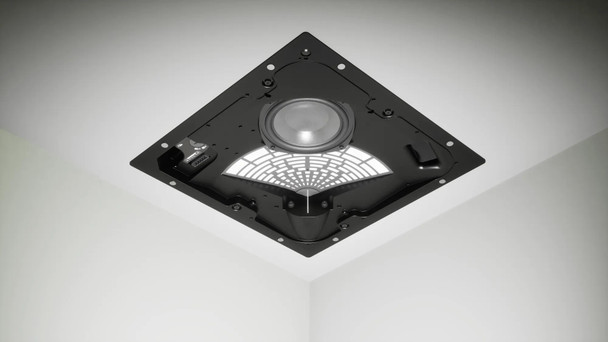

- In-ceiling mounting along room edges and corners ; purpose-built for specific horizontal coverage—90 degrees for corner placement or a wider 180 degrees—ideal for near-field and wide coverage
Why We Like This
The mounting system is a practical advantage when several speakers need to go into a ceiling on the same installation.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is 8 Ω (transformer bypassed). Transformer settings: Transformer Taps, 100V: 8 W, 16 W, 32 W, bypass; Transformer Taps, 70V: 4 W, 8 W, 16 W, 32 W, bypass.
Q: What ceiling opening is needed?
A: The specified cutout is 345 × 345 × 100 mm (13.6 × 13.6 × 4.0 in), length × width × mounting depth.
Q: Where can this speaker be installed?
A: Indoor only.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
110 dB continuous, 116 dB peak |
Ceiling Cutout: |
345 × 345 × 100 mm (13.6 × 13.6 × 4.0 in), length × width × mounting depth |
Color: |
White |
Coverage, Horizontal: |
90° |
Coverage, Vertical: |
80° |
Crossover: |
1 kHz, passive 2-way crossover with integrated 70/100V transformer |
Driver Protection: |
Recommended high-pass protection 55 Hz with minimum 24-dB/octave filter |
Enclosure Material: |

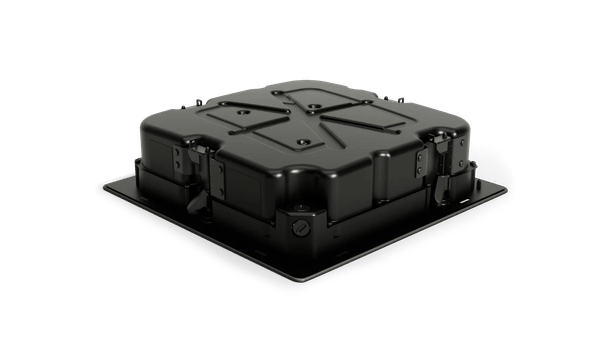

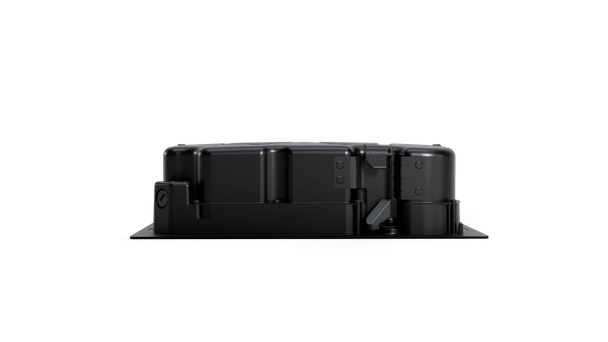

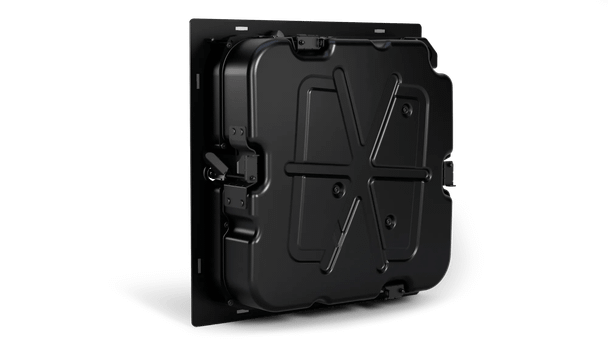

Engineered-plastics front baffle with integrated steel-formed enclosure |
Environmental: |
Indoor only |
Frequency Range (-10 dB): |
45 Hz – 19,000 Hz |
Grille: |

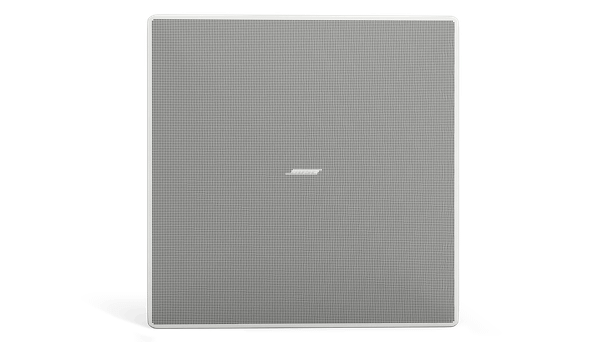

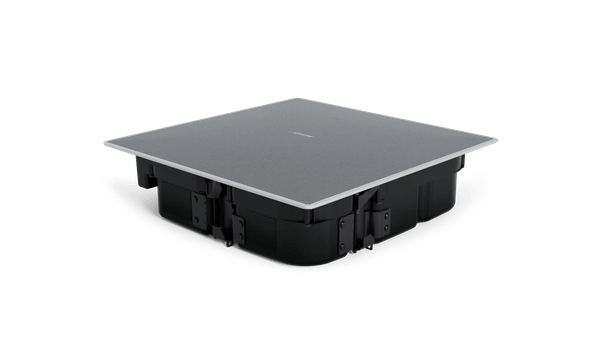

Microperforated steel, powder-coated finish, paintable |
High-Frequency: |
1 × compression driver, 1.3 in (33 mm) voice coil |
Included Items: |
(1) ceiling hole template; (1) installation guide; (1) paint shield; (1) tile bridge |
Low-Frequency: |
1 × 5.25-in (133 mm) woofer, 1.5-in (38 mm) voice coil |
Model: |
EdgeMax EM90-LP White |
Nominal Impedance: |
8 Ω (transformer bypassed) |
Power Handling, Peak: |
128W |
Power Handling, long-term continuous: |
32W |
Product Type: |
In-ceiling loudspeaker |
Recommended Signal Processing: |
Recommended but not required |
Sensitivity (SPL/1 W at 1 m): |
91 dB |
Suspension/Mounting: |
(4) Quickhold spring-loaded mounting arms, (4) safety cable attachment points |
Transformer Taps, 100V: |
8 W, 16 W, 32 W, bypass |
Transformer Taps, 70V: |
4 W, 8 W, 16 W, 32 W, bypass |
Unit of Sale: |
Each |
