Description

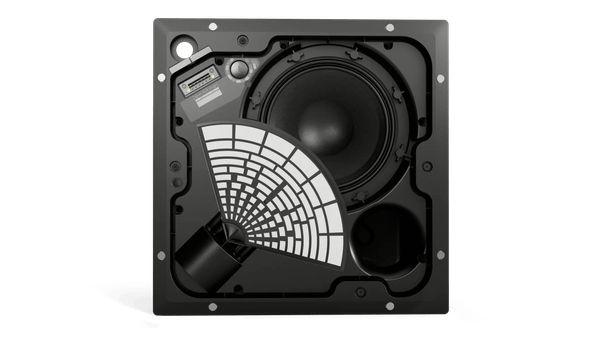

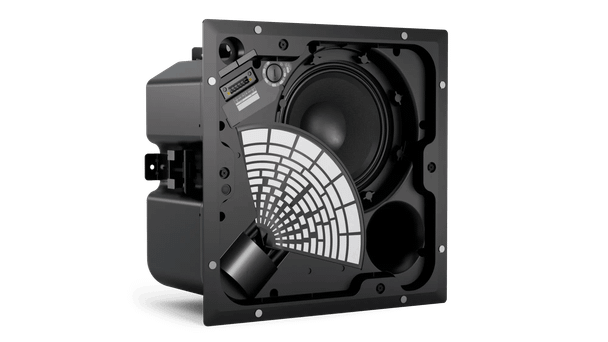

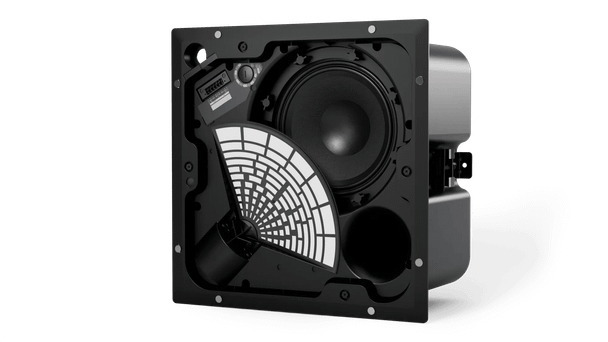

Overview Bose’s EdgeMax series combines the performance of big, bulky surface-mount loudspeakers with stealthy design to shatter the limitations of traditional in-ceiling loudspeakers. Dual drivers and patented PhaseGuide technology allow EdgeMax loudspeakers to project powerful, focused sound from the room’s edges to the center.
Features
- Low-Frequency: 1 × 8 in (203 mm) woofer, 1.5 in (38 mm) voice coil
- High-Frequency: 1 × compression driver, 1.3 in (33 mm) voice coil
- Power Handling, long-term continuous: 125 W
- Frequency Range (-10 dB): 45 Hz – 20,000 Hz
- Coverage, Horizontal: 90°
- High-frequency compression driver and high-excursion woofer for exceptional audio quality and power
- In-ceiling mounting near room edges and corners (75° vertical coverage and 90° horizontal coverage)
Why We Like This
The mounting system is a practical advantage when several speakers need to go into a ceiling on the same installation.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is 8 Ω (transformer bypassed). Transformer settings: Transformer Taps, 100V: 5, 10, 20, 40, 80 W, bypass; Transformer Taps, 70V: 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass.
Q: What ceiling opening is needed?
A: The specified cutout is 13.6 in × 13.6 in × 9.3 in (345 mm × 345 mm × 236 mm), length × width × mounting depth.
Q: Where can this speaker be installed?
A: Indoor only; UL1480A listed, in compliance with UL2043 for plenum-space installation.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
117 dB continuous, 123 dB peak |
Ceiling Cutout: |
13.6 in × 13.6 in × 9.3 in (345 mm × 345 mm × 236 mm), length × width × mounting depth |
Color: |
White |
Coverage, Horizontal: |
90° |
Coverage, Vertical: |
75° |
Crossover: |
1 kHz, passive 2-way crossover with integrated 70/100V transformer |
Driver Protection: |
Recommended high-pass protection 55 Hz with minimum 12-dB/octave filter |
Enclosure Material: |
Engineered-plastics front baffle with integrated steel-formed enclosure |
Environmental: |
Indoor only; UL1480A listed, in compliance with UL2043 for plenum-space installation |
Frequency Range (-10 dB): |
45 Hz – 20,000 Hz |
Grille: |
Microperforated steel, powder-coated finish, paintable |
High-Frequency: |
1 × compression driver, 1.3 in (33 mm) voice coil |
Included Items: |
(1) tile bridge |
Low-Frequency: |
1 × 8 in (203 mm) woofer, 1.5 in (38 mm) voice coil |
Model: |
EdgeMax EM90 In-Ceiling Premium Loudspeaker White |
Nominal Impedance: |
8 Ω (transformer bypassed) |
Power Handling, Peak: |
500 W |
Power Handling, long-term continuous: |
125 W |
Product Type: |
In-ceiling loudspeaker |
Recommended Signal Processing: |
Recommended but not required |
Sensitivity (SPL/1 W at 1 m): |
96 dB |
Suspension/Mounting: |

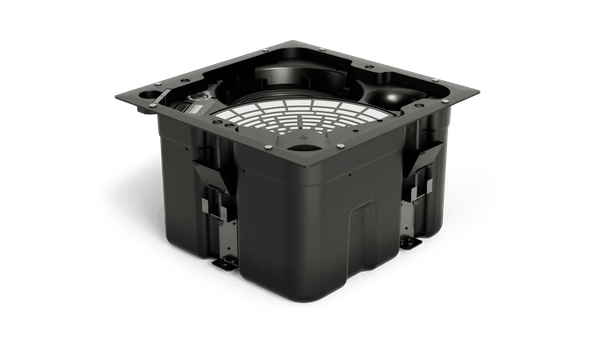

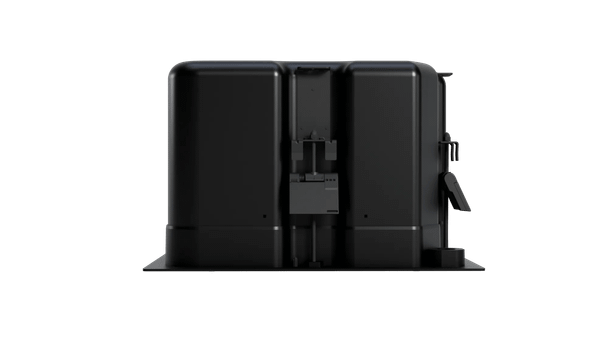

(4) QuickHold spring-loaded mounting arms, (4) M6 safety cable attachment points |
Transformer Taps, 100V: |
5, 10, 20, 40, 80 W, bypass |
Transformer Taps, 70V: |
2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass |
Unit of Sale: |
Each |
