Description

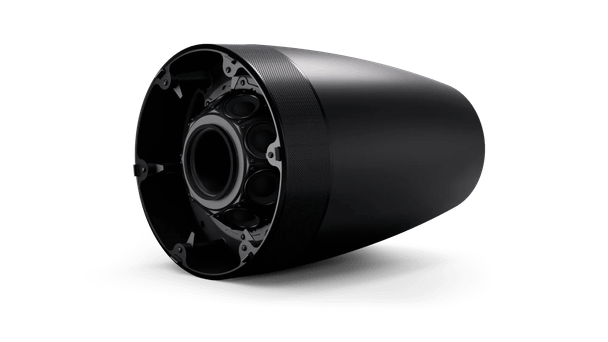

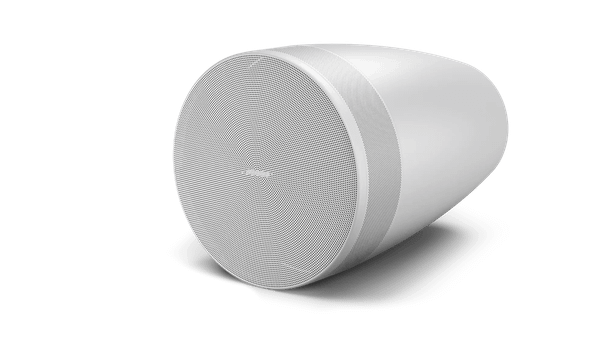

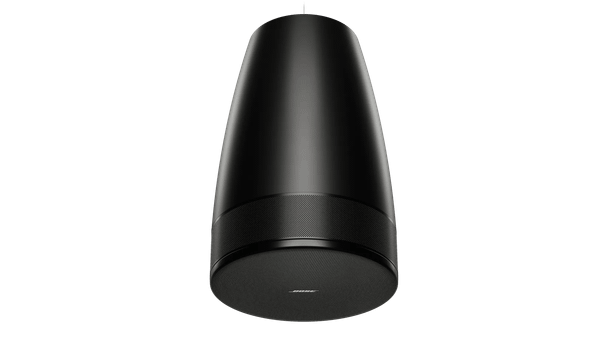

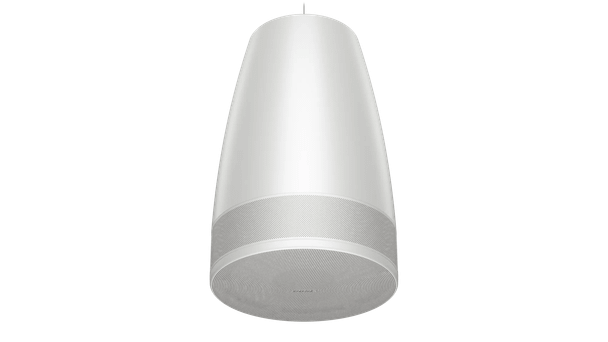

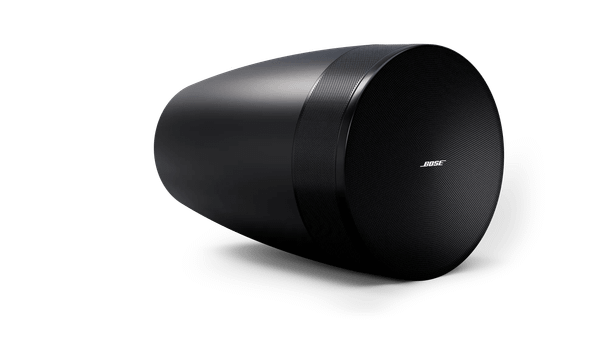

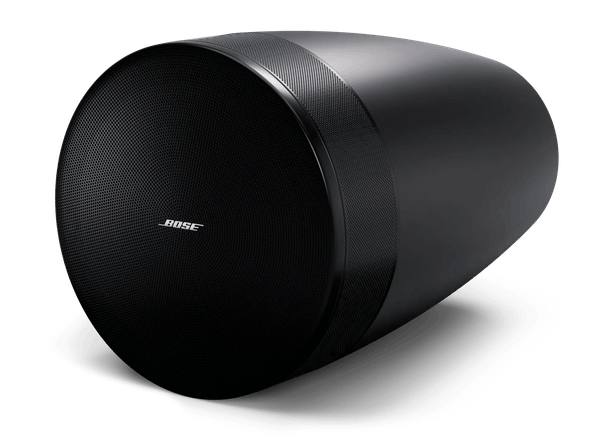

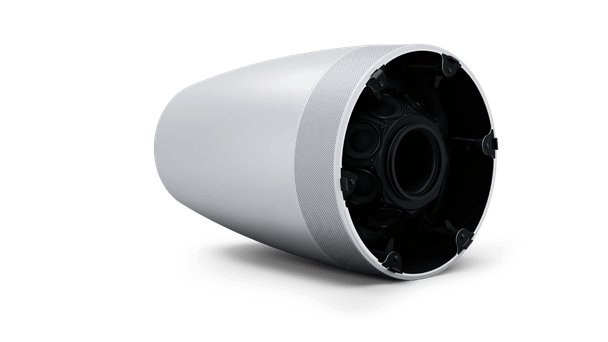

The Bose DesignMax DML88P Luna is a pendant loudspeaker for open-ceiling spaces. Its Ring Array combines eight 2-inch mid-high drivers with an 8-inch woofer, providing 140° coverage for music and speech.
Features
- Low-Frequency: 1 × 8 in (203 mm) woofer
- High-Frequency: 8 × 2.0-in (51 mm) drivers in circular array Low-Frequency
- Power Handling, long-term continuous: 140 W
- Frequency Range (-10 dB): 40 Hz – 20,000 Hz
- Coverage, Horizontal: 140° conical
- Factory-optimized loudspeaker presets when combined with Bose amplifiers and processors
Why We Like This
Wide coverage is useful in open-ceiling rooms where speaker locations must work around lighting and other suspended services.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is 8 Ω (transformer bypass). Transformer settings: Transformer Taps, 100V: 25 W, 50 W, 100 W, bypass; Transformer Taps, 70V: 12 W, 25 W, 50 W, 100 W, bypass.
Q: Where can this speaker be installed?
A: Indoors only; UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant.
Q: What installation items are included?
A: The listed items are (1) DesignMax Luna DML88P; (1) connection panel cover; (1) adjustable suspension cable system; (4) cable ties; (1) installation guide.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
107 dB |
Color: |
Black |
Coverage, Horizontal: |
140° conical |
Enclosure Material: |
Engineered plastics |
Environmental: |
Indoors only; UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant |
Frequency Range (-10 dB): |
40 Hz – 20,000 Hz |
Grille: |
Perforated steel, powder-coated finish, paintable |
High-Frequency: |
8 × 2.0-in (51 mm) drivers in circular array Low-Frequency |
Included Items: |
(1) DesignMax Luna DML88P; (1) connection panel cover; (1) adjustable suspension cable system; (4) cable ties; (1) installation guide |
Low-Frequency: |
1 × 8 in (203 mm) woofer |
Model: |
DesignMax DML88P Black |
Nominal Impedance: |
8 Ω (transformer bypass) |
Power Handling, Peak: |
560 W |
Power Handling, long-term continuous: |
140 W |
Product Type: |
Installation loudspeaker |
Recommended Signal Processing: |
Not required, Bose EQ voicing and SmartBass processing available |
Sensitivity (SPL/1 W at 1 m): |
85 dB |
Suspension/Mounting: |
(1) 3-hole suspension cable attachment point |
Transformer Taps, 100V: |
25 W, 50 W, 100 W, bypass |
Transformer Taps, 70V: |
12 W, 25 W, 50 W, 100 W, bypass |
Unit of Sale: |
Each |
