Description

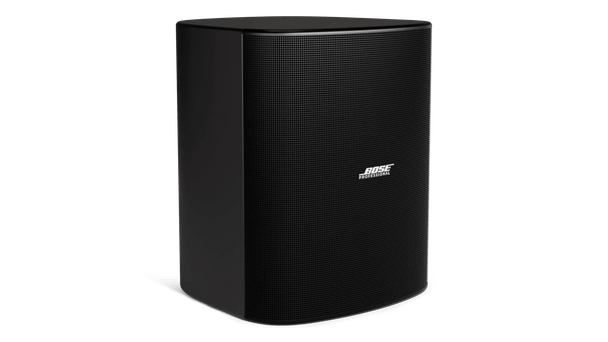

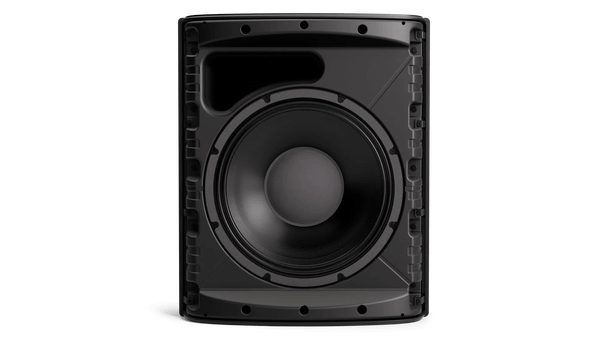

The Bose DesignMax DM12SE is a weatherized, full-range, 12-inch coaxial surface-mount loudspeaker that delivers deep bass and consistent 102° conical coverage. Combining high output, clear intelligibility, and the sleek aesthetic the DesignMax family is known for, it delivers the flexibility integrators need for indoor or outdoor installations in performance, hospitality, worship, and retail spaces.
Features

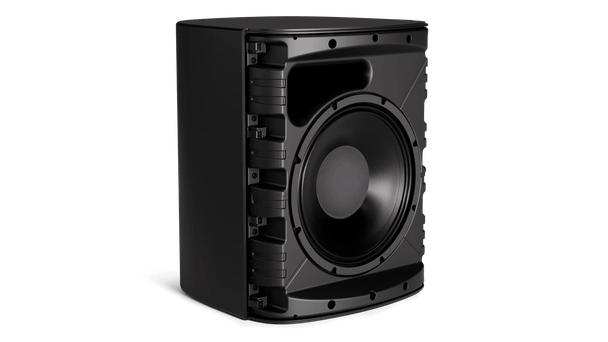

- Low-Frequency: 1 × 12 in (305 mm) woofer, weather-treated
- High-Frequency: 1 × 1.4 in (36 mm) compression driver, 1.0-in (25 mm) exit, coaxial center-firing, weather-treated
- Power Handling, long-term continuous: 300 W
- Frequency Range (-10 dB): 38 Hz – 20,000 Hz
- Coverage, Horizontal: 102° conical
Why We Like This
The outdoor-rated enclosure gives the system designer more placement options for spaces that extend beyond the building.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is 8 Ω.
Q: Where can this speaker be installed?
A: Outdoors or indoors, IP55. Its ingress protection rating is IP55.
Q: What installation items are included?

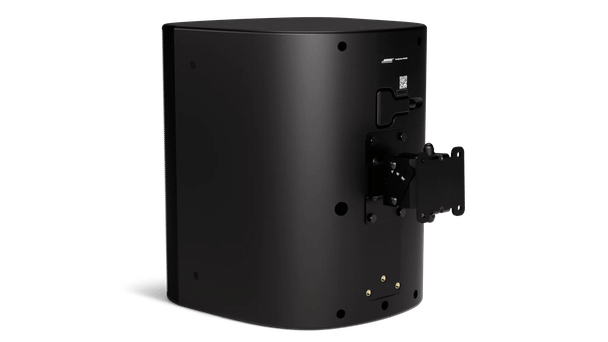

A: The listed items are (1) DesignMax DM12SE; (1) input panel cover; (1) installation guide; (1) Surface-Mount Pan and Tilt Bracket.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
119 dB |
Color: |
Black |
Coverage, Horizontal: |
102° conical |
Coverage, Vertical: |
102° conical |
Driver Protection: |
Recommended High-pass Protection 40 Hz with minimum 12-dB/octave filter |
Enclosure Material: |
Engineered plastics, injection-molded, UV fade-resistant |
Environmental: |
Outdoors or indoors, IP55 |
Frequency Range (-10 dB): |
38 Hz – 20,000 Hz |
Grille: |
Perforated aluminum, powder-coated finish, tamper-resistant design, paintable |
High-Frequency: |
1 × 1.4 in (36 mm) compression driver, 1.0-in (25 mm) exit, coaxial center-firing, weather-treated |
Included Items: |
(1) DesignMax DM12SE; (1) input panel cover; (1) installation guide; (1) Surface-Mount Pan and Tilt Bracket |
Ingress Protection: |
IP55 |
Low-Frequency: |
1 × 12 in (305 mm) woofer, weather-treated |
Model: |
DesignMax DM12SE Black |
Nominal Impedance: |
8 Ω |
Power Handling, Peak: |
1200 W |
Power Handling, long-term continuous: |
300 W |
Product Type: |
Installation loudspeaker |
Recommended Signal Processing: |
Not required, Bose EQ voicing and SmartBass processing available |
Sensitivity (SPL/1 W at 1 m): |
94 dB |

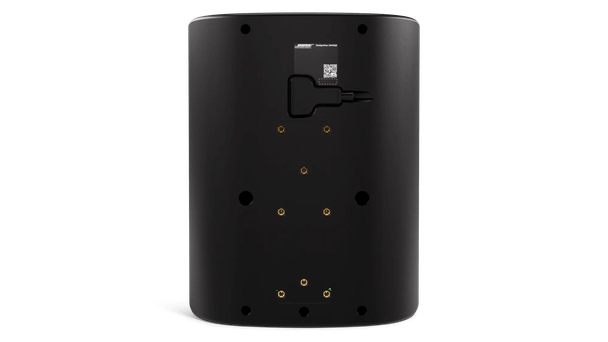

Suspension/Mounting: |
(12) M8 threaded inserts (2 top, 2 side, 8 rear) |
Unit of Sale: |
Each |
