Description

The UVC1-4K captures content from HDMI video sources for seamless importation into PCs and video conferencing software such as Zoom or Teams via USB. It supports HDMI video input resolutions up to 4096×2160p@60 4:4:4, HDR, and 10-bit per channel Deep Color and outputs resolutions up to 3840×2160p@30fps (NV12, I420) or 1920×1080p@60fps (YUY2, P010).

Features

4K HDMI to USB Capture Device
HDMI 2.0 Support - HDMI video input supports resolutions up to 4096×2160p@60 4:4:4, HDR, and 10-bit per channel Deep Color
USB 3.0 Capture - UVC video output supports resolutions up to 3840×2160p@30fps (NV12, I420) or 1920×1080p@60fps (YUY2, P010)
Audio Input Embedded - Audio input support includes analog stereo audio and HDMI embedded audio
Support for Popular OS Platforms - Windows 10 (64-bit), macOS (10.12 or newer)
UVC Software Compatible - Supports Zoom, Teams, WebEx, Skype, Slack, Discord, BlueJeans, GoToMeeting, VLC, and more.
Ideal TPC-TPI-Pro Companion - Works with AMX TPC-TPI-PRO professional in-room presentation management system to enable users to preview and control their presentation and environment from a single, third-party touch panel interface

Why We Like This

We like the UVC1-4K for its installation-focused approach to networked AV, making system expansion and endpoint deployment easier to plan.

FAQs

Q: What does the UVC1-4K do?
A: The UVC1-4K is an AMX hdmi-to-usb capture device for professional AV and control-system installations.

Q: Where is the UVC1-4K typically used?
A: It is intended for installed AV environments such as conference rooms, classrooms, collaboration spaces, control rooms, and other integration projects where its listed function is required.

Q: What connections are provided on the UVC1-4K?

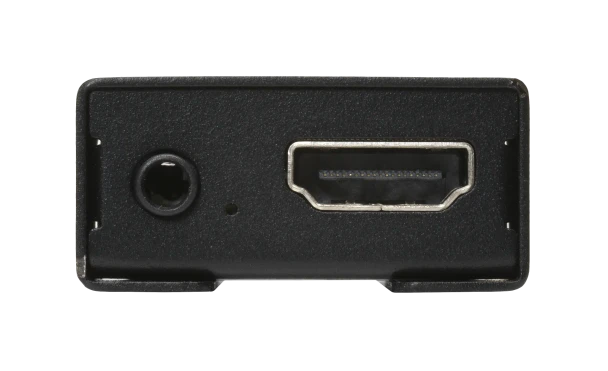

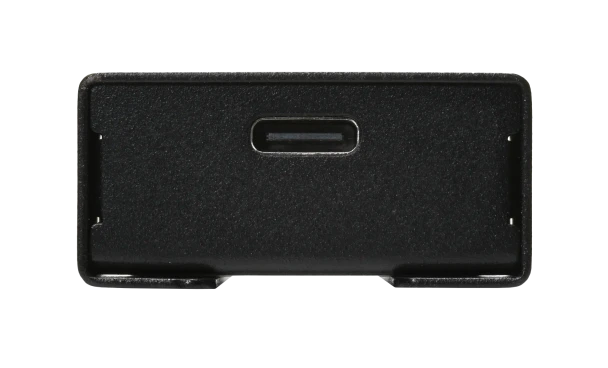

A: The source lists these ports: HDMI Input: (1) HDMI Type A Socket; Analog Stereo Input: (1) 3.5 mm TRS audio jack; USB 3.0: (1) USB Type C Socket.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

Audio Inputs:	HDMI Embedded Audio / 3.5mm Analog Stereo Audio
Brand:	AMX
Dimensions (H x W x D):	0.66" x 1.43" x 3.44" (17 mm x 36.3 mm x 87.3 mm)
Environmental:	Temperature (Operating): 32°F (0°C) to 104°F (40°C) Temperature (Storage): -4°F (-20°C) to 158°F (70°C) Humidity (Operating): 10% to 90% RH (non-condensing) Humidity (Storage): 10% to 90% RH (non-condensing)
FG Numbers:	AMX-UVC1-4K
JITC Status:	Approved - 03/2025
Model:	UVC1-4K
Ports:	HDMI Input: (1) HDMI Type A Socket; Analog Stereo Input: (1) 3.5 mm TRS audio jack; USB 3.0: (1) USB Type C Socket
Product Type:	HDMI-to-USB Capture Device
Regulatory Compliance:	FCC Part 15 Class B EN 55032 EN 55035 RoHS/REACH EMC (Australia) EMC (Canada) EMC (UKCA) Prop65
SKU:	AMX-UVC1-4K
UVC Output Resolution:	4096×2160p@60/50fps and 3840×2160p@60/50fps inputs will be output at 3840×2160p@30fps (NV12, I420) or 1920×1080p@60fps (YUY2, P010) For all inputs below 3840×2160p@30fps, UVC1-4K outputs will match the input resolution
Video Input Resolutions:	Up to 4096×2160p@60fps (4:4:4 10-Bit HDR)
Video Inputs:	(1) HDMI 2.0
Video Outputs:	(1) USB 3.0; supports UVC 1.1
