Description

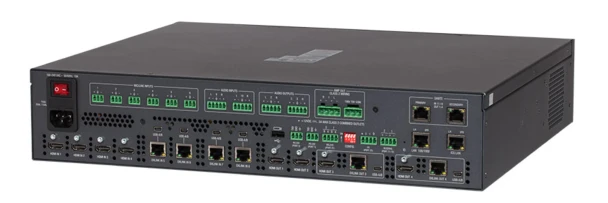

The AMX DVX-3266-4K Enova 8x4+2 All-In-One Presentation Switcher combines 4K60 video switching, audio DSP, amplification, Dante networking, DXLink connectivity, and integrated NX control in a compact 2U platform for medium to large conference rooms, boardrooms, and classrooms.
Features
- 8x4+2 all-in-one presentation switcher with integrated AV routing and control
- Four HDMI inputs and four DXLink 4K60 inputs
- Four HDMI outputs plus two 4K60 DXLink outputs that mirror associated HDMI outputs
- Supports 4K60 4:4:4 video, HDMI 2.0, HDCP 2.2, and HDR
- Integrated 120 W Crown DriveCore amplifier with BSS audio processing and dbx feedback suppression
- Dante and AES67 networked audio support
- Integrated NX-Series controller with isolated ICSLan network
- Built-in endpoint power for DXLink transmitters and receivers
- HTML5 web-based configuration interface and automatic DXLink endpoint binding
- Security features including dual network support, 802.1X, LDAP, Syslog, and FIPS 140-2 validated cryptographic modules
- Compatible with AMX DXLink devices, Enova DGX systems, and standard HDBaseT devices
- JITC approved as of April 2023
Why We Like This
The DVX-3266-4K consolidates video switching, audio processing, networked Dante audio, amplification, and control into one rack-mountable system. That reduces hardware and cabling while giving larger collaboration spaces a flexible 4K60 AV platform with integrated control and enterprise-ready security.
FAQs
Q: How many video inputs and outputs does the AMX DVX-3266-4K have?
A: It has four HDMI inputs and four DXLink 4K60 inputs. It provides four HDMI outputs plus two 4K60 DXLink outputs that mirror their associated HDMI outputs.
Q: Does the DVX-3266-4K support 4K video at 60 Hz?
A: Yes. It supports video from 480p through 3840 x 2160 at 60 Hz with 4:4:4 and 4:2:2 support, plus specified 4:2:0 support for 3840 x 2160p and 4096 x 2160p at 50 or 60 Hz.
Q: Does this presentation switcher include an amplifier?
A: Yes. The DVX-3266-4K includes a 120 W Crown DriveCore amplifier with support for 8-ohm and 70/100 V loudspeaker systems.
Q: Does the AMX DVX-3266-4K support Dante audio?
A: Yes. It supports eight Dante audio input channels and eight Dante audio output channels, along with Dante and AES67 audio networking capabilities.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
AMX |
Model: |
DVX-3266-4K |
FG Numbers: |
AMX-FG1906-0402 (TAA version), FG1906-0401 (non-TAA version) |
Product Type: |
8x4+2 4K60 4:4:4 All-In-One Presentation Switcher |
Video Inputs: |
(4) HDMI, (4) DXLink 4K60 |
Video Outputs: |
(4) HDMI with HDMI/HDCP support, (2) 4K60 DXLink outputs that mirror associated HDMI outputs and support digital video, audio, Ethernet, and bi-directional control |
Video Resolution Support: |
480p up to 3840 x 2160 at 60 Hz with 4:4:4 and 4:2:2 support, including 3840 x 2160p at 50/60 Hz with 4:2:0 and 4096 x 2160p at 50/60 Hz with 4:2:0 |
Audio Inputs: |
(6) Analog Mic/Line, (2) Analog Stereo Audio, (8) Dante Channel |
Audio Outputs: |
(1) Amplifier output for 8-ohm and 70/100 V systems, (2) Analog Stereo Audio, (8) Dante Channel |
Amplifier: |
120 W Crown DriveCore amplifier |
Audio Processing: |
BSS audio processing and dbx feedback suppression |
Networked Audio: |
Dante and AES67 support |
RS-232 Ports: |
(2) 3-position 3.5 mm screw terminal, bi-directional serial ports, 300 to 115,200 baud |
IR/Serial: |
(2) 2-position 3.5 mm screw terminal, 2 IR transmit or 1-way serial ports, supports high-frequency carriers up to 1.142 MHz |
I/O Channels: |
(1) 4-position 3.5 mm screw terminal, 2-channel binary I/O port for contact closure and voltage sensing, includes +12 V DC and GND |
Relays: |
(2) 4-position 3.5 mm screw terminal, (2) single-pole single-throw relays, each relay can switch up to 24 VDC or 28 VAC at 1 A |
Control Platform: |
Integrated NX processor with ICSLan isolated network |
Security Features: |
Dual network support, 802.1X, LDAP integration, Syslog support, encrypted IP communication using FIPS 140-2 validated cryptographic modules |
Compatible Systems: |
AMX DXLink devices, Enova DGX systems, and standard HDBaseT devices |
JITC Status: |
Approved - 04/2023 |
