Description

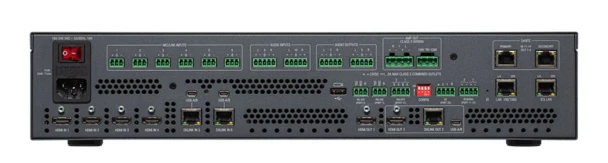

The AMX DVX-2265-4K Enova All-In-One Presentation Switcher combines 4K video switching, audio processing, amplification, control, and network connectivity in a compact 2 RU platform for conference rooms, boardrooms, classrooms, and other professional AV spaces. It supports 4K60 4:4:4 video, HDMI 2.0, HDCP 2.2, HDR, DXLink 4K60, Dante, and AES67 audio workflows.
Features
- 6x2+1 presentation switcher with four HDMI inputs and two DXLink 4K60 inputs.
- Supports 4K60 4:4:4 video, HDMI 2.0, HDCP 2.2, and HDR content.
- Includes two HDMI outputs plus one mirrored 4K60 DXLink output.
- Built-in 120W Crown DriveCore amplifier supports 8-ohm and 70/100V speaker systems.
- Integrated BSS audio processing and dbx feedback suppression.
- Supports Dante and AES67 audio networking.
- Includes an integrated NX controller with dual-network architecture and isolated ICSLan networking.
- Mobile-friendly HTML5 web interface simplifies configuration and commissioning.
- Supports 802.1X, LDAP, Syslog, and FIPS 140-2 validated cryptographic libraries.
- Built-in DXLink endpoint power supports compatible transmitters and receivers.
Why We Like This
The DVX-2265-4K consolidates video switching, audio distribution, amplification, automation control, and network management into one rack-mount unit. That all-in-one design helps reduce hardware count, cabling complexity, setup time, and long-term support needs in professional presentation environments.
FAQs
Q: How many video inputs does the AMX DVX-2265-4K provide?
A: The DVX-2265-4K includes four HDMI inputs and two DXLink 4K60 inputs.
Q: Does the DVX-2265-4K support 4K video?
A: Yes. It supports video resolutions up to 3840 x 2160 at 60 Hz, including 4K60 4:4:4 and 4:2:2 formats.
Q: Does this presentation switcher include an amplifier?
A: Yes. It includes a 120W Crown DriveCore amplifier compatible with 8-ohm and 70/100V speaker systems.
Q: Does the DVX-2265-4K support Dante audio?
A: Yes. It supports Dante and AES67 audio networking with eight Dante input channels and eight Dante output channels.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
AMX |
Model: |
AMX-FG1906-0202 |
Product Type: |
All-In-One Presentation Switcher |
Rack Space: |
2 RU |
Video Inputs: |
(4) HDMI, (2) DXLink 4K60 |
Video Outputs: |
(2) HDMI, (1) 4K60 DXLink mirrored output |
Video Resolution Support: |
480p up to 3840 x 2160 at 60 Hz 4:4:4 and 4:2:2, including 3840 x 2160p at 50/60 Hz 4:2:0 and 4096 x 2160p at 50/60 Hz 4:2:0 |
Video Standards: |
4K60 4:4:4, HDMI 2.0, HDCP 2.2, HDR |
Audio Inputs: |
(6) Analog mic/line, (2) analog stereo audio, (8) Dante channels |
Audio Outputs: |
(1) amplifier output for 8-ohm and 70/100V systems, (2) analog stereo audio, (8) Dante channels |
Amplifier: |
120W Crown DriveCore |
Audio Processing: |
BSS audio processing, dbx feedback suppression |
Audio Networking: |
Dante and AES67 |
RS-232 Ports: |
(2) bi-directional serial ports, 300 to 115,200 baud |
IR/Serial Ports: |
(2) IR transmit / one-way serial ports |
I/O Channels: |
2-channel binary I/O port for contact closure and voltage sensing |
Relays: |
(2) single-pole single-throw relays, up to 24 VDC or 28 VAC at 1 A |
Network Features: |
Dual network support, isolated ICSLan network, 802.1X, LDAP, Syslog, encrypted IP communication, FIPS 140-2 validated cryptographic libraries |
Configuration: |
Mobile-friendly HTML5 web interface |
JITC Status: |
Approved - 04/2023 |
