Description

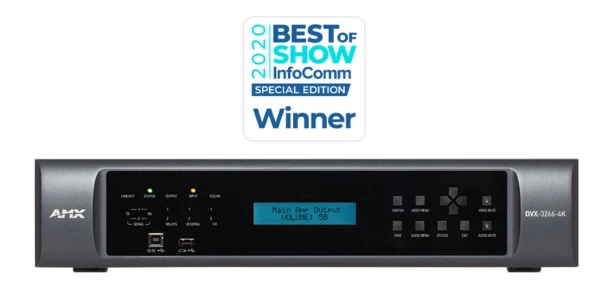

The AMX Enova DVX-2265-4K 6x2 1 All-In-One Presentation Switcher is a unified audio, video, and control device that replaces the need for numerous individual components and eliminates the integration and reliability challenges that accompany them.
This compact 2U presentation switcher features class-leading video quality with support for 4K60 4:4:4 video, HDMI 2.0, HDCP 2.2, and HDR.
The DVX leverages HARMAN’s legendary audio technology. A 120-watt Crown DriveCore amplifier, audio processing by BSS, and the latest dbx feedback suppression work together to ensure that users enjoy the highest quality audio experience.
The DVX-2265-4K is a simple to install, flexible solution, perfectly suited for dramatically simplifying AV control and distribution in small to medium-sized conference rooms, boardrooms, and classrooms. Ease-of-use features include a mobile-friendly HTML5 web interface, automatic binding of DXLink endpoints on the isolated ICSLan network of the NX-Series Integrated Controller, and power on every DXLink input and output. Dante audio inputs and outputs complement analog audio inputs and outputs allowing the DVX to be used in a multitude of situations. The DVX’s DXLink inputs and outputs are compatible with other AMX devices, such as the Enova DGX, as well as standard HDBaseT devices allowing the DVX to be integrated into enterprise-wide designs simply and cleanly.
The integrated NX processor and its secure operating system provide extensive security features including an isolated network we call ICSLan, 802.1X support, LDAP integration with unlimited user-defined groups, syslog support, and support for encrypted IP communication using FIPS 140-2 validated cryptographic modules.
The Enova DVX's all-in-one architecture delivers the lowest Total Cost of Ownership in the industry, thanks to ease of support, maintenance and configuration, as well as reduced hardware and cabling costs.
Features
- 4K60 4:4:4 Support – HDMI 2.0 and HDCP 2.2 Support – HDR – Scaled Outputs – Supports the highest video quality over HDMI and category cable
- Support for HDR10 and 36-bit Deep Color
- Mobile-friendly HTML5 Web Interface with built-in status and troubleshooting features alleviates the need for proprietary configuration software and internal network allows for automatic configuration of endpoints.
- Dante Audio – 8 input channels and 8 output channels of IP audio
- Crown DriveCore Amplifier – 120W per channel stereo at 4/8 ohms 120W mono at 70/100 Volt
- High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables
- Send and receive audio, video, USB 2.0, bi-directional control and Ethernet to DXLink HDMI Receivers and Transmitters up to 100m away over one twisted pair cable
- Controller, matrix switcher, video scaler, audio signal processor, amplifier, plus twisted pair distribution - all in a space-saving 2U chassis
- Replaces the need for numerous individual components and equipment, ensuring high reliability and saving on configuring and programming costs
- With Dual NIC to isolate AMX or third-party AV equipment from the primary network, 802.1X for protected network access, and LDAP integration with unlimited user-defined groups the Enova DVX provides rock-solid security
Tech Specs
Video Inputs: |
(4) HDMI, (4) DXLink 4K60 |
Video Outputs: |
(4) HDMI; supports HDMI/HDCP. (2) 4K60 DXLink; mirrors associated HDMI outputs; supports digital video, audio, Ethernet and bi-directional control |
Audio Inputs: |
(6) Analog Mic/Line, (2) Analog Stereo Audio, (8) Dante Channel |
Audio Outputs: |
(1) Amp (8-Ohm and 70/100V), (2) Analog Stereo Audio, (8) Dante Channel |
RS-232 Port: |
(2) 3-position 3.5mm Screw Terminal 2 bi-directional serial ports 300 -115,200 baud |
IR/Serial: |
(2) 2-position 3.5mm Screw Terminal, 2 IR Transmit / 1-way Serial ports, Support high-frequency carriers up to 1.142 MHz, 2 IR/Serial data signals can be generated simultaneously. |
I/O Channels: |
(1) 4-position 3.5mm Screw Terminal, 2-channel binary I/O port for contact closure with each input being capable of voltage sensing. +12V DC and GND Included on the connector |
Relays: |
(2) 4-position 3.5 mm Screw Terminal, (2) single-pole, single-throw relays, Each relay can switch up to 24 VDC or 28 VAC @ 1 A, Each relay is independently controlled. |
